FAM-65
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Door, Steel and wooden doors, 8-12 toughened glass door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FAIRMAN
-
Model Number:
-
FAM-65
-
Model:
-
FAM-65
-
Material:
-
Pressed Iron
-
Finish:
-
Mirror,Satin
-
Max Door Weight:
-
≤110kg
-
Max Door Width:
-
≤1000mm
-
Feature:
-
Switching for 500,000 times
-
Function:
-
One way open
-
Service:
-
OEM & ODM
-
Color:
-
Black
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Door, Steel and wooden doors, 8-12 toughened glass door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FAIRMAN
-
Model Number:
-
FAM-65
-
Model:
-
FAM-65
-
Material:
-
Pressed Iron
-
Finish:
-
Mirror,Satin
-
Max Door Weight:
-
≤110kg
-
Max Door Width:
-
≤1000mm
-
Feature:
-
Switching for 500,000 times
-
Function:
-
One way open
-
Service:
-
OEM & ODM
-
Color:
-
Black
FAM-65 Automatic Floor Spring Combo Heavy Duty Hotel Gate Self-closing Pressed Iron Glass Door Floor Spring
|
Model
|
FAM-65
|
|
Material
|
Pressed Iron
|
|
Finish
|
Mirror,Satin
|
|
Color
|
Customer Requirements
|
|
Max Door Weight
|
≤110kg
|
|
Max Door Width
|
≤1000mm
|
|
Feature
|
Switching for 500,000 times
|
|
Function
|
One way open
|
|
Application
|
Steel and wooden doors, 8-12 toughened glass door
|
|
Service
|
OEM & ODM
|

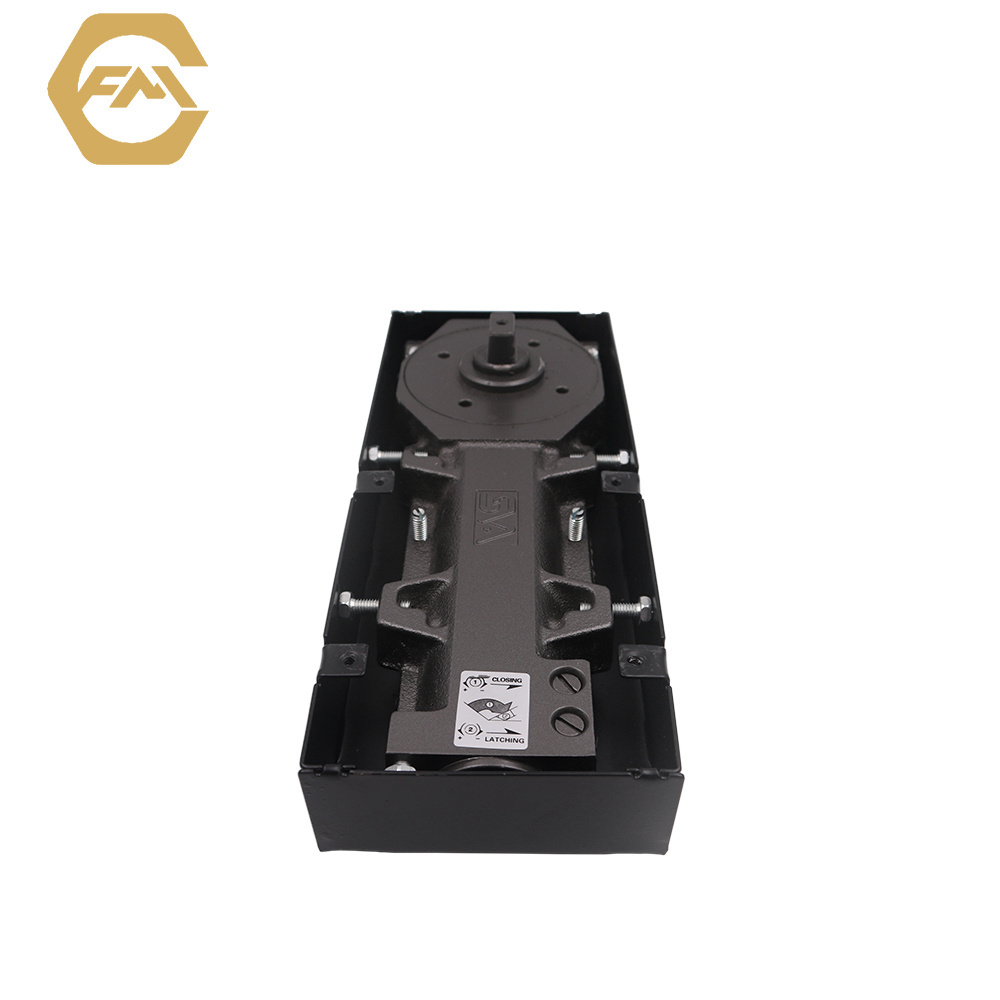

Floor Spring
Material
Floor sprig is equipped with double ball bearings, and the main components are forged with CP-M1 alloy steel.It can be used normally at -40℃ to 40℃ temperature environment.
Cover Plate
The thickness of the thickened cover plate is 1.2mm, and the humanized chamfering design prevents scratching.
Anti-rust Paint
The machine core passes through the advanced automatic spray paint, the antirust paint evenly covers the entire machine core. Not easy to oxidize, increase the service life of the spring.
Installation
The length and width of the cement box can be adjusted by 5mm.When calibrating each one,the installation can be more convenient by adjusting ±2° longitudinally.
Functional description:
1、0 degrees means the door is closed and 90 degrees means the door is positioned.
2、Second stage speed regulation: 90 degrees -15 degrees for the closing stage/15 ° -0 ° is the latching stage
Installation steps of ground spring:
A.
Draw lines to coincide the center of the rotating shaft of the floor spring with the rotating shaft of the door.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
1、Q：How are the qualities about the products?
A：Our products are through rigorous workmanship, multi-layer screening inspection, and the third party certification, product quality can be assured.
2、Q：Where is your company?
A：Foshan TaoLang Trading CO., LTD is located in Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province, China.We specialize in the production of Patch Fittings,Sliding Barn Door Hardware,Door Handle,Glass Door Lock,Bathroom Hardware,Shower Hinge, Sliding Door Accessories series.If you want to visit our company, you can contact our business manager.
3、Q：How long is the delivery period of your company?
A：Under normal conditions,the delivery period of the conventional products, such as floor spring,barn door hardware,shower hinge, glass clamp,is 7-15 working days.
4、Q：Can you provide your certifications?
A： We can provide you with the certificates you need for most products. Please tell us the specific product model and certificate type.
5、Q：What are your company of payment?
A：T/T , L/C , Alibaba trade assurance etc.30% deposit in advance, 70% balance before shipment.
6、Q：Can your company provide free samples?
A：Some products like shower hinge,glass clamp,glass door lock,can provide 1-2 samples for free.Some bulky products do not provide samples.
7、Q：What services can you supply?
A：We have our brand products and provide OEM & ODM services.
8、Q：What’s the minimum order?
A：Regular products are accepted by sample order. 1 piece is available for the regular color, such as polished color or satin color.
