1) Precision hydraulic synchronous template adjusting system.
2) Optimal design of high-strength, precision clamping unit.
3) Large screen, high precision machine computer system.
4) Optimized electric system.
5) Balanced type of double whole transfer oil cylinder.
6) Large torque oil motor.
7) High abrasion-resistant alloy sliding block.
8) The integrate type of detachable oil tank, magnetic filter and bypass strainer.
9) Reasonable and high efficient lubrication system.
10) Modularized energy conservation, high response oil-way system.
- Product Details
- {{item.text}}
Quick Details
-
Mold Height(mm):
-
200 - 530 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
530 cm³
-
Injection Rate (g/s):
-
172 g/s
-
Injection Weight (g):
-
540 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
52 mm
-
Screw L/D Ratio:
-
18.4
-
Distance between Tie Bars:
-
520*520
-
Weight (KG):
-
6800
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
OST-2300
-
Brand Name:
-
ostar
-
Power (kW):
-
18.5 kW
-
Clamping force:
-
2300KN
-
Tie bar space:
-
520X520mm
-
Injection weight:
-
411-540g
-
opening stoke:
-
500mm
-
Screw Diameter:
-
48mm, 52mm, 55mm
-
Voltage:
-
customed avaiable
-
Machine weight:
-
6.8tons
-
Machine colour:
-
customed avaiable
-
Name:
-
pipe fitting making machine
-
Certification:
-
ISO
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
520mm
-
Distance between Tie Bars(Height)(mm):
-
520mm
-
Plasticizing Capacity(g/s):
-
155
-
Mold Height(mm):
-
200 - 530 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
530 cm³
-
Injection Rate (g/s):
-
172 g/s
-
Injection Weight (g):
-
540 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
52 mm
-
Screw L/D Ratio:
-
18.4
-
Distance between Tie Bars:
-
520*520
-
Weight (KG):
-
6800
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
OST-2300
-
Brand Name:
-
ostar
-
Power (kW):
-
18.5 kW
-
Clamping force:
-
2300KN
-
Tie bar space:
-
520X520mm
-
Injection weight:
-
411-540g
-
opening stoke:
-
500mm
-
Screw Diameter:
-
48mm, 52mm, 55mm
-
Voltage:
-
customed avaiable
-
Machine weight:
-
6.8tons
-
Machine colour:
-
customed avaiable
-
Name:
-
pipe fitting making machine
-
Certification:
-
ISO
Machine Introduction

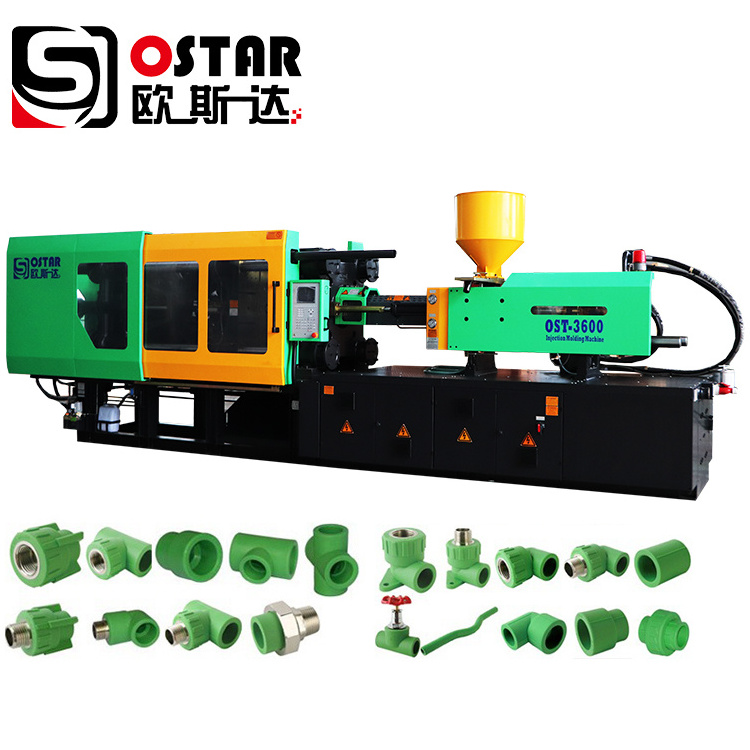

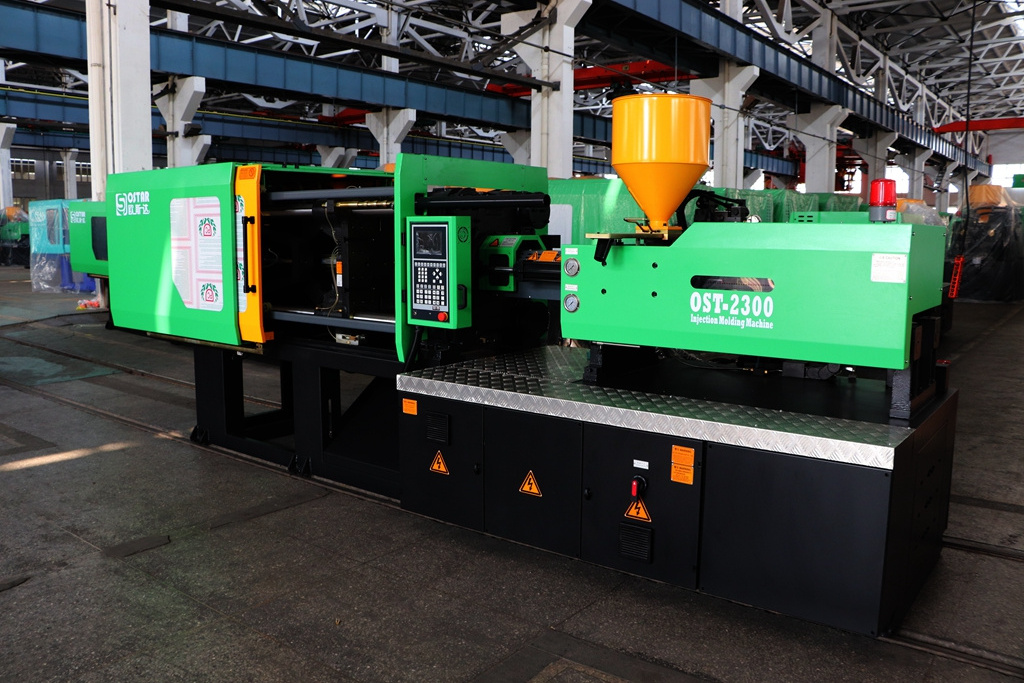

Plastic Injection molding machine 230T

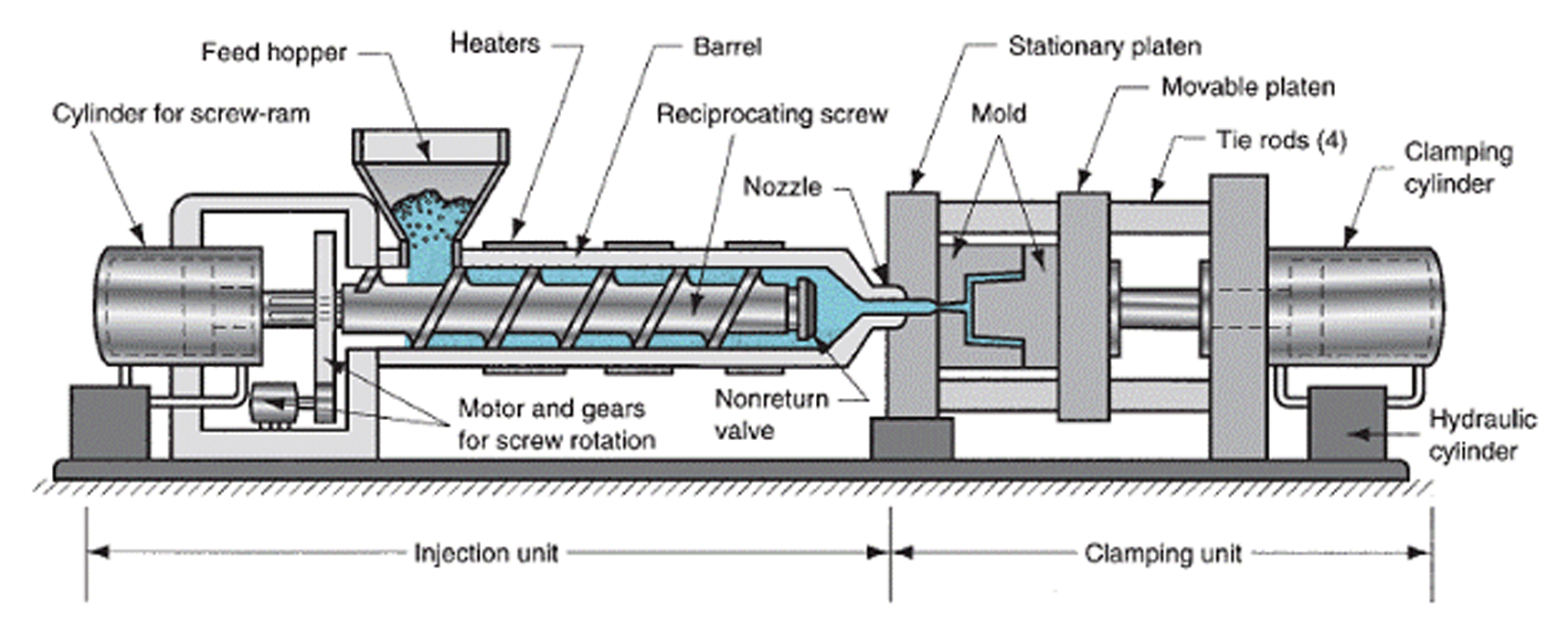

Injection Unit

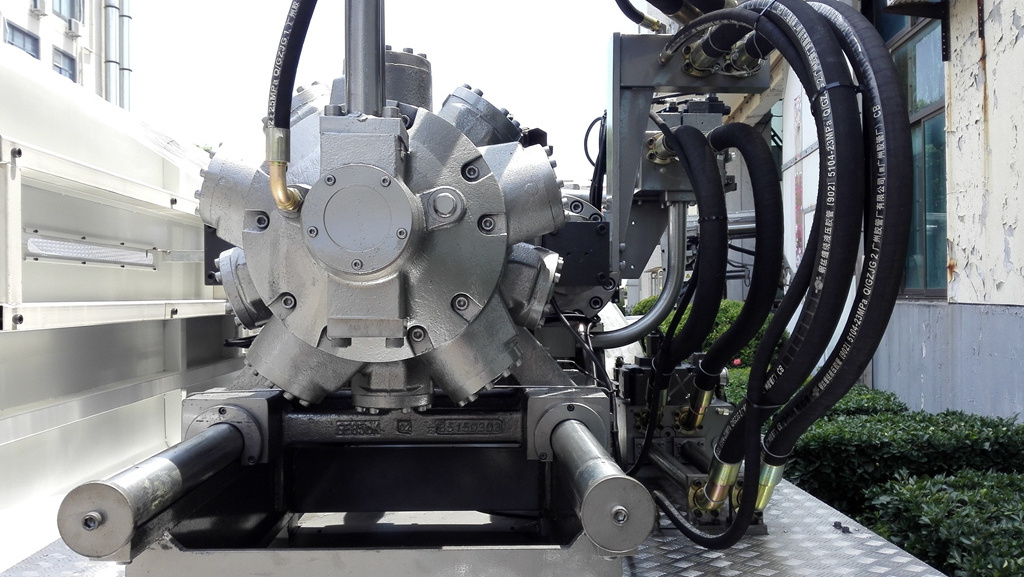

Large Torque hydraulic motor, for high efficiency raw material plasticizing
Clamping Unit

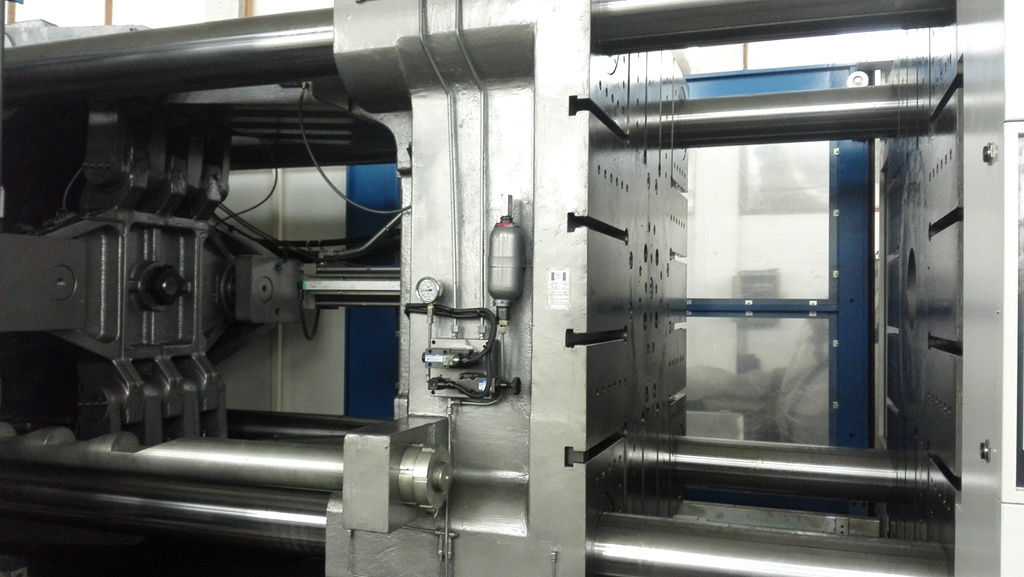

adopt finite element design with higher strength and more precise operation
Controller Unit
Professional injection molding machine controller, high precision, high respond, high
stabilization.
Electrical Unit
Optimal electrical parts, imported international brands, stable control, long service life.
Hydraulic Unit
Highly response oil way system, impove the machine speed and also save energy comsumption.
Machine Paramenters
|
MACHINE MODEL
|
UNIT
|
OST-2000
|
|
|
||||
|
INJECTION DEVICE
|
|
|
|
|
||||
|
SCREW DIAMETER
|
MM
|
48
|
52
|
55
|
||||
|
SCREW DOAMETER RATIO
|
L/D
|
21.1
|
19.5
|
18.4
|
||||
|
THEORETICAL SHOT VOLUME
|
CM3
|
452
|
530
|
593
|
||||
|
INJECTION WEIGHT ( PS)
|
G
|
411
|
482
|
540
|
||||
|
INJECTION RATE ( PS)
|
G/S
|
146
|
172
|
192
|
||||
|
INJECTION PRESSURE
|
MPA
|
182
|
155
|
138
|
||||
|
PLASTICIZING CAPACITY( PS)
|
G/S
|
24
|
27
|
30
|
||||
|
SCREW SPEED
|
RPM
|
180
|
|
|
||||
|
CLAMPING UNIT
|
|
|
|
|
||||
|
CLAMPING FORCE
|
KN
|
2300
|
|
|
||||
|
TOGGLE STROKE
|
MM
|
500
|
|
|
||||
|
SPACE BETWEEN TIE-BARS
|
MM
|
520X520
|
|
|
||||
|
MIN-MAX MOULD THICKNESS
|
MM
|
200-530
|
|
|
||||
|
EJETION STROKE
|
MM
|
140
|
|
|
||||
|
EJECTING FORCE
|
KN
|
70
|
|
|
||||
|
EJECTOR NUMBER
|
PC
|
5
|
|
|
||||
|
OTHERS
|
|
|
|
|
||||
|
MAXIMUM SYSTEM PRESSURE
|
MPA
|
16
|
|
|
||||
|
OIL PUMP MOTOR POWER
|
KW
|
18.5( 22)
|
|
|
||||
|
HEATER POWER
|
KW
|
14.5
|
|
|
||||
|
OIL TANK CAPACITY
|
KG
|
300
|
|
|
||||
|
OVERALL DIMENSION (ROUGH )
|
MM
|
5540X1480
X2160
|
|
|
||||
|
MACHINE WEIGHT ( ROUGH )
|
TON
|
6.8
|
|
|
||||
Company Introduction
About Us
Our company was founded in 1995, more than 15 years experience on plastic injection molding machine manufacturing&exporting. we
have own machine compoent processing workshop, R&D team, experienced machine assembly workers. machine inspection and
after-service department. we supply machine from 30tons to 2000tons, for different customer choose. We are not only win by
machine price, but also win by machine quality and service. we sure our machine would make you happy and benefit if you choose us.
have own machine compoent processing workshop, R&D team, experienced machine assembly workers. machine inspection and
after-service department. we supply machine from 30tons to 2000tons, for different customer choose. We are not only win by
machine price, but also win by machine quality and service. we sure our machine would make you happy and benefit if you choose us.
Why Choose Us
We have own machine design department, for new machine design, and each machine component are process in our own workshop, to make
sure strictly quality control. inspection team would check every machine before shipment, keep every machine in good condition
sure strictly quality control. inspection team would check every machine before shipment, keep every machine in good condition
Shipment
We are experience on machine loading and ocean shippment. we use strong belt to fix the machine, make sure no any movement during long time shippment.
Machines good protected with anti-rust.
Customer Photos
We provide ovesea services, after machine arrive your factory, our engineer would come to you, to help you install and star the machines, training your workers, to start everything.
