Quick Details
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1690 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tandy
-
Voltage:
-
208~415V
-
Dimension(L*W*H):
-
1730x1590x1380
-
Power (kW):
-
11 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Spice powder paddle mixer
-
Other name:
-
Flour double blade blending machine
-
Coefficient:
-
0.6-0.8
-
Keyword:
-
Powder Blender
-
Function:
-
Homogenzing
-
Application scope:
-
Food Ingredient
-
Usage:
-
Food Industry
-
Stirrer type:
-
Scraper
Quick Details
-
Barrel Volume (L):
-
1180 L
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
20 - 60 r.p.m
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1690 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tandy
-
Voltage:
-
208~415V
-
Dimension(L*W*H):
-
1730x1590x1380
-
Power (kW):
-
11 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Spice powder paddle mixer
-
Other name:
-
Flour double blade blending machine
-
Coefficient:
-
0.6-0.8
-
Keyword:
-
Powder Blender
-
Function:
-
Homogenzing
-
Application scope:
-
Food Ingredient
-
Usage:
-
Food Industry
-
Stirrer type:
-
Scraper
Spice powder agitation double paddle mixer/Coffee bean paddle mixing machine /Flour blade blending machine
Features of powder double paddle mixer :
Double shaft paddle mixer is called no gravity mixer , too; it is widely applied in mixing powder and powder, granular and granular, granular and powder, and few liquid; it is used for food, chemical, pesticide, feeding stuff, and battery ect. It is high precision mixing equipment and adapts to mixing; it is evenly mixing on materials with gravity, proportion, particle size different. It makes part fragmentation with adding fragmentation equipment. The mixer quality can be from 316L, 304, 201, carbon steel, ect.

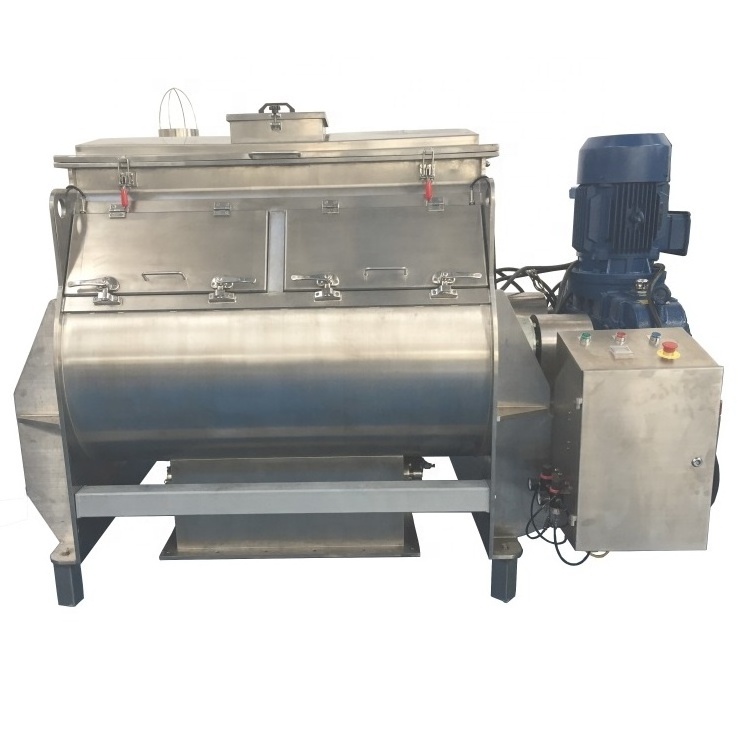

Picture of powder double paddle mixer :
Principle of working:
1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;
2. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.
Reference paramete of double paddle mixer :
|
Model no. |
Effective Volume(L) |
Loading coefficient |
Power(KW) |
Rotation speed(r/min) |
Dimension (mm) |
Weight(kg) |
|
TDW-300 |
300 |
4 |
53 |
1330X1130X1030 |
560 |
|
|
TDW-500 |
500 |
0.6-0.8 |
7.5 |
53 |
1480X1350X1220 |
810 |
|
TDW-1000 |
1000 |
0.6-0.8 |
11 |
45 |
1730X1590X1380 |
1230 |
|
TDW-1500 |
1500 |
0.6-0.8 |
15 |
45 |
2030X1740X1480 |
1680 |
|
TDW-2000 |
2000 |
0.6-0.8 |
18.5 |
39 |
2120X2000X1630 |
2390 |
|
TDW-3000 |
3000 |
0.6-0.8 |
22 |
31 |
2420X2300X1780 |
3320 |
|
Pls feel free to contact us if you need more technical parameters! |
||||||
