Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV
-
Size:
-
1.5 2.5 4 6 10 16 25 35 50 185 240 500-1000
-
Product Name:
-

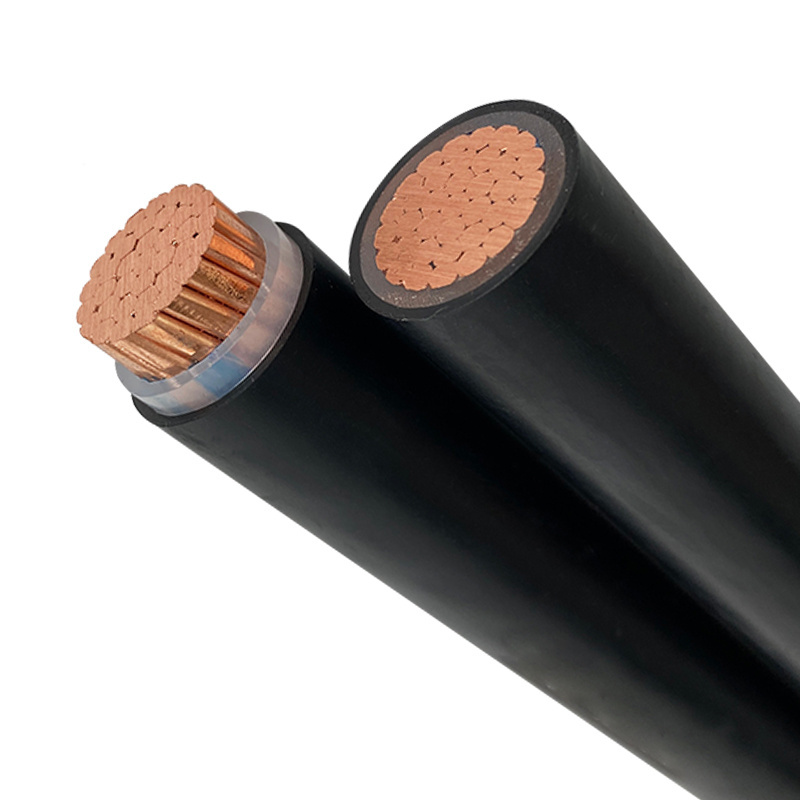

single core copper cable 50mm2 70mm2 95mm 400mm electrical cable
-
Conductor:
-
Copper
-
Insulation:
-
XLPE
-
Cores:
-
1~5
-
Sheath material:
-
PVC
-
Rated Voltage:
-
600V 1000V 1.8kV 3.6kV
-
Usage:
-
Electricity Distribution Lines
-
Armour:
-
SWA STA AWA ATA
-
Standard:
-
BS IEC ASTM DIN
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV
-
Size:
-
1.5 2.5 4 6 10 16 25 35 50 185 240 500-1000
-
Product Name:
-
single core copper cable 50mm2 70mm2 95mm 400mm electrical cable
-
Conductor:
-
Copper
-
Insulation:
-
XLPE
-
Cores:
-
1~5
-
Sheath material:
-
PVC
-
Rated Voltage:
-
600V 1000V 1.8kV 3.6kV
-
Usage:
-
Electricity Distribution Lines
-
Armour:
-
SWA STA AWA ATA
-
Standard:
-
BS IEC ASTM DIN
Product Description
WUXI JIANGNAN CABLE Co.,Ltd.
More than 37 years knowledge in cables industry, we supply reliable cables world widely including control cables, building wire,electric wire, power cable, control cable, flexible cable, screen cable, armoured cable, LSZH cable. We can supply the cables according to the standard of BS, AS/NZS and IEC.
Specification
|
Low voltage class and thickness (copper, aluminum conductor)
|
|
|
||
|
Nominal cross-sectional area of conductor mm²
|
Nominal insulation thickness(XLPE Insated)
|
|
||
|
|
0.6/1(1.2)kV
|
1.8/3(3.6)kV
|
||
|
1.5,2.5
|
0.7
|
-
|
||
|
4,6
|
0.7
|
-
|
||
|
10,16
|
0.7
|
2.0
|
||
|
25,35
|
0.9
|
2.0
|
||
|
50
|
1.0
|
2.0
|
||
|
70,95
|
1.1
|
2.0
|
||
|
120
|
1.2
|
2.0
|
||
|
150
|
1.4
|
2.0
|
||
|
185
|
1.6
|
2.0
|
||
|
240
|
1.7
|
2.0
|
||
|
300
|
1.8
|
2.0
|
||
|
400
|
2.0
|
2.0
|
||
|
500
|
2.2
|
2.2
|
||
|
630
|
2.4
|
2.4
|
||
|
800
|
2.6
|
2.6
|
||
|
1000
|
2.8
|
2.8
|
||
