Quick Details
-
Color Temperature(CCT):
-
2700-6500K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Efficiency(lm/w):
-
95-100
-
Lamp Luminous Flux(lm):
-
950-1000lm/m
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
0.18
-
LED Type:
-
COB LED
-
Power per meter:
-
10W
-
Voltage:
-
DC12V/DC24V
-
LEDs Qty:
-
480 Chips/m
-
PCB Width:
-
8mm
-
Cuttable Length:
-
25mm(12V); 50mm(24V)
-
Beam Angle:
-
120 Degrees
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RAYMATES
-
Model Number:
-
RM-COBW480-8V12/24
-
Color Temperature(CCT):
-
2700-6500K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Efficiency(lm/w):
-
95-100
-
Lamp Luminous Flux(lm):
-
950-1000lm/m
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
0.18
-
LED Type:
-
COB LED
-
Power per meter:
-
10W
-
Voltage:
-
DC12V/DC24V
-
LEDs Qty:
-
480 Chips/m
-
PCB Width:
-
8mm
-
Cuttable Length:
-
25mm(12V); 50mm(24V)
-
Beam Angle:
-
120 Degrees
|
Model No.
|
RM-COBW480-8V12/24
|
|
LED Type
|
COB
|
|
LEDs Qty
|
480 Chips/m
|
|
Voltage
|
24VDC or 12VDC
|
|
Color Temperature
|
2700K-6500K
|
|
Wattage
|
10W/m; 13W/m
|
|
CRI
|
>90
|
|
Luminous Flux
|
950-1000lm/m
|
|
Beam Angle
|
180°
|
|
Waterproof Level
|
IP20/IP65H/IP67/IP68/IP68E
|
|
PCB Thickness
|
2 Ounces
|
|
Dimension
|
W8*L5,000mm or L10,000mm
|

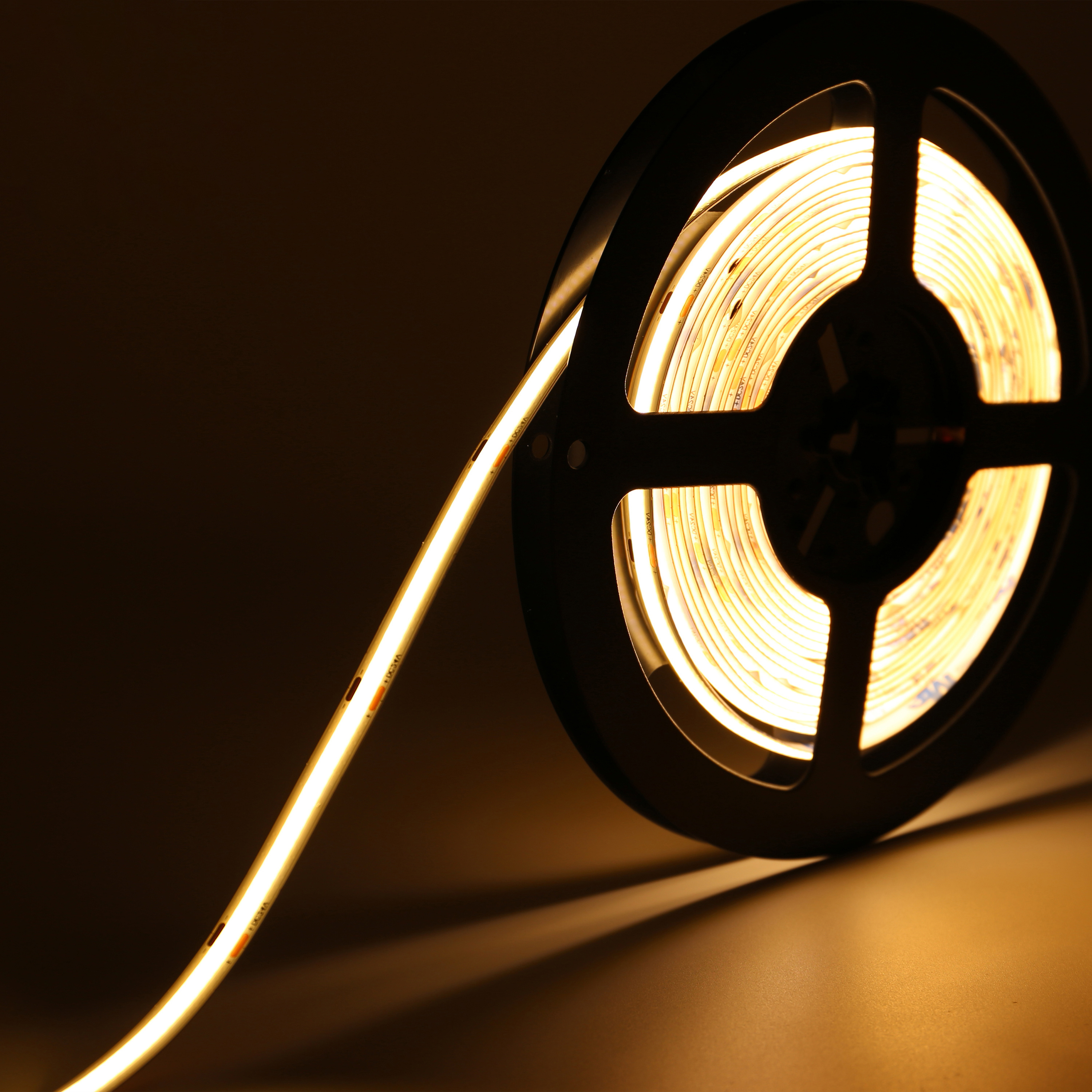

COB light strip definition
The LED COB Strip's full name: Chip-On-Board, which is a production technology the low-power chips are directly encapsulated on the PCB board. Fastest heat dissipation.
The T
raditional
SMD LED Strip is made of chips on the frame and made into SMD. Then put the LEDs on the PCB board. COB tape light saves lots of costs and space on the PCB.
For example, SMD 2110 strip light can hold a maximum of 700 LEDs per meter. However, the COB led strip can hold 1056 chips or more. And because the cost of mounting the Chip on the frame is saved, the price of the COB led strip is much Cheaper than the same number of led strips.
Advantages
1, Flip-chip, new technology against traditional strip.
2,
High density LEDs, no darkness.
3, Beam angle 180°, homogeneous illumination.
3, Beam angle 180°, homogeneous illumination.
4, Extremely flexible, bending diameter >10mm.
5, Excellent heat dissipation.
5, Excellent heat dissipation.
Comparison on COB & SMD Strip
