Quick Details
-
Voltage:
-
3-phase/400V(±20%)
-
Current:
-
48-72A
-
Rated Capacity:
-
40KW
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
622*283*350mm
-
Use:
-
brazing air conditioners,copper pipe joints
-
Product name:
-
handheld induction brazing machine
-
Application:
-
brazing air conditioners,copper pipe joints
-
Advantage:
-
Easy to operate, small size, low weight
-
Type:
-
Semi Automatic
-
Certification:
-
ISO CE
-
Cooling system:
-
water cooling
-
Control:
-
digital control
-
Heating method:
-
IGBT induction heating
-
Design:
-
modular design
-
Function:
-
metal heat treatment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DQAUTO
-
Weight (KG):
-
38
-
Voltage:
-
3-phase/400V(±20%)
-
Current:
-
48-72A
-
Rated Capacity:
-
40KW
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
622*283*350mm
-
Use:
-
brazing air conditioners,copper pipe joints
-
Product name:
-
handheld induction brazing machine
-
Application:
-
brazing air conditioners,copper pipe joints
-
Advantage:
-
Easy to operate, small size, low weight
-
Type:
-
Semi Automatic
-
Certification:
-
ISO CE
-
Cooling system:
-
water cooling
-
Control:
-
digital control
-
Heating method:
-
IGBT induction heating
-
Design:
-
modular design
-
Function:
-
metal heat treatment

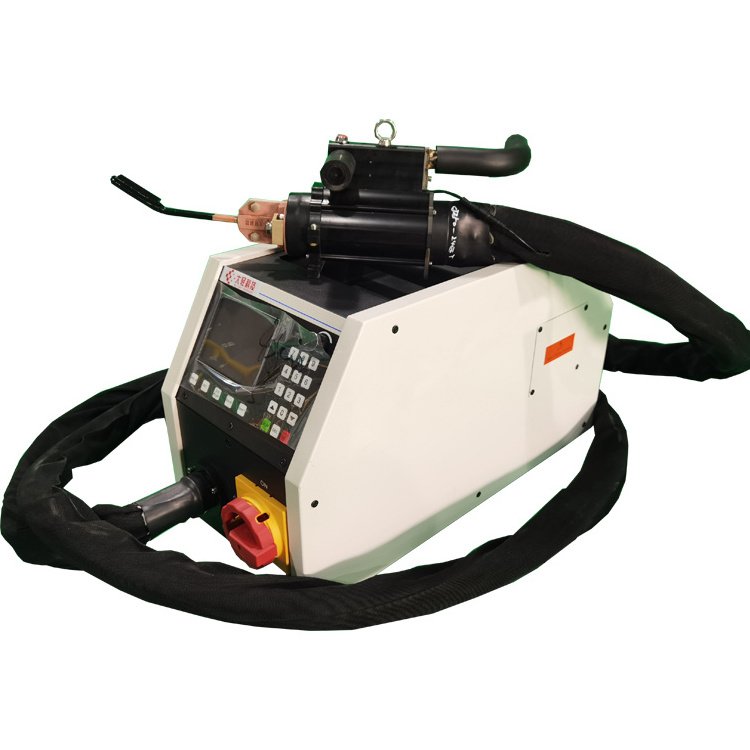

Hot sale 40KW portable handheld digital induction brazing machine with soft cable
|
Specifications and technical parameters
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
FD-M10
|
FD-M20
|
FD-M30
|
FD-M40
|
FD-M50
|
FD-M60
|
|||||||
|
Input
|
Input
|
3-phase/400V(±20%) 50-60Hz
|
|
|
|
|
|
|||||||
|
|
Power
|
10KVA
|
20KVA
|
30KVA
|
40KVA
|
50KVA
|
60KVA
|
|||||||
|
|
Current
|
12-18A
|
24-36A
|
36-54A
|
48-72A
|
60-90A
|
72-108A
|
|||||||
|
Output
|
Power
|
8KW
|
16KW
|
24KW
|
32KW
|
40KW
|
48KW
|
|||||||
|
|
Duty cycle
|
100%
|
|
|
|
|
|
|||||||
|
|
Frequency
|
10-40KHz
|
|
|
|
|
|
|||||||
|
Cooling system
|
Water pressure
|
4~6 bar
|
|
|
|
|
|
|||||||
|
|
Flow rate
|
≥12L/min
|
|
|
|
≥25L/min
|
|
|||||||
|
|
Water quality
|
PH:7.0-9.0
|
|
|
|
|
|
|||||||
|
|
Cooling capacity
|
≥4.5KW
|
≥9KW
|
≥13.5KW
|
≥18KW
|
≥22.5KW
|
≥27KW
|
|||||||
|
|
Water temperauture
|
25~35℃
|
|
|
|
|
|
|||||||
|
Generator
|
Size
|
622*283*350mm
|
|
|
|
|
|
|||||||
|
|
Weight
|
32kg
|
|
|
33.5kg
|
|
37kg
|
|||||||
|
Coaxial
|
HHT weight
|
1.5kg
|
|
|
3kg
|
|
6.5kg
|
|||||||
Advantages of handheld induction welding machine:
Small size, compact structure, both fixed and mobile. This is a new design and a completely new induction heating system. By integrating the frequency converter and coolant system into a single housing, it is used in a wide variety of applications, providing maximum flexibility for heating tasks in small space. It makes induction brazing, annealing, quenching, coating and stripping much easier. And our company can provide devices in different powers and specifications.
Pre-sale service:
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
After-sale service:
1. Technical support, or alternative accessories if necessary.
2. Freely guide installation, commissioning and test run.
3. One year’s warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
As for packaging:
1. Pack the induction heating machine with wrapping film for waterproof;
2. Put it into a standard exporting plywood or wooden case;
3. Put foam around it for shockproof;
4. Fasten the case with nails.
As for shipping:
1. If you have a shipper in China, we can send the induction heating machine to him or her for free.
2. If you want us to send the induction heating machine to you directly, we can send it to any main port of China promptly.
1. Why tell us the details of your work piece first?
We need to select the type of equipment and customize the induction heating machine according to the condition of your work piece.
2. What work piece information we need to know?
Induction heat treatment
①material ②drawing ③size(diameter,length) ④temperature ⑤ work speed ⑥quenching depth ⑦other heating request
①material ②drawing ③size(diameter,length) ④temperature ⑤ work speed ⑥quenching depth ⑦other heating request
Induction forging
①material ②size(diameter,length or length,width,height) ③temperature ④work speed ⑤other heating request
①material ②size(diameter,length or length,width,height) ③temperature ④work speed ⑤other heating request
Induction brazing
①material ②size ③solder ④temperature ⑤work speed ⑥other heating request
①material ②size ③solder ④temperature ⑤work speed ⑥other heating request
Induction melting
①material ②melting quantity ③temperature ④heating time
If you are interested in our products, please feel free to contact us. We will offer you the best products and service.
