Products Description

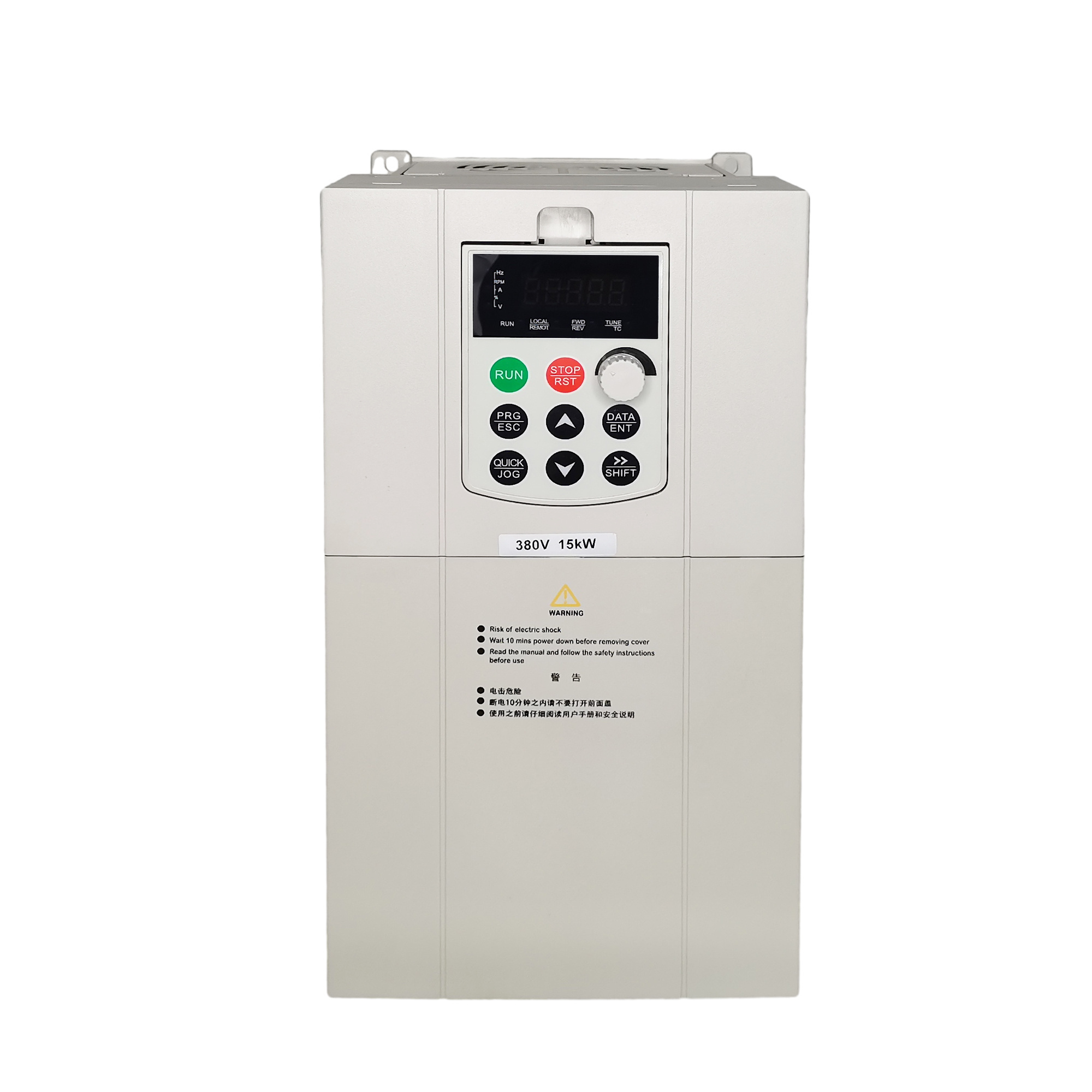

Safesav SN160MN series
A general-purpose frequency inverter with the following features:
*to control asynchronous AC induction Motors.
*space voltage vector control technology and DSP control system
*
V/F control, sensorless vector control
*Automatic torque boost and slip compensation
*Starting at 0.5Hz with 150% torque
*speed accuracy <0.5%
* voltage range
200V - 460V
*1EC 61800-3:C3 standard
*The circuit board coated with conformal coating to resist dust, heat, moisture and corrosion, etc.
General Specifications
|
Display and function keys
|
|
|
|
|
||||
|
Keyboard
|
Standard detachable keyboard
|
|
|
|
||||
|
LED display
|
Display parameters
|
|
|
|
||||
|
key lock and
function selection
|
Part or all of the keys can be locked, and the scope of action of some keys can be defined to prevent misoperation
|
|
|
|
||||
|
Protective function
|
Power-on motor short circuit detection, output phase loss protection, overcurrent protection, overvoltage protection, undervoltage
protection, overheat protection, overload protection, etc. |
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Storage
|
environment -20°C ~ 60°C
|
|
|
|
||||
|
Working temperature
|
-10°C ~ 50°C （Over 40℃, please derate by 1% for every 1℃ increase）
|
|
|
|
||||
|
Storage temperature
|
＜90%RH
|
|
|
|
||||
|
Working humidity
|
＜90%RH
|
|
|
|
||||
|
Noise
|
50dBA max.
|
|
|
|
||||
|
Other
|
|
|
|
|
||||
|
EMC
|
Standards:IEC 61800-3, C3
|
|
|
|
||||
|
Safety
|
Standards:IEC 61800-5-1
|
|
|
|
||||
|
Communication
|
|
|
|
|
||||
|
Communication port
|
RS-485
|
|
|
|
||||
|
MODEL
|
Nominal Capacity (KVA)
|
Input Current
(A) |
Output Current
(A) |
Applicable Motor Output (kW)
|
Applicable Motor Output (HP)
|
|||||
|
Single Phase 220V 50/60Hz
|
|
|
|
|
|
|||||
|
0.75G-S2
|
1.5
|
8.2
|
4
|
0.75
|
1
|
|||||
|
1.5G-S2
|
3
|
14
|
7
|
1.5
|
2
|
|||||
|
2.2G-S2
|
4
|
23
|
9.6
|
2.2
|
3
|
|||||
|
Three-Phase 380V 50/60Hz
|
|
|
|
|
|
|||||
|
0.75G-T4
|
1.5
|
3.4
|
2.1
|
0.75
|
1
|
|||||
|
1.5G-T4
|
3
|
5
|
3.8
|
1.5
|
2
|
|||||
|
2.2G-T4
|
4
|
5.8
|
5.1
|
2.2
|
3
|
|||||
|
3.7G-T4
|
6
|
10.5
|
9
|
3.7
|
5
|
|||||
|
5.5G-T4
|
11
|
13.9
|
13
|
5.5
|
7.5
|
|||||
|
7.5G-T4
|
15
|
18.9
|
17
|
7.5
|
10
|
|||||
|
11G-T4
|
30
|
27.8
|
25
|
11
|
15
|
|||||
|
15G-T4
|
37
|
37.9
|
32
|
15
|
20
|
|||||
|
18.5G-T4
|
44
|
46.7
|
37
|
18.5
|
25
|
|||||
|
22G-T4
|
44
|
46.7
|
37
|
18.5
|
25
|
|||||
|
MODEL
|
Instillation Position(mm)
|
|
Overall Dimensions(mm)
|
|
|
Instillation Position(mm）
|
Weight(kg)
|
|||
|
|
A
|
B
|
H
|
W
|
D
|
|
|
|||
|
0.75G-S2
|
66
|
155
|
165
|
78.3
|
107
|
5
|
0.73
|
|||
|
1.5G-S2
|
|
|
|
|
|
|
|
|||
|
2.2G-S2
|
67.3
|
157.5
|
170.2
|
84.6
|
138.1
|
5
|
1
|
|||
|
0.75G-T4
|
|
|
|
|
|
|
|
|||
|
1.5G-T4
|
|
|
|
|
|
|
|
|||
|
2.2G-T4
|
|
|
|
|
|
|
|
|||
|
3.7G-T4
|
85
|
184
|
194
|
97
|
153.3
|
4
|
1.5
|
|||
|
5.5G-T4
|
|
|
|
|
|
|
|
|||
|
7.5G-T4
|
107
|
235
|
245
|
142
|
168
|
5.5
|
3.5
|
|||
|
11G-T4
|
|
|
|
|
|
|
|
|||
|
15G-T4
|
216
|
336
|
310
|
164.8
|
195.2
|
5.5
|
5.5
|
|||
|
18.5G-T4
|
|
|
|
|
|
|
|
|||
|
22G-T4
|
|
|
|
|
|
|
|
|||
Model description
|
Model properties
|
G: G type machine (heavy duty type): 150% Rated current 60s 180% Rated current 6s
|
|
|
|
||||
|
|
P: P-type machine (universal): 120% Rated current 60s 150% Rated current 6s
|
|
|
|
||||
|
Power phasenumber
|
S: means single phase
|
|
|
|
||||
|
|
T: means three-phase
|
|
|
|
||||
|
Voltage level
|
2: Indicates 220V
|
|
|
|
||||
|
|
4: Indicates 380V
|
|
|
|
||||
|
Note: Some models support attribute switching between G/P models, take 15KW as an example: Users can
change the 15KW G model to 18.5KW P model through settings |
|
|
|
|
||||
