Quick Details
-
Power:
-
12KW
-
Dimension(L*W*H):
-
3050*2150*1650mm
-
Weight:
-
1300 KG
-
Application:
-
Leaher/rubber/fabric/paper/soft material
-
Product name:
-
Cnc Oscillating Knife Cutting Machine
-
Material:
-
Fabric/Leather/PVC
-
Cutting speed:
-
800mm/s
-
Size:
-
1600*2500mm
-
Cutting thickness:
-
Depend on Material
-
Control:
-
Ruida
-
Brand:
-
CAMEL CNC
-
Keywords:
-
Oscillating knife
-
Transmission system:
-
Yaskawa Servo Motor
Quick Details
-
Voltage:
-
220v/380v 3PHZ 50/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Power:
-
12KW
-
Dimension(L*W*H):
-
3050*2150*1650mm
-
Weight:
-
1300 KG
-
Application:
-
Leaher/rubber/fabric/paper/soft material
-
Product name:
-
Cnc Oscillating Knife Cutting Machine
-
Material:
-
Fabric/Leather/PVC
-
Cutting speed:
-
800mm/s
-
Size:
-
1600*2500mm
-
Cutting thickness:
-
Depend on Material
-
Control:
-
Ruida
-
Brand:
-
CAMEL CNC
-
Keywords:
-
Oscillating knife
-
Transmission system:
-
Yaskawa Servo Motor

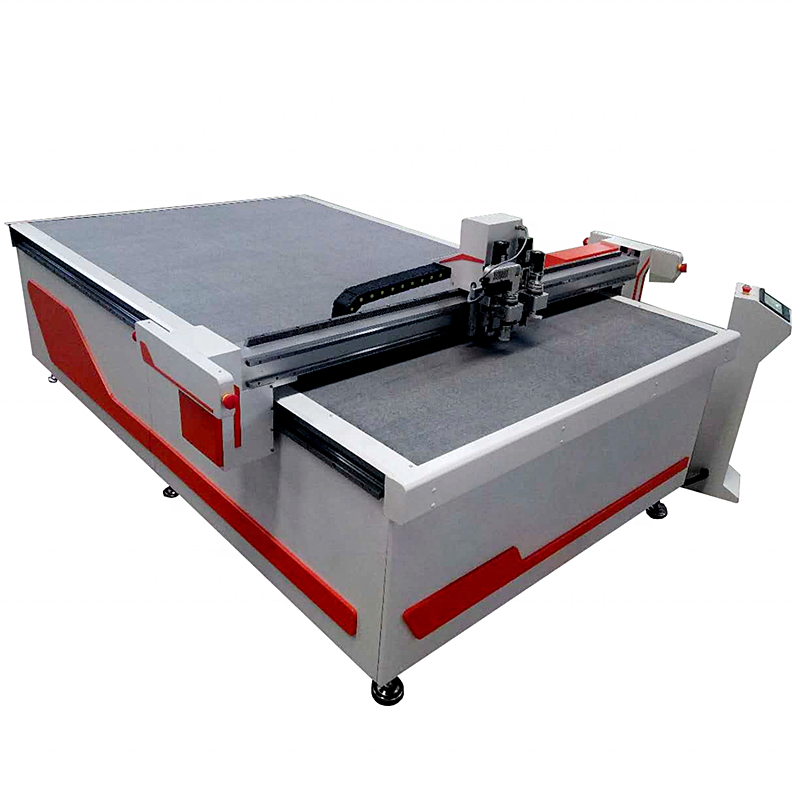

CA-1625 CNC Oscillating Blade Vibrating Knife CNC Fabric leather Digital Cutting Machine With Drawing Pen
Configuration:
*1600x2500mm working size
*Honeycomb Aluminum vacuum working table
Advantage :
1) Intelligent table surface error compensation: Select high-precision measuring instruments to accurately compensate the cutting accuracy of each point.
2) Optional function: multi-head double gantry, double the efficiency.
4) Continuous cutting system: intelligent material discharge, continuous cutting, and optional receiving table.
3) Tool quick change module: simple and efficient tool holder quick change system, making operation easier and convenient
4) Partition adsorption function: Intelligent partition tracking adsorption system, local suction is greatly increased.
Technical Parameter:
|
Parameter/Model |
CA-1325 |
CA-1625 |
CA-1830 |
|
Multi-functional Cutting Head |
Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc. |
||
|
Tools configuration |
Various cutting tools, creasing wheels, pen, cross positioning laser |
||
|
Safety |
High sensitivity infrared induction (optional) |
||
|
Moving Speed |
Max. 1200mm/s |
||
|
Cutting Speed |
Max. 800mm/s(please set the speed according to the material) |
||
|
Material Applicable |
Corrugated paper,non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc. |
||
|
Cutting Depth |
Max 50mm (depends on the material) |
||
|
Material Fixing Method |
Strong power vacuum absorption and intelligence Partition |
||
|
Resetting Positioning Accuracy |
Max 0.01mm |
||
|
Mechanical Precision |
Max 0.02mm |
||
|
Drive System |
Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail |
||
|
Control System |
Ruida control systerm |
||
|
Display |
English LCD touch screen |
||
|
Data Transmission |
Ethernet |
||
|
Command |
Compatible format |
||
|
Buffering Capacity |
Standard--4GB |
||
|
Rated Power |
11KW |
12KW |
14KW |
|
Max Working Size |
1300*2500mm |
2500*1600mm |
1800*2000mm |
|
Rated voltage |
220,380V |
||
|
Body dimension |
3050*1652*1355mm |
3050*1950*1355mm |
3550*2450*1235mm |
|
We reserve the final explanation for the above parameters and able to make any alternations without notice |
|||
Application:
Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, PVC, leather , sponge composite skin, XPE material, wire ring, soft glass , silicone, rubber material etc composite soft material...
Processing Samples:
Machine Pictues:
Auto Feeding System For Reference:
Guarantee and CNC Oscillating Knife Cutting Machine:
1. 2-years warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
