Quick Details
-
Brand Name:
-
LS
-
Model Number:
-
LSSWP-25W
-
Color Temperature(CCT):
-
3000-6000k
-
Input Voltage(V):
-
AC100-277V
-
Item Type:
-
Outdoor Wall Lights
-
IP Rating:
-
IP65
-
Driver:
-
ETL DLC TUV CE Approved driver
-
Color temp:
-
3000K 4000K 5000K 5700K 6500K
-
replacement:
-
100W MH/HPS
-
Beam Angle(°):
-
120degree
-
Working Temperature(℃):
-
-45 - 50
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2600
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LS
-
Model Number:
-
LSSWP-25W
-
Color Temperature(CCT):
-
3000-6000k
-
Input Voltage(V):
-
AC100-277V
-
Item Type:
-
Outdoor Wall Lights
-
IP Rating:
-
IP65
-
Driver:
-
ETL DLC TUV CE Approved driver
-
Color temp:
-
3000K 4000K 5000K 5700K 6500K
-
replacement:
-
100W MH/HPS
-
Beam Angle(°):
-
120degree
-
Working Temperature(℃):
-
-45 - 50
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2600

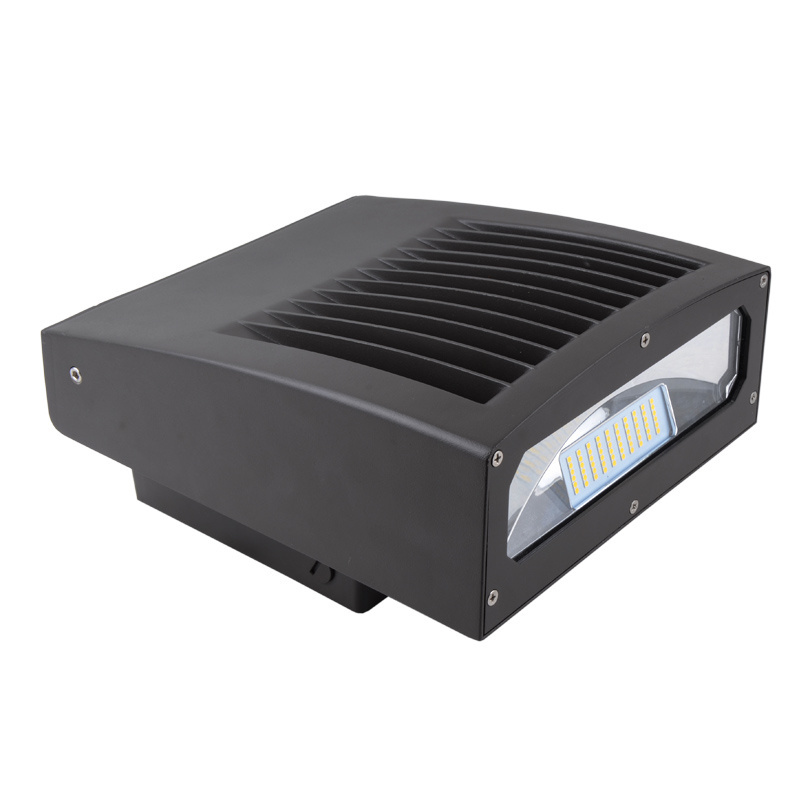

25W Full Cut-off LED Wall Pack Lights IP65 Waterporoof,5 yeare warranty.ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified
High strength and die-cast aluminium casing, printing static and thermoplastic external surface which is corrosion resistant, shock resistant, hard and durable.The use of high-strength shell of aluminum die-casting, With good heat dissipation, the characte
Main Feature
- 5 years warranty
- Original SMD 3030 which up to 110Lm/W.
- With the best quality ETL DLC TUV driver.
- They are assembled by module light weight aluminum fin.
- IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.
- Using aluminum fin heat sink which heat transfer faster than die cast.
- Tiny package and lighter,lower freight cost,more competitive in the market.
- Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.
Dimension
Specifications - 30w LED Wall Pack Light
| Model | LSFWP-25W | |
| Wattage | 25w | |
| Luminous Flux |
4000K : 2,200 Lumen
4500K : 2,300 Lumen 5000K : 2,400 Lumen 5700K : 2,500 Lumen |
|
| Light Source | SMD 3030 | |
| LED QTY | N/A | |
| Driver Power | ETL DLC TUV Approved | |
| Dimension | 7.99*6.54*4.25 in | |
| Equivalent | 105W metal halide / HID wall pack Equivalent | |
| CCT | 3000K 4000K 5000K 5700K 6500K | |
| Input Voltage | 100-277VAC and 347-480VAC | |
| Power Factor | >0.95 | |
| Cap Type | Base Options:US,Europe,UK,Australia plug | |
| optical lens | N/A | |
| Construction | High pressure die-casting aluminum external | |
| Installation Method | Wall installation | |
| IP Rating | IP65 | |
| CRI | >80 | |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C | |
| Warranty | 5 year Warranty | |
| Rated Lifespan | 50,000+ hours | |
| Certified | ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified | |
Types
Details
Application
Package
25W: 4pcs/carton carton size: 44*27*39cm Gross weight:8kg
