Quick Details
-
Power (kW):
-
2.2
-
Weight (KG):
-
800 KG
-
Color:
-
Green
-
Max diameter of nail:
-
6mm
-
Min diameter of nail:
-
2.8mm
-
Max length of nail:
-
150mm
-
Min length of nail:
-
50mm
-
Nail making speed:
-
220pcs/min
-
Voltage:
-
220V /380V
-
Dimension:
-
2.4x1.7x1.65m
-
Weight:
-
2200kg
-
Motor power:
-
5500W
Quick Details
-
Production Capacity:
-
320/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HOGNXIN
-
Power (kW):
-
2.2
-
Weight (KG):
-
800 KG
-
Color:
-
Green
-
Max diameter of nail:
-
6mm
-
Min diameter of nail:
-
2.8mm
-
Max length of nail:
-
150mm
-
Min length of nail:
-
50mm
-
Nail making speed:
-
220pcs/min
-
Voltage:
-
220V /380V
-
Dimension:
-
2.4x1.7x1.65m
-
Weight:
-
2200kg
-
Motor power:
-
5500W
Hot sale Professional Factory supply Complete Nail Screw Machinery Line nail making machine price
According to the point of view of recyling, energy-saving, turning waste into
useful product, mainly give priority to the economic usefulness, nail forming
machine reaches to high technical content, convenient to operate, low power,
energy-saving, performance stable And reliable etc.
The nails made by nail making machinery will be straight, the point of the nails
will be sharp and symmetrical, the nails cap will be round, every nail will be perfect.
Technical data of automatic iron nail making machine
|
Model |
MHC-6C |
MHC-5C |
MHC-4C |
MHC-3C |
MHC-2C |
MHC-1C |
|
Max diameter of nail |
6mm |
6mm |
4.5mm |
3.1mm |
2.8mm |
1.6mm |
|
Min diameter of nail |
3.1mm |
2.8mm |
2.8mm |
1.8mm |
1.2mm |
0.9mm |
|
Max length of nail |
180mm |
150mm |
100mm |
70mm |
50mm |
25mm |
|
Min length of nail |
70mm |
50mm |
50mm |
30mm |
16mm |
9mm |
|
Nail making speed |
220pcs/min |
220pcs/min |
260pcs/min |
320pcs/min |
350pcs/min |
450pcs/min |
|
Motor power |
10kw |
5.5kw |
4kw |
3kw |
2.2kw |
0.8kw |
|
LxWxH |
3x1.8x1.9 m |
2.4x1.7x1.65m |
2.2x1.6x1.65m |
2x1.4x1.4 m |
1.7x1.3x1.4m |
1.5x1.3x1.2m |
|
Weight |
5.5 T |
2.2 T |
2 T |
1.8 T |
1.45 T |
1.2 T |

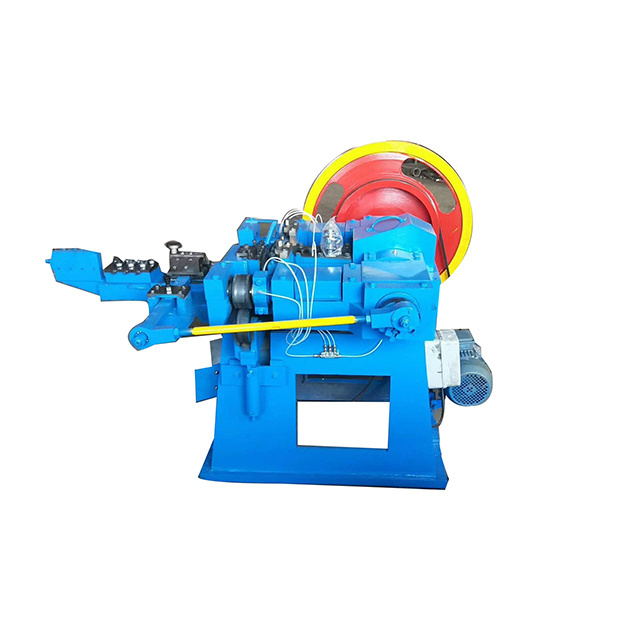

Pictures of automatic iron nail making machine
