- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
550
-
Voltage:
-
380V 50HZ OR CUSTOMIZED
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhengxia
-
Dimension(L*W*H):
-
3240*1300*2375
-
Product name:
-

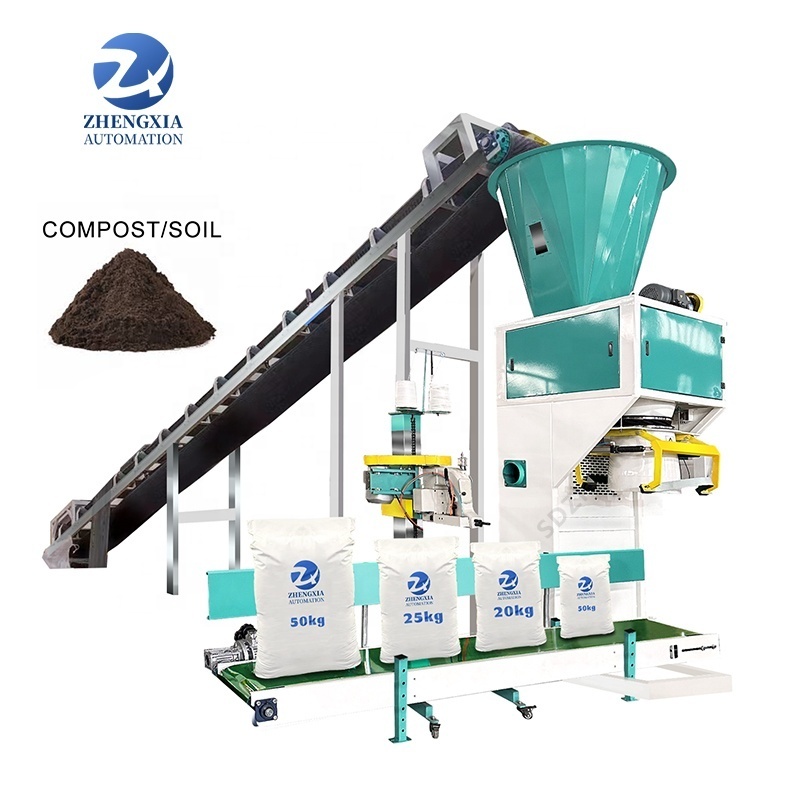

Powder Packing Machine
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Packing speed:
-
300-400 bags/h
-
Main Function:
-
Weighing Filling Sealing
-
Packing material:
-
SS304
-
After Warranty Service:
-
video technical support
-
After sales service provided:
-
field installation commission
-
Marketing Type:
-
Other
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Cartons, CANS, Bags, Belt
-
Packaging Material:
-
Plastic, Wood
-
Weight (KG):
-
550
-
Voltage:
-
380V 50HZ OR CUSTOMIZED
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhengxia
-
Dimension(L*W*H):
-
3240*1300*2375
-
Product name:
-
Powder Packing Machine
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Packing speed:
-
300-400 bags/h
-
Main Function:
-
Weighing Filling Sealing
-
Packing material:
-
SS304
-
After Warranty Service:
-
video technical support
-
After sales service provided:
-
field installation commission
-
Marketing Type:
-
Other
MACHINE SHOW
|
Model
|
DCS-P -W-50
|
|
|
||
|
Material
|
SS304 Contact parts
|
|
|
||
|
Gross Weight
|
610kg
|
|
|
||
|
Packing Capacity
|
200-300bags/h
|
|
|
||
|
Weighing Range
|
5-50kg or Customized
|
|
|
||
|
Quantify Precision
|
±0.2%
|
|
|
||
|
Power
|
2.5kw
|
|
|
||
|
Power Supply
|
AC 220V/380V 50 HZ 1P/3P Customized
|
|
|
||
|
Air Source
|
0.4~0.6MPa 0.36m³/min
|
|
|
||
|
Application Materials
|
Applicable for materials such as: compost, gravel, rare earth, bentonite, river sand, mortar, organic fertilizer, microbial fertilizer, barite, gypsum, flakes, irregular shaped pieces, bolts, screws, nuts etc.
|
|
|
||
PRODUCT DETAILS
Belt feeding system
•Belt feeding is suitable for materials with poor fluidity•1.5Kw motor drive, fast weighing
•The parts in contact with the material are made of stainless steel, which is more corrosion-resistant
Quantitative baffle
•Three-speed feeding and weighing are more accurate
•Simple structure and easy maintenance
Automatic Sewing Machine
•Continuous type heating sealer for plastic bag •Adjustable speed，aluminum foil bag，tightly seale •Adjustable temperature from 0°C
to 300°C，can seal bags with a thickness of 0.6mm
to 300°C，can seal bags with a thickness of 0.6mm
Weighing Controller
•5 inch TFT LCD concise operation interface•Automati Zero-Tracking function
•20 recipes can be stored for different weighing capacity.
•Adaptive optimization algorithm to accelerate working pace and increase accuracy
•20 recipes can be stored for different weighing capacity.
•Adaptive optimization algorithm to accelerate working pace and increase accuracy
Discharge Port
•Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover•Use AirTAC cylinder as power, longer service life.
•Discharge port can be customized to accommodate more bags
•Discharge port can be customized to accommodate more bags
Conveyor Belt
•The power of the motor is 0.37 Kw, brass core motor, more durable•The width of the belt is 400mm, the length is 3m
•Height can be adjusted according to the bag, speed is 5-20 m/min
•Height can be adjusted according to the bag, speed is 5-20 m/min
APPLICATION MATERIALS
Different Sealing Way For You To Choose
Weighing Range
The standard weighing range of our machine is 5-50kg/lbs.
It can also be customized according to your needs!
Tell us what you need!!!
Workable With Different Material Of Bags
Our sealing machine is workable for various types of bags.
Woven bags, multiwall paper bags, Kraft paper bags, jute bag, PP,PE bags etc.
CHOOSE YOUR PACKING MACHINE!!!
PACKING MACHINE
+
RUBBER BELT CONVEYOR
PACKING MACHINE
+
BUCKET ELEVATOR
PACKING MACHINE
+
BELT CONVEYOR
PACKING MACHINE
(Semi Automatic)
PACKING MACHINE
（Double Station)
PACKING MACHINE
(Auto Sewing System)
OPTIONAL DEVICES
Folding Machine
Labeling Machine
Air Compressor
We can design the entire packing line for you for free
MACHINE COMPONENTS
COMPANY PROFILE
PACKAGING & DELIVERY
FAQ
Q1: Are you factory or trading company?
A1: We are the factory, we doing this line for more than 10 years.
Q 2: How to choose suitable packaging machine?
A2: Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How to ensure the quality of the machine?
A3: We usually delivery the machine after successful inspection in our factory. We have our own quality control department,beforethe delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q4: How to install the equipment?
A4: We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
Q5: What's your payment way?
A5: T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or L/C.
A1: We are the factory, we doing this line for more than 10 years.
Q 2: How to choose suitable packaging machine?
A2: Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How to ensure the quality of the machine?
A3: We usually delivery the machine after successful inspection in our factory. We have our own quality control department,beforethe delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q4: How to install the equipment?
A4: We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
Q5: What's your payment way?
A5: T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or L/C.
