☛Simulation softwares are fluently used by Metalli's engineers to analyze and improve your products' structure and design.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Material:
-
Aluminum alloy
-
Dimension(L*W*H):
-
Up to 3.8*1.1*1.1m L*W*H
-
Surface roughness:
-
1.2 um
-
Surface flatness:
-
Below 0.005 cm/cm
-
Shape:
-
Custom
-
Main technique:
-
CNC machining
-
Bonding technique:
-
Epoxy gluing
-
Working pressure:
-
1.2 to 5 bars
-
Fluid:
-
Water or suitable coolant
-
Surface finish:
-
Mill finish or custom
Quick Details
-
Type:
-
Cooler
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
OEM
-
Material:
-
Aluminum alloy
-
Dimension(L*W*H):
-
Up to 3.8*1.1*1.1m L*W*H
-
Surface roughness:
-
1.2 um
-
Surface flatness:
-
Below 0.005 cm/cm
-
Shape:
-
Custom
-
Main technique:
-
CNC machining
-
Bonding technique:
-
Epoxy gluing
-
Working pressure:
-
1.2 to 5 bars
-
Fluid:
-
Water or suitable coolant
-
Surface finish:
-
Mill finish or custom
|
NO.
|
ITEM
|
CONTENT DESCRIPTION
|
|
|
||
|
1
|
Base Material
|
Aluminum alloy, AA3003 is commonly used
|
|
|
||
|
2
|
Tube Material
|
Red copper T2 or Stainless steel
|
|
|
||
|
3
|
Production Technique
|
CNC machining and Epoxy gluing
|
|
|
||
|
4
|
Outer Dimension Limit
|
Max. 4000*4000*1000mm L*W*H
|
|
|
||
|
5
|
Tube Size
|
Diameter 4/6/8/10/12/16/20 mm
|
|
|
||
|
6
|
Tube wall thickness
|
1/1.2/1.5 mm
|
|
|
||
|
7
|
Surface Roughness
|
Standard 1.2um or custom
|
|
|
||
|
8
|
Surface Flatness
|
Standard 0.005cm per cm length or custom
|
|
|
||
|
9
|
Working Pressure
|
Normal 1.2 to 5 bars
|
|
|
||
|
10
|
Surface finish
|
Mill finish, anodization, painting or custom
|
|
|
||
|
11
|
Packing way
|
Normal plywood case packing way
|
|
|
||

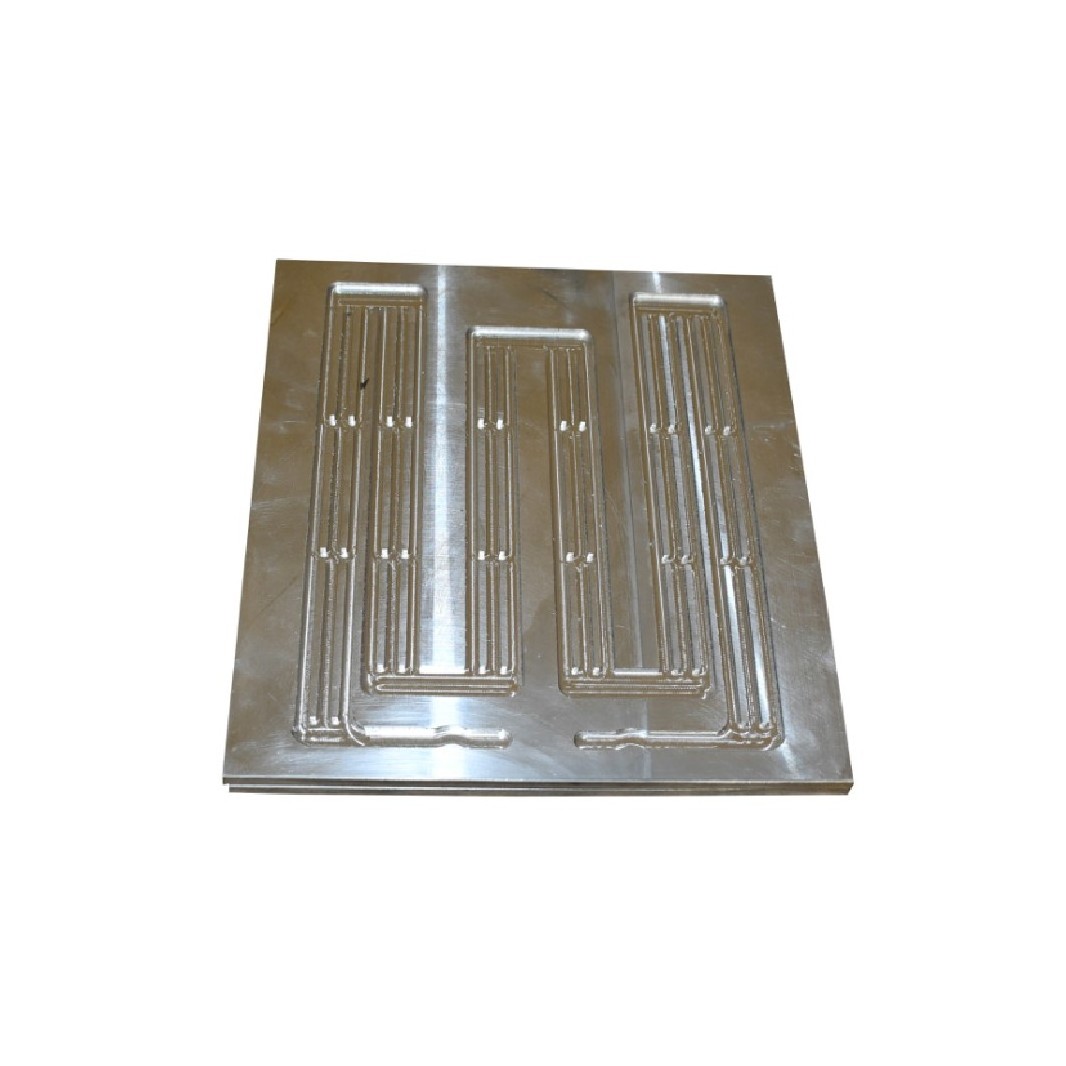

Metalli’s cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.Metalli’s cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.
Design & Engineering
THERMAL SIMULATION CASE STUDY
☛Metalli designers,engineering engineers work closely with production engineers,quality engineers and source engineers to ensure your solutions meet DFM and are optmized;
