- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yichen
-
Model Number:
-
YCST-1260-S
-
Warranty:
-
5 Years
-
CC:
-
800
-
Weight:
-
6.5kg
-
Product name:
-
Auto battery 12V 60Ah
-
12v Auto battery type:
-
Lifepo4 Battery
-
Auto Battery voltage:
-
12.8V
-
Auto battery Capacity:
-
60Ah
-
Dimensions:
-
230*175*162mm or Customized
-
Application:
-
car batery auto battery
-
Terminal:
-
Drop-in replacement of SLA battery
-
Cycle life:
-
4000 cycles,DOD80%
-
Features:
-
Lifting handle fitted to ensure secure hold when moving
-
Package:
-
1x12v 60Ah battery in 1 carton box
Quick Details
-
OE NO.:
-
00003
-
Size:
-
230*175*162mm
-
Car Make:
-
Auto
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yichen
-
Model Number:
-
YCST-1260-S
-
Warranty:
-
5 Years
-
CC:
-
800
-
Weight:
-
6.5kg
-
Product name:
-
Auto battery 12V 60Ah
-
12v Auto battery type:
-
Lifepo4 Battery
-
Auto Battery voltage:
-
12.8V
-
Auto battery Capacity:
-
60Ah
-
Dimensions:
-
230*175*162mm or Customized
-
Application:
-
car batery auto battery
-
Terminal:
-
Drop-in replacement of SLA battery
-
Cycle life:
-
4000 cycles,DOD80%
-
Features:
-
Lifting handle fitted to ensure secure hold when moving
-
Package:
-
1x12v 60Ah battery in 1 carton box
Product Description

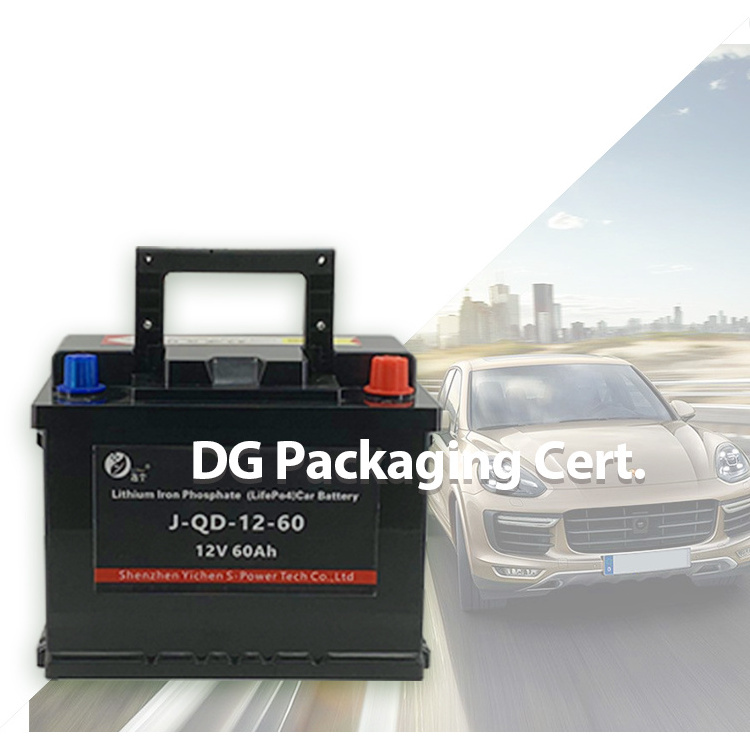

CCA 900 12V 60Ah auto battery Car battery for engine starting
Please inform us which side you want the negative terminal on the battery,left or right side while you place order directly.
12V 60Ah LiFePO4 Lithium car batteries,
is a superior alternative to traditional heavy SLA batteries,it's lighter and more powerful.Equivalent in capacity to a 120Ah battery,While Lead acid battery is 30KG,this lifepo4 battery pack is only 6.5KG.And now it doesn't need specialised charger any more. Perfect for using to start cars,4WD's,boats and more.
|
Electrical Characteristics |
12V car batery Nominal Voltage
|
12.8V
|
|
|
12V car batery Nominal capacity
|
60Ah
|
|
|
12V car batery Energy
|
768Wh
|
|
|
Internal Resistance
|
≤30mΩ
|
|
|
12V car batery Cycle life
|
≥4000 cycles @1C 80%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge |
12V starter Battery Charge Voltage
|
14.6±0.2V
|
|
|
12V starter Battery Charge Mode
|
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
|
|
|
12V starter Battery Charger Current
|
60A
|
|
|
12V starter Battery Max. Charge Current
|
100A
|
|
|
Charge Cut-off voltage
|
14.6V±0.2V
|
|
Standard Discharge
|
Continuous Current
|
60A
|
|
|
Max. Pulse Current
|
600A
|
|
|
Discharge Cut-off Voltage
|
9.5v
|
|
Environmental |
Charge Temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP65
|
|
Mechanical
|
Cell & Method
|
4S1P
|
|
|
Plastic Case
|
ABS
|
|
|
Dimensions (mm)
|
230*175*162mm
Customizable |
|
|
Weight
|
6.5KG
|
|
|
Terminal
|
The same as original SLA battery
|
|
Color
|
|
Black
|
How safe are Lithium-Ion LiFePO4 Batteries?
Lithium Iron Phosphate chemistry(LFP,LiFePO4) is one of the most safe Lithium-Ion technology.This chemistry is not subject to thermal runaway, is non-flammable and is considered as non-hazardous by international regulation standards.
Each battery is fitted with a high quality BMS that ensure a safeguard role during battery operation.The BMS is designed to deliver high power in complete safety for a very spectrum of applications.
What can LiFePO4 battery be used for?
LiFePO4 batteries are commonly use for Marine,Recreational vehicles,Golf cart applications,CCTV,robotics,PV energy storage,etc...
YiChen LiFePO4 battery can be used for any system or application that would normally use Lead acid battery(AGM,GEL) in 12V,up to 48V. After removing the olf batteries,place LifePO4 batteries in the same way.
Recommend Products
Certificates
Our products can pass TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries.
