Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SCB8-125DC
-
Rated Frequency (Hz):
-
50/60hz
-
Number of Pole:
-
1
-
Product name:
-
MCB Miniature Circuit Breaker
-
Pole number:
-
1P,2P
-
Mounting:
-
35mm din rail breaker
-
Certificates:
-
IEC,TUV,SAA,CE,ROHS etc.
-
Standards:
-
IEC60947-2
-
Ambient Temperature:
-
-5℃~40℃
-
Rated Frequency:
-
50/60hz
Quick Details
-
Breaking Capacity:
-
10KA, 10KA
-
Rated Voltage:
-
up to 550V, 250 V 550 V DC
-
Rated Current:
-
1A~125A, 1/2/3/4/5/6/10/16/20/25/32/40/50/63/80/100/125 A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SCB8-125DC
-
Rated Frequency (Hz):
-
50/60hz
-
Number of Pole:
-
1
-
Product name:
-
MCB Miniature Circuit Breaker
-
Pole number:
-
1P,2P
-
Mounting:
-
35mm din rail breaker
-
Certificates:
-
IEC,TUV,SAA,CE,ROHS etc.
-
Standards:
-
IEC60947-2
-
Ambient Temperature:
-
-5℃~40℃
-
Rated Frequency:
-
50/60hz
Products Description

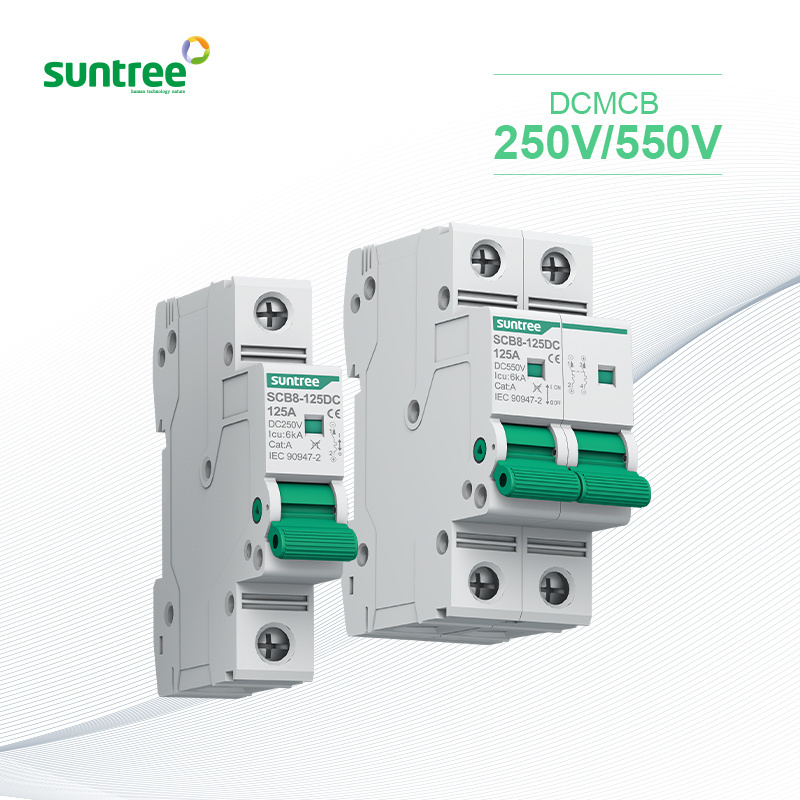

SC88-125DC series DC miniature circuit breaker (hereinafter referred to as circuit breaker) is suitable for lines with rated current of 125A and below DC rated voltage or 250V and 500V, It is used for over loading and short-circuit protection of facilities and electrical equipment of DC power distribution system, be widely used in electric power,post and telecommunications,
communication
,industrial and
mining enterprises
and other industries. This product meets the requirements of GB14048.2 1EC60947.2
|
Modle
|
SCB8-125DC
|
|
Rated Current in (A)
|
1/2/3/4/5/6/10/16/20/25/32/40/50/63/80/100/125 A
|
|
Rated volage (V DC)
|
(1P):250V
(2P):550V
|
|
Pole
|
1P 2P
|
|
Breaking capacity (KA)
|
10
|
|
Curve type
|
C
|
|
Trip type
|
Thermal-magnetic
|
|
Breaking current
|
60000
|
|
Instantaneous release current
|
8 In-12 In
|
|
Installation
|
DIN Standard rail
|
Operating conditions
1.
The maximum ambient air temperature does not exceed +40℃, minimum is not less than-5℃ and the average value does not exceed +35℃
2.
The altitude of the installation site does not exceed 2000 m
3.
The relative humidity of the atmosphere does not exceed 50° at the maximum ambient temperature of +40 ℃. Relative humidity at high temperature can be relatively high
4.
The month 1 average maximum relative humidity of the wettest month is 90%, and the monthly average of the month. The minimum temperature +25℃ and takes into account condensation that occurs on the surface of the product due to temperature changes
5.
Pollution level is 2
6.
Installation categories are II,III
7.
Use TH35-7.5 steel mounting rails for installation
8.
The inclination of the mounting surface and the vertical surface does not exceed 5℃
9.
Screw the wire tight
