Quick Details
-
Model Number:
-
CW-WS
-
Type:
-
EX TY
-
Sensor element:
-
thermostatic bimetal
-
Switching temperature difference:
-
2K(±1K tolerance)at 25°C/77°F(50%RH)
-
Contact type (1-pole):
-
opens with rising temperature
-
Max. switching capacity:
-
250VAC, 4 (1)
-
Service life:
-
> 100 000 cycles
-
Dimensions:
-
length 110mm
-
Weight:
-
Approx.0.2kg
-
Operating/Storage Temperature:
-
-20 to +40 °C (-4 to +104 °F) /-45 to +70 °C (-49 to +158 °F)
-
Mounting method:
-
din rail mounted
-
Protection Level:
-
IP65
Quick Details
-
Voltage:
-
230VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAIPWELL
-
Model Number:
-
CW-WS
-
Type:
-
EX TY
-
Sensor element:
-
thermostatic bimetal
-
Switching temperature difference:
-
2K(±1K tolerance)at 25°C/77°F(50%RH)
-
Contact type (1-pole):
-
opens with rising temperature
-
Max. switching capacity:
-
250VAC, 4 (1)
-
Service life:
-
> 100 000 cycles
-
Dimensions:
-
length 110mm
-
Weight:
-
Approx.0.2kg
-
Operating/Storage Temperature:
-
-20 to +40 °C (-4 to +104 °F) /-45 to +70 °C (-49 to +158 °F)
-
Mounting method:
-
din rail mounted
-
Protection Level:
-
IP65
| Manufacturer 15 Degree 25 Degree 250VAC Hazardous Area Thermostat Explosion proof Temperature Switch |
| Explosion proof Thermostat |
| IP65 Rated |
| Temperature controller |
SAIP/SAIPWELL Wholesale Hazardous Area Thermostat/Explosion proof Temperature Switch
1. Compact small mechanical thermostat for temperature regulation and monitoring of heaters,
for example in transmitter cabinets, control panels and measuring equipment which are deployed
in areas with explosion hazard. The special switch construction enables high response accuracy, small switch temperature difference and a very long service life. High switching performance allows direct control of the heaters.
2. Temperature controller passed
IP20,CE ,RoHS.
3. Samples will be offered to you for our future cooperation.
4. OEM/ODM service are offerred.
5.
Payment:
T/T Advance, L/C 100% Payment if total amount less than $10,000USD.
6.
Shipment
: by air/sea or express.
SAIP/SAIPWELL Wholesale Hazardous Area Thermostat/Explosion proof Temperature Switch
|
Explosion proof according to EN |
LCIE (Laboratoire Central des Industries Electriques) |
|
Conformity certificate |
L.C.I.E. 01 ATEX 6074 - L.C.I.E. N°06 ATEX 08011 |
|
Sensor element |
thermostatic bimetal |
|
Contact type (1-pole) |
opens with rising temperature |
|
Service life |
> 100 000 cycles |
|
Max. switching capacity |
250VAC, 4 (1) |
|
Connection |
Si HF - JZ 3 x 0.75mm², length 1m |
|
Mounting |
mounting bracket with nut M8 (see illustration) |
|
Casing |
aluminium, black anodised |
|
Dimensions |
length 110mm |
|
Weight |
approx. 0.20kg |
|
Fitting position |
variable |
|
Operating/Storage temperature |
-20 to +40 °C (-4 to +104 °F) /-45 to +70 °C (-49 to +158 °F) |
|
Protection type / Protection class |
IP65 / I (earthed) |
|
Art. No. |
Ex protection type |
Switch-off temperature |
Switch temperature difference |
|
01180.0-00 |
II 2 GD - EEx d IIC T6 IP6x T85°C |
15°C (± 4K tolerance) |
4K (± 1K tolerance) |
|
01181.0-00 |
II 2 GD - EEx d IIC T6 IP6x T85°C |
25°C (± 4K tolerance) |
4K (± 1K tolerance) |

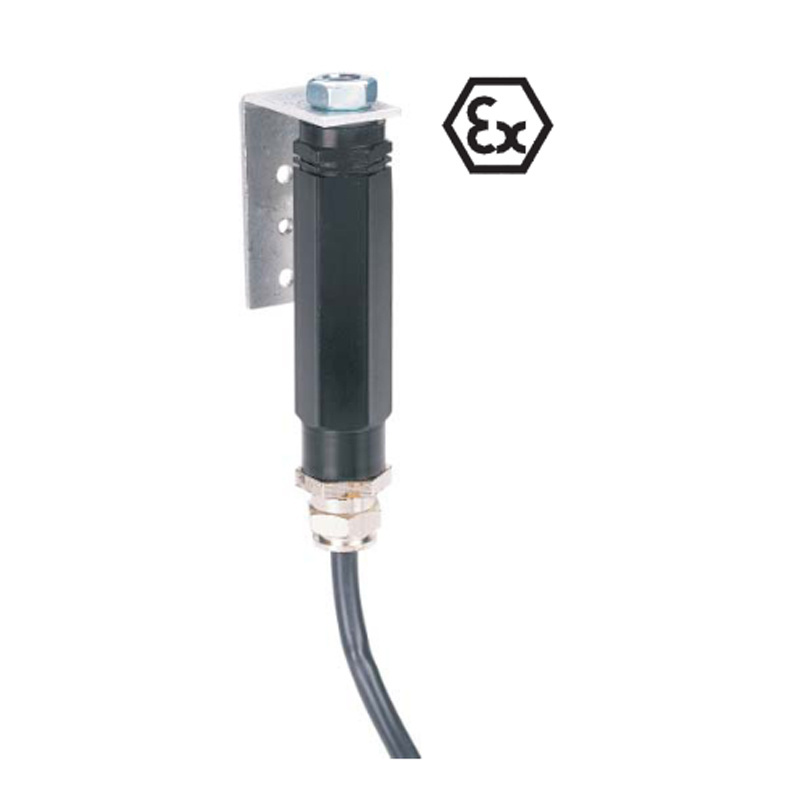

SAIP/SAIPWELL Hazardous Area Thermostat Explosion proof Temperature Switch REX 011
SAIP/SAIPWELL Hazardous Area Thermostat Explosion proof Temperature Switch REX 011
SAIP/SAIPWELL Hazardous Area Thermostat Explosion proof Temperature Switch REX 011
SAIP/SAIPWELL Hazardous Area Thermostat Explosion proof Temperature Switch REX 011
1,Material,size and other requirements are customized.
2,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3,Answer your question detailed.
4,Solve the problem with you during using our products.
5,More our products you can visit our website:
Transportation:
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
Our company provide small, compact thermostat, dual thermostat, mechanical hygrostat, tamperproof thermostat, electronic relay, electronic hygrothermostat, digital thermostat, new
generation thermostat.
The thermostat can be installed in enclosures,such as ABS enclosrues,waterproof box,junction box,control box,terminal box,switch box etc.
