Quick Details
-
Brand Name:
-
CatvScope
-
Theory:
-
fiber optic inspection microscope
-
Drawtube:
-
Monocular
-
Display:
-
3.5" TFT-LCD, 320 x 240 pixels
-
Dimensions:
-
170mm x 100mm x 40mm
-
Weight:
-
200g
-
Power Supply:
-
Replaceable battery or universal input 5V DC adapter
-
Battery:
-
Rechargeable Li-Ion, 3.7V / 1450mAh
-
Keywords:
-
Fiber Optic Connector Inspection Microscope
-
Operating Temperature:
-
-20°C to 50°C
-
Storage Temperature:
-
-30°C to 70°C
Quick Details
-
Type:
-
Testers &Tools
-
Model Number:
-
CSP-400A
-
Place of Origin:
-
China
-
Brand Name:
-
CatvScope
-
Theory:
-
fiber optic inspection microscope
-
Drawtube:
-
Monocular
-
Display:
-
3.5" TFT-LCD, 320 x 240 pixels
-
Dimensions:
-
170mm x 100mm x 40mm
-
Weight:
-
200g
-
Power Supply:
-
Replaceable battery or universal input 5V DC adapter
-
Battery:
-
Rechargeable Li-Ion, 3.7V / 1450mAh
-
Keywords:
-
Fiber Optic Connector Inspection Microscope
-
Operating Temperature:
-
-20°C to 50°C
-
Storage Temperature:
-
-30°C to 70°C
HOT SALE
Product Description
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

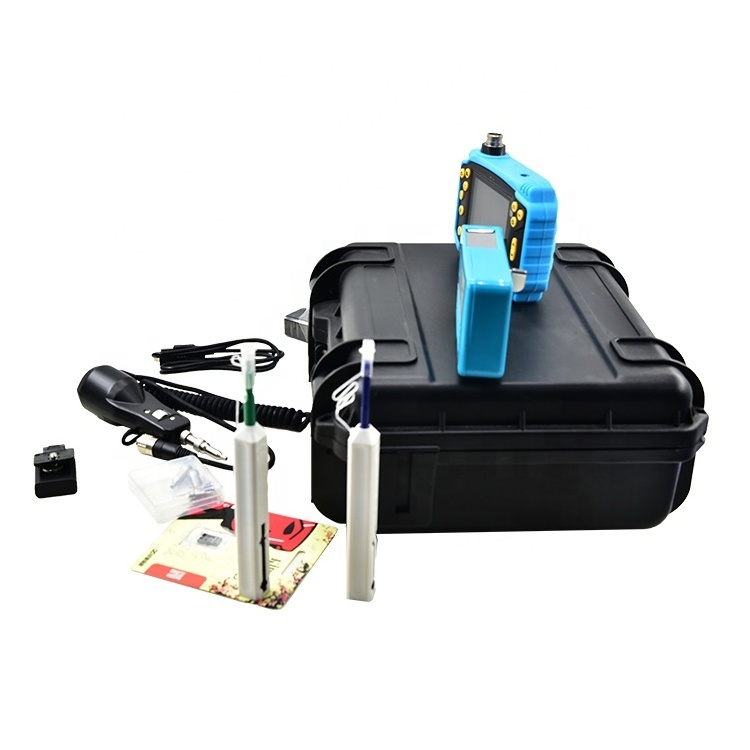

The CSP400A is a handheld microscope specifically designed for fiber optic connector end face inspection.
The CSP400A is a handheld microscope specifically designed for fiber optic connector end face inspection.
Features
----
FC/SC/ST/E2000/LC/MU/MPO compatible
---- 3.5-inch TFT display
---- Up to 250x overall magnification
---- 4x digital zoom
---- SD card storage up to 8G
---- Snapshot, video recording and playback
---- PC plug-and-play
---- 3.5-inch TFT display
---- Up to 250x overall magnification
---- 4x digital zoom
---- SD card storage up to 8G
---- Snapshot, video recording and playback
---- PC plug-and-play
Specification
|
Mainframe
|
Fiber optic stripper
|
|
|
Display
|
3.5” TFT-LCD, 320 x 240 pixels
|
|
|
Dimensions
|
170mm x 100mm x 40mm
|
|
|
Weigh (including battery)
|
200g
|
|
|
Power Supply
|
Replaceable battery or universal input 5V DC adapter
|
|
|
Battery
|
Rechargeable Li-Ion,3.7V / 1450mAh
|
|
|
Battery life
|
> 3 hours (continuous)
|
|
|
Charger/AC adapter
|
US, EU, UK and Australian versions available
|
|
|
Image / Video Storage
|
8GB SD card
|
|
|
Operating Temperature
|
-20°C to 50°C
|
|
|
Storage Temperature
|
-30°C to 70°C
|
|
|
Inspection Probe
|
|
|
|
Magnification
|
400X (9” monitor); 250x (3.5”monitor)
|
|
|
Detection Limit
|
0.5μm
|
|
|
Focus Control
|
Manual , in-probe
|
|
|
Principle
|
Bright field reflected light microscopy
|
|
|
Dimensions
|
180mm x 40mm x 30mm
|
|
|
Weight
|
200g
|
|
