Quick Details
-
Warranty of core components:
-
/
-
Core Components:
-
/
-
Place of Origin:
-
China
-
Brand Name:
-
RSI
-
Voltage:
-
220V/50HZ/1P
-
Power:
-
2Kw
-
Weight:
-
175 KG
-
Dimension(L*W*H):
-
1,200mm (L) x 1,350mm (W) x 1,900mm(H)
-
Processing Types:
-
Beer Keg
-
Material:
-
SUS304
-
Type:
-
Automatic
-
Language of control panel:
-
English indicating labels
-
PLC:
-
SIEMENS
-
Usage:
-
Keg Washing and Fulling
-
Suit for:
-
Stainless steel beer kegs
-
Max Capacity:
-
80~100 kegs per hour (20L size keg)
-
heating style:
-
by steam
-
Certification::
-
CE; certificate for material
-
Suit for spear styles:
-
A, G, S or D for options
Quick Details
-
Video outgoing-inspection:
-
/
-
Machinery Test Report:
-
/
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Core Components:
-
/
-
Place of Origin:
-
China
-
Brand Name:
-
RSI
-
Voltage:
-
220V/50HZ/1P
-
Power:
-
2Kw
-
Weight:
-
175 KG
-
Dimension(L*W*H):
-
1,200mm (L) x 1,350mm (W) x 1,900mm(H)
-
Processing Types:
-
Beer Keg
-
Material:
-
SUS304
-
Type:
-
Automatic
-
Language of control panel:
-
English indicating labels
-
PLC:
-
SIEMENS
-
Usage:
-
Keg Washing and Fulling
-
Suit for:
-
Stainless steel beer kegs
-
Max Capacity:
-
80~100 kegs per hour (20L size keg)
-
heating style:
-
by steam
-
Certification::
-
CE; certificate for material
-
Suit for spear styles:
-
A, G, S or D for options

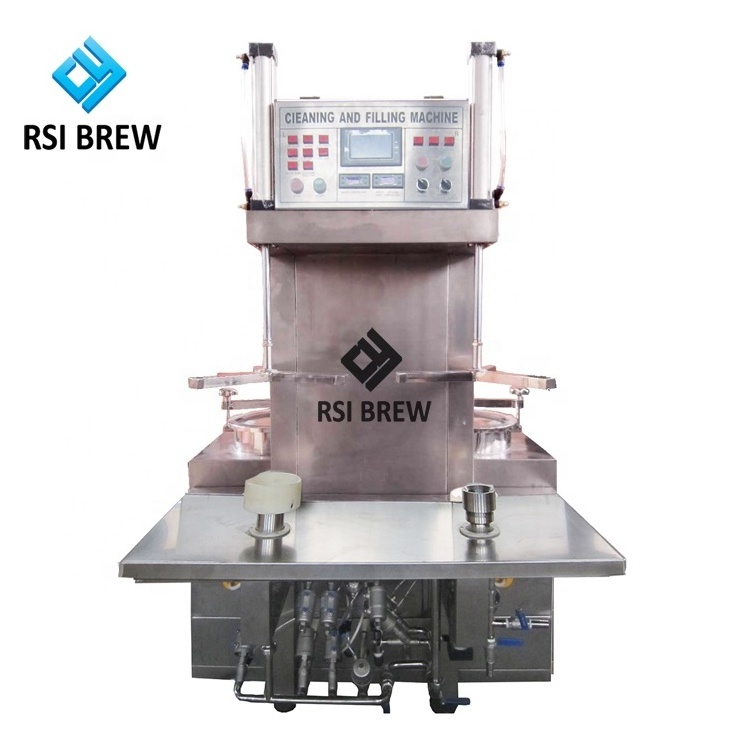

New automatic beer barrel Cleaning filling machine
| Technical Parameter | |
| Commodity name | Automatic Two-head Keg Washer & Filler |
| Dimension of working table | 1200 mm × 450 mm |
| Outside dimension |
1200 mm × 1350 mm × 1900 mm |
| Net weight | 175kg . |
| Power Supply | 220V/50HZ/1P or customized |
| Capacity of washing | 80-120 barrels for 20L size |
| Cleaning heads | 2 |
| Automatic or Manual one | Automatic |
| Total Power | 15 kw |
| Pressure of CO2 source | 0.4~0.6 Mpa |
| Pressure of steam inlet | 0.15~0.20 Mpa |
| Heating style | Electric heating |
| Customized | Allowed |
Cleaning Program
Loaded keg manual → Locked keg automatic → Drain → Water Rinsing → Gas bleed → Hot
Caustic Soda Rinsing → Gas bleed → (Hot caustic Soda circulation) → Water Rinsing → Gas
Bleed → Water Rinsing → Gas Bleed → External water → CO2 Gas Bleed (Discharge Oxygen)
Prepare pressing for CO2 → End (Take away keg)
Filling Program
Loaded keg manual → Start → Prepare pressing for CO2 → Filling and Exhausting → End
(Take away keg)
