Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kg
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP3-50KW-ON
-
Output Voltage (V):
-
100-240V/380-415V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-

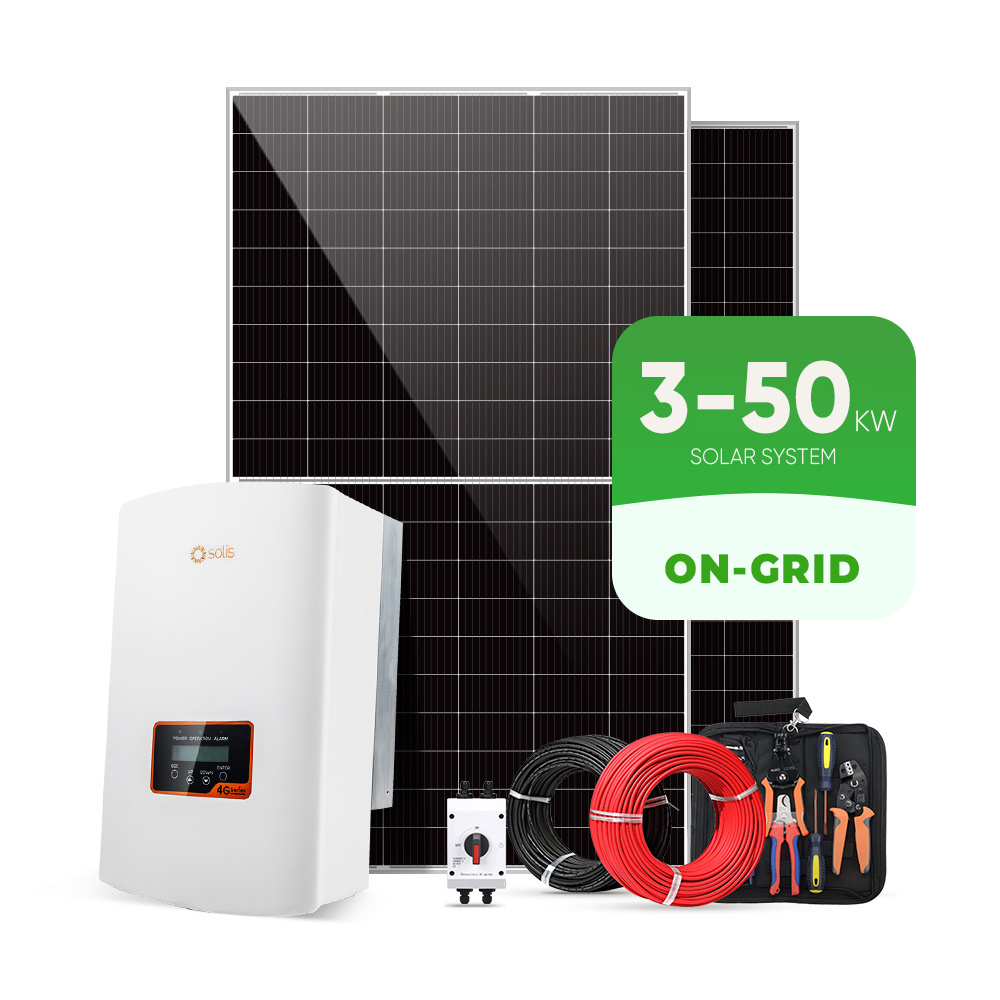

Product name:
-
Household On-grid Solar Power System
-
Specification:
-
On Grid 3-50KW
-
System Type:
-
On Grid Solar Photovoltaic System
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Mounting Structure:
-
Customzied
-
Usage:
-
Home Solar Energy Generation
-
Packing:
-
Wooden Box
-
PV Mounting System:
-
Customized
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP3-50KW-ON
-
Output Voltage (V):
-
100-240V/380-415V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Product name:
-
Household On-grid Solar Power System
-
Specification:
-
On Grid 3-50KW
-
System Type:
-
On Grid Solar Photovoltaic System
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Mounting Structure:
-
Customzied
-
Usage:
-
Home Solar Energy Generation
-
Packing:
-
Wooden Box
-
PV Mounting System:
-
Customized
Products Description
Warranty
How it works
What's Included
|
Model
|
SP-3KW-ON
|
SP-5KW-ON
|
SP-10KW-ON
|
||
|
Half Cut Mono 550W Solar Panel
|
6 Pieces
|
10 Pieces
|
21 Pieces
|
||
|
DC Disconnect Switch
|
1 Piece
|
2 Piece
|
3 Pieces
|
||
|
Hybrid Inverter
|
S6-GR1P3K
|
S6-GR1P5K
|
Solis-1P10K-4G
|
||
|
DC Cable 4mm2
|
100 meter
|
200 meter
|
400 meter
|
||
|
AC Disconnect Switch
|
1 Piece
|
1 Piece
|
1 Piece
|
||
|
MC4 Connector
|
10 Pairs
|
10 Pairs
|
10 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
|
Model
|
SP-20KW-ON
|
SP-30KW-ON
|
SP-50KW-ON
|
||
|
Half Cut Mono 550W Solar Panel
|
40 Pieces
|
60 Pieces
|
105 Pieces
|
||
|
DC Disconnect Switch
|
4 Piece
|
8 Piece
|
15 Pieces
|
||
|
Hybrid Inverter
|
Solis-3P20K-4G
|
Solis-3P15K-4G
2 Pieces |
Solis-1P10K-4G
5 Pieces
|
||
|
DC Cable 4mm2
|
600 meter
|
800 meter
|
1000 meter
|
||
|
AC Disconnect Switch
|
1 Piece
|
2 Piece
|
5 Piece
|
||
|
MC4 Connector
|
20 Pairs
|
30 Pairs
|
50 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Product packaging
Sunpal Project Case
Our Factory
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
