Quick Details
-
Core Components:
-
3-axis dispensing robot, Machine gantry and body, Dispensing system, Dispensing controller, Teaching pendant, 300ml pneumatic cartridge retainer
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SECOND
-
Weight (KG):
-
48
-
Core Components:
-
3-axis dispensing robot, Machine gantry and body, Dispensing system, Dispensing controller, Teaching pendant, 300ml pneumatic cartridge retainer
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
Product Overview
Special Function : File inserting
Powerful system compatibility with the Logoshop software allow to import mainstream design software, such as Auto CAD, Coral Draw, etc.to generate a different file formats ( NC, .AI,.DXF,.JPG, BMP, scanner, etc.)
300 ML cartridge silicone RTV glue with suck-back valve glue dispenser
The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.
Dispensing controller
Applicable for any fluid
using with precise dispensing valve to improve precision.
Model: SEC-100TD
Volume : 226L*216D*67Hmm
Inlet pressure: 0~0.7Mpa
Dispensing Time: 0.01~31 sec ± 0.1%
Power supply: 110/220 VAC
Application

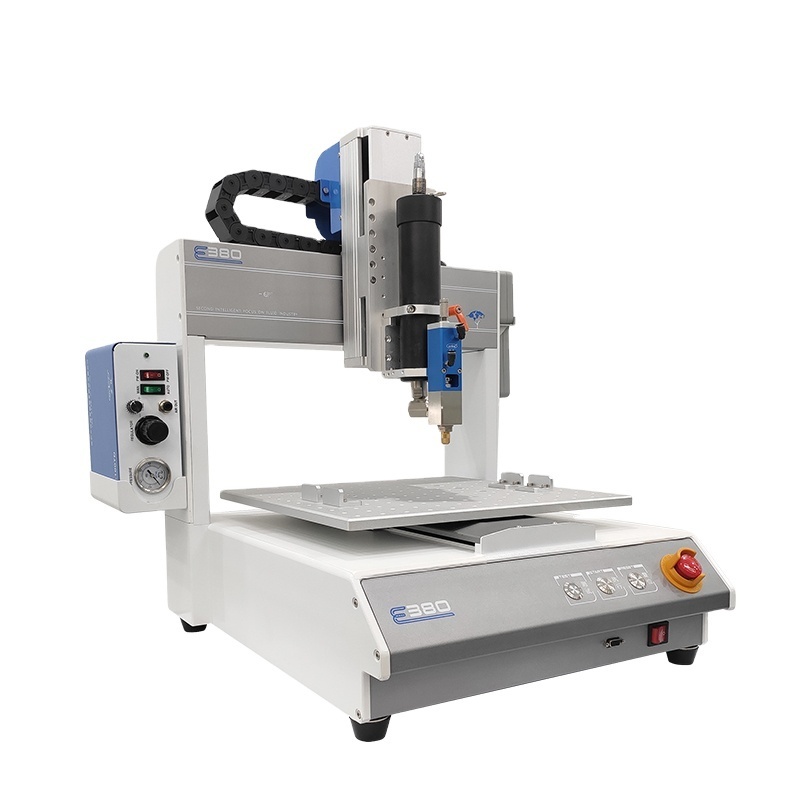

multi-functional benchtop automatic 3 axis adhesive dispenser glue robots LED&LCD&PCB glue dispensing machine
• Max 380x380x100mm stroke
• Compacted machine dimensions (300mm machine dimensions)
• Bigger working stroke (380mm working table)
• One-piece casting body
• Multifunctional, reliable, simple
• User friendly, and low maintenance
Different dispensing applicators:
1. 30cc syringe dispenser (low viscosity)
2. 30cc drip-proof dispenser (low viscosity)
3. 300ml pneumatic cartridge dispenser (medium viscosity)
4. 300ml cylinder ceramic rotate dispenser (medium to high viscosity)
5. 30cc hot melt (resin, glue stick, chips)
6. 1.5 gallons dispenser
7. 2600ml dispenser
|
Model
|
|
SEC-E380
|
|
|
|||
|
Working range
|
|
380(X)*380*(Y)*100(Z)mm
|
|
|
|||
|
Max payload
|
|
7kg/5kg
|
|
|
|||
|
Max travel speed
|
|
500mm/sec(XY)/100mm/sec(Z)
|
|
|
|||
|
Transfer method
|
|
Stepper motor, belt, precision rail
|
|
|
|||
|
XYZ position accuracy
|
|
±0.008mm
|
|
|
|||
|
Resolution
|
|
0.01
|
|
|
|||
|
Memory storage
|
|
999 program setup (each program store up to 65535 spots)
|
|
|
|||
|
Operating method
|
|
LCD, Teach pendant
|
|
|
|||
|
Motor
|
|
Precision stepper motor
|
|
|
|||
|
Movement patterns
|
|
3 axis spot to spot, continue line, arc
|
|
|
|||
|
I/O
|
|
1 input, 4 output (support expansion)
|
|
|
|||
|
Power supply
|
|
AC220V 50/60Hz 0.5kw
|
|
|
|||
|
Working environment
|
|
Temperature 0-40℃, Humidity 20-90%
|
|
|
|||
|
Machine dimension
|
|
520*583*645mm
|
|
|
|||
|
weight
|
|
48kg
|
|
|
|||
