Quick Details
-
Application:
-
Engineering machinery
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
h&l
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
1000000 kg
-
Product name:
-
Truck Crane
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
Engine type:
-
Single Cylinder
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
certification:
-
CE/ISO9001
-
Operator type:
-
Driver
Quick Details
-
Rated Loading Capacity:
-
80 Ton
-
Max. Lifting Height:
-
3M
-
Engine Brand:
-
WEICHAI
-
Application:
-
Engineering machinery
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
h&l
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
1000000 kg
-
Product name:
-
Truck Crane
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
Engine type:
-
Single Cylinder
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
certification:
-
CE/ISO9001
-
Operator type:
-
Driver
Product Description

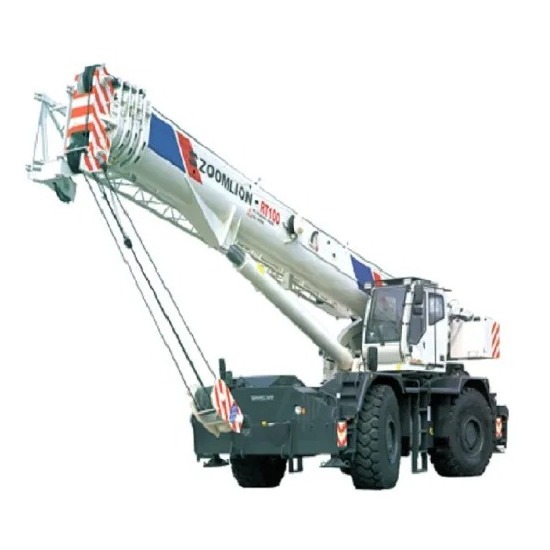

Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;
Short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.
Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle' s drive performance to its maximum, suitable for
any bad roads and job sites.
Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out "On tires" Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver' s or operator' s fatigue, thus improves the
working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and
high efficiency of the operation.
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;
Short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.
Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle' s drive performance to its maximum, suitable for
any bad roads and job sites.
Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out "On tires" Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver' s or operator' s fatigue, thus improves the
working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and
high efficiency of the operation.
|
Item
|
Unit
|
Value
|
|
|
Work performance
|
Max. rated lift capacity × work radius
|
kg.m
|
100000×3.0
|
|
|
Max. load moment of basic boom
|
kN.m
|
3339
|
|
|
Max. load moment of fully extended main boom
|
kN.m
|
1388
|
|
|
Max. lift height of fully extended main boom
|
m
|
45.6
|
|
|
Max. lift height of jib
|
m
|
63
|
|
Dimensions
|
Overall dimensions(L×W×H)
|
mm
|
14247×3620×3960
|
|
|
Outrigger spread (L×W)
|
mm
|
8000×7900
|
|
|
Main boom length (Fully retracted fully extended)
|
mm
|
10800-34000
|
|
|
Jib length (Jib section 1,jib sections 1+2)
|
mm
|
10000-17000
|
|
|
Boom angle
|
°
|
-3 - 78
|
|
|
Swing range
|
°
|
360 360° unlimited swing(Full range)
|
|
Work Speeds
|
Max. hoist rope speed (Main winch)
|
m/min
|
126
|
|
|
Min. boom extend time
|
s
|
170
|
|
|
Min. boom retract time
|
s
|
158
|
|
|
Min. boom derrick up time
|
s
|
82
|
|
|
Min. boom derrick down time
|
s
|
69
|
|
|
Swing speed
|
r/min
|
0-1.5
|
|
Hydraulic system
|
Rated work pressure
|
MPa
|
30
|
|
|
Rated work oil flow
|
L/min
|
500
|
|
|
Hydraulic oil tank capacity
|
L
|
1200
|
|
Mass
|
Complete vehicle mass
|
kg
|
65000
|
|
|
Front axle load
|
kg
|
33200
|
|
|
Rear axle load
|
kg
|
31800
|
|
Travel
|
Max. travel speed (Forwarsd / backwards)
|
km/h
|
24/15
|
|
|
Wheelbase
|
mm
|
4600
|
|
|
Treads (Front / rear)
|
mm
|
2860
|
