Quick Details
-
LA-28 Unit Configuration:
-
LF:2*8" HF:1*3"
-
LA-28 LF rated Power/ Peak:
-
8Ω 200W/8Ω peak 800W
-
LA-28 HF rated Power/ Peak:
-
8Ω 100W/8Ω peak 400W
-
LA-28 size:
-
700*380*250.1MM 20KG
-
LA-S18 Unit Configuration:
-
LF:1*18"
-
LA-S18 LF rated Power/ Peak:
-
8Ω 600W/8Ω peak 2400W
-
LA-S18 size:
-
730*700*532MM 32KG
-
Application:
-
Commercial, concert,Party, Stage, KTV,,Professional Performance
-

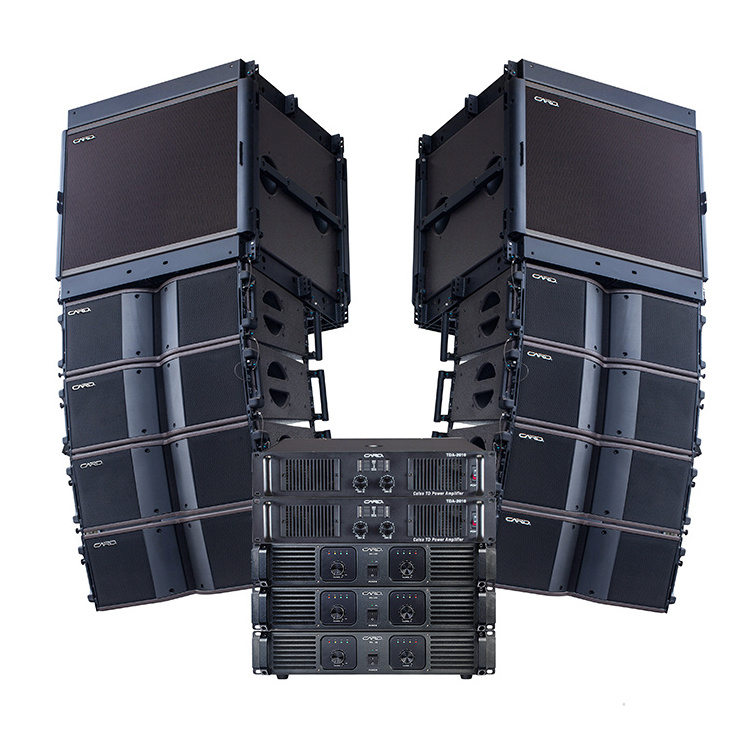

Line Array System:
-
8 Fullrange speaker + 2 Subwoofer + Amplifiers+Processor + Microphone
Quick Details
-
Model Number:
-
LA-28 & LA-S18
-
Place of Origin:
-
CHINA
-
Speaker Styles:
-
Double 8 Inch Line array / Single 18 inch subwoofer
-
LA-28 Unit Configuration:
-
LF:2*8" HF:1*3"
-
LA-28 LF rated Power/ Peak:
-
8Ω 200W/8Ω peak 800W
-
LA-28 HF rated Power/ Peak:
-
8Ω 100W/8Ω peak 400W
-
LA-28 size:
-
700*380*250.1MM 20KG
-
LA-S18 Unit Configuration:
-
LF:1*18"
-
LA-S18 LF rated Power/ Peak:
-
8Ω 600W/8Ω peak 2400W
-
LA-S18 size:
-
730*700*532MM 32KG
-
Application:
-
Commercial, concert,Party, Stage, KTV,,Professional Performance
-
Line Array System:
-
8 Fullrange speaker + 2 Subwoofer + Amplifiers+Processor + Microphone
Product Description
|
Model
|
LA-28
|
LA-S18
|
|
Type
|
Two-way line array system
|
Line array subwoofer system
|
|
Frequency Response
|
60Hz-20KHz
|
35Hz-1500Hz
|
|
Power handling
|
LF 200W(RMS)800W(PEAK)
HF 100W(RMS)400W(PEAK) |
600W(RMS)2400W(PEAK)
|
|
Sensitivity
|
LF:103dB(1W@1M)
HF:112dB(1W@1M)
|
97dB(1W@1M)
|
|
Max SPL
|
133dB
|
130dB
|
|
Drivers
|
LF 2×8"
HF1×3"
|
1x18"
|
|
Nominal impedance
|
8 ohm
|
8 ohm
|
|
Coverage
|
10° oder 120°H×10°V
|
/
|
|
Enclosure Material
|
birch board
|
birch board
|
|
Dimensions
|
700*380*251mm
|
730*700*532MM
|
|
Net weight
|
20kg
|
32kg
|
Packaging & Transportation
