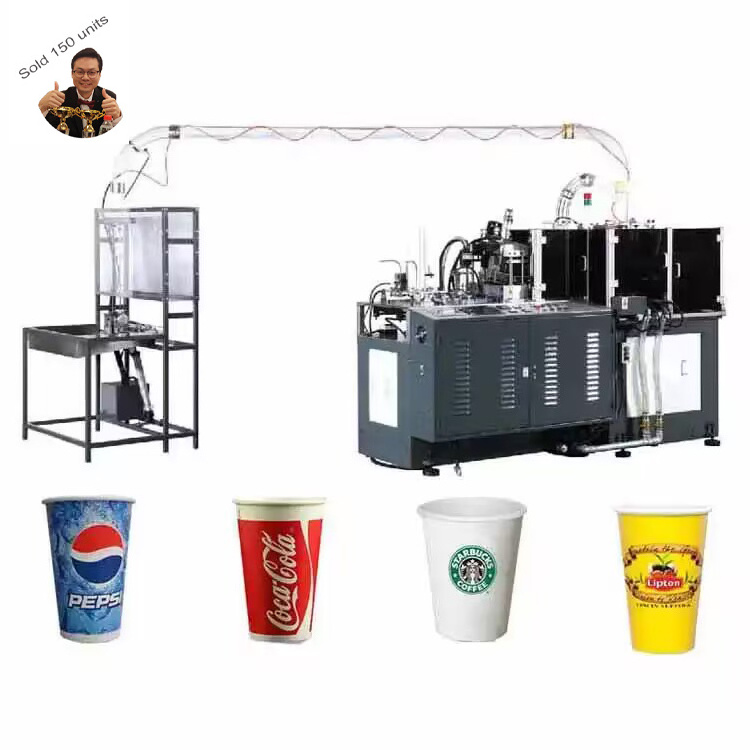

Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany
Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany

Small Business full automatic machines for manufacturing paper coffee tea cup making machine germany

FOB Reference Price: Get Latest Price
≥1 Sets
US $7900
≥3 Sets
US $4800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V
Power:
11.5kw, 11.5kw
Dimension(L*W*H):
1750x1350x1850mm
Weight:
2200 kg, 2200kg
Marketing Type:
Cheap & Fast Delivery
Item:
High Speed Paper Cup Making Machine Line
Model:
YGM-22D
Product Capacity:
50-90cups/min
Raw Material:
Single PE coating paper
Dimension of Main Machine:
1750x1350x1850mm
Dimension of Packing Machine:
1220x950x2080mm
Keyword (1):
Paper Cup Making Machine
Keyword (2):
Paper Cup Machinery

Quick Details

Production Capacity:
60-90pcs/min
Place of Origin:
Henan, China
Brand Name:
YUGONG
Voltage:
380V
Power:
11.5kw, 11.5kw
Dimension(L*W*H):
1750x1350x1850mm
Weight:
2200 kg, 2200kg
Marketing Type:
Cheap & Fast Delivery
Item:
High Speed Paper Cup Making Machine Line
Model:
YGM-22D
Product Capacity:
50-90cups/min
Raw Material:
Single PE coating paper
Dimension of Main Machine:
1750x1350x1850mm
Dimension of Packing Machine:
1220x950x2080mm
Keyword (1):
Paper Cup Making Machine
Keyword (2):
Paper Cup Machinery

Low Price New Arrived Automatic Disposable Paper Cup Making Machine price in pakistan

Product Description

YGM-22D middle speed paper cup forming machine adopts the latest technology to make it energy-efficient, economical and durable. The shape is exquisite and the molds can be changed. SiNi will strive continuously to pursue the excellence in science and technology innovation. This paper cup forming machine adopts open cam design, automatic oil lubrication system and PLC control system to improve the machine function and performance.

Technical Parameters

Model

YGM -22D

YGM -22S

Cup size

6oz-22oz

Raw material

Single PE coating paper

Single and double PE coating paper

Paper thickness

160-280gsm

160-300gsm

Top mouth diameter

60mm-90mm

Bottom diameter

40mm-70mm

Bottom depth

5mm-10mm

Height

60mm-180mm

Capacity

60-90 cups per minute

Main motor power

1.5kw

Total power

11.5kw

16kw

Energy consumption

6-6.5 kw / hour

7-7.5 kw/ hour

A ir consumption

0.4m3/min, 0.5-0.8Mpa

Weight

2200kg

Dimension

1750x1350x1850mm

1220x950x2080mm

1900x1350x2000mm

1220x950x2080mm

Middle Speed Paper Cup Forming Machine Min. and Max. Cup Size

Paper Cup Packing Machine
