Quick Details
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
China
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150 mm
-
Overall weight:
-
7000kg
-
Engine model:
-
J-XZGR100-4BT3.9
-
Max. Depth of Cut:
-
630mm
-
Max. Lift Above Ground:
-
450mm
-
Min. Turning Radius:
-
7.3m
-
Front / back axle load distribution:
-
70%
-
Overall Dimensions:
-
6880*2375*3150mm
-
Peak Torque:
-
760NM
-
Rated Power:
-
75kW
-
Reverse Speed:
-
25km/h
Quick Details
-
Forward Speed(km/h):
-
40
-
Engine Brand:
-
Top brand
-
Working diameter:
-
550mm
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
China
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150 mm
-
Overall weight:
-
7000kg
-
Engine model:
-
J-XZGR100-4BT3.9
-
Max. Depth of Cut:
-
630mm
-
Max. Lift Above Ground:
-
450mm
-
Min. Turning Radius:
-
7.3m
-
Front / back axle load distribution:
-
70%
-
Overall Dimensions:
-
6880*2375*3150mm
-
Peak Torque:
-
760NM
-
Rated Power:
-
75kW
-
Reverse Speed:
-
25km/h
Lower price 100HP Mini Motor Grader GR100 for sale
PRODUCT DETAILS
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

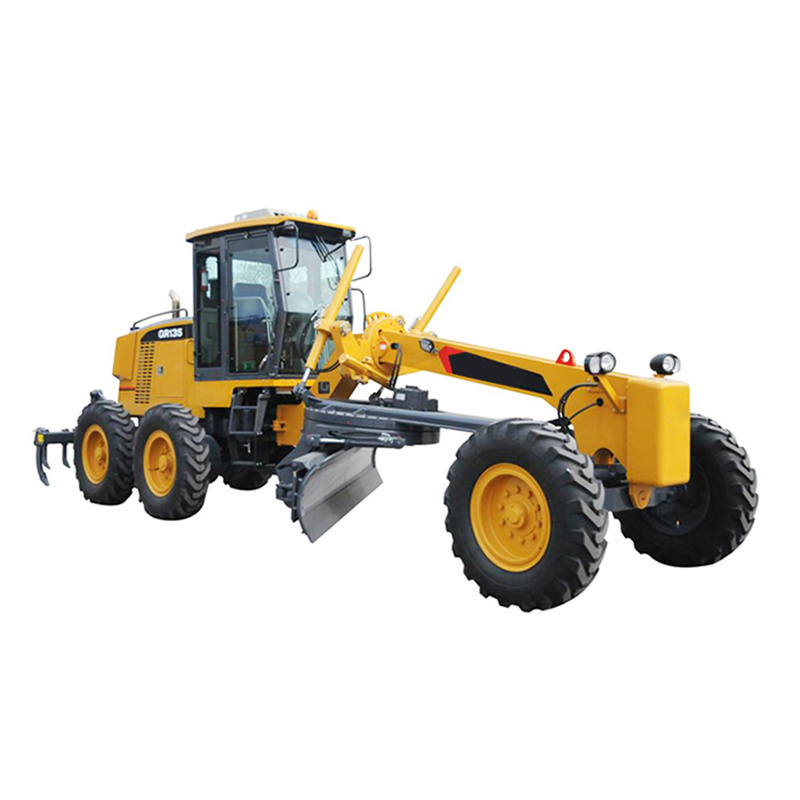

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
|
project
|
unit
|
parameter
|
|
Basic parameters
|
|
|
|
Rated power/speed
|
kW/rpm
|
75/2400
|
|
Overall dimensions (standard)
|
mm
|
6880X2375X3150
|
|
Machine weight (standard configuration)
|
kg
|
7000
|
|
Tire specifications
|
|
16/70-24 RP14
|
|
Ground clearance
|
mm
|
550
|
|
Wheelbase
|
mm
|
1900
|
|
Axle distance
|
mm
|
4885
|
|
Center and rear track
|
mm
|
/
|
|
Performance parameter
|
|
|
|
Forward speed
|
km/h
|
5, 10, 20, 39
|
|
Backward speed
|
km/h
|
8, 25
|
|
Traction force f=0.8
|
kN
|
39.2
|
|
Maximum climbing ability
|
|
≥25%
|
|
Tire inflation pressure
|
kPa
|
300
|
|
Working system pressure
|
Mpa
|
16
|
|
Transmission pressure
|
Mpa
|
1.3-1.8
|
|
Working parameters
|
|
|
|
Maximum steering angle of front wheel
|
°
|
±49
|
|
Blade cutting angle
|
°
|
±17
|
|
Swivel angle of blade
|
°
|
±15
|
|
Blade length X chord height
|
mm
|
/
|
|
Maximum tilt angle of front wheel
|
°
|
±27°
|
|
Maximum swing angle of front axle
|
°
|
5.7
|
|
Maximum swing angle of balance box
|
°
|
310
|
|
Maximum steering angle of frame
|
°
|
432
|
|
Minimum turning radius
|
m
|
45
|
|
Maximum lifting height of blade
|
mm
|
28-70
|
|
Maximum shovel depth of blade
|
mm
|
60
|
|
Maximum side angle of blade
|
°
|
3048x500
|
