Quick Details
-
Product name:
-
Fusing Press Machine
-
Voltage:
-
220/380v
-
Power:
-
18kw
-
Dimension:
-
2280*1650*1430mm
-
Weight:
-
600kg
-
Model:
-
HT-NHG1600A
-
Usage:
-
well process and glue various textile fabrics
-
MOQ:
-
1SET
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Weight (KG):
-
600
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
HENTO
-
Product name:
-
Fusing Press Machine
-
Voltage:
-
220/380v
-
Power:
-
18kw
-
Dimension:
-
2280*1650*1430mm
-
Weight:
-
600kg
-
Model:
-
HT-NHG1600A
-
Usage:
-
well process and glue various textile fabrics
-
MOQ:
-
1SET
-
Advantage:
-
Easy Operation High Efficiency
Long Service Life Roll Fabric Fusing Machine / Fusing Machine Fabric Garments / Fusing Press Machine

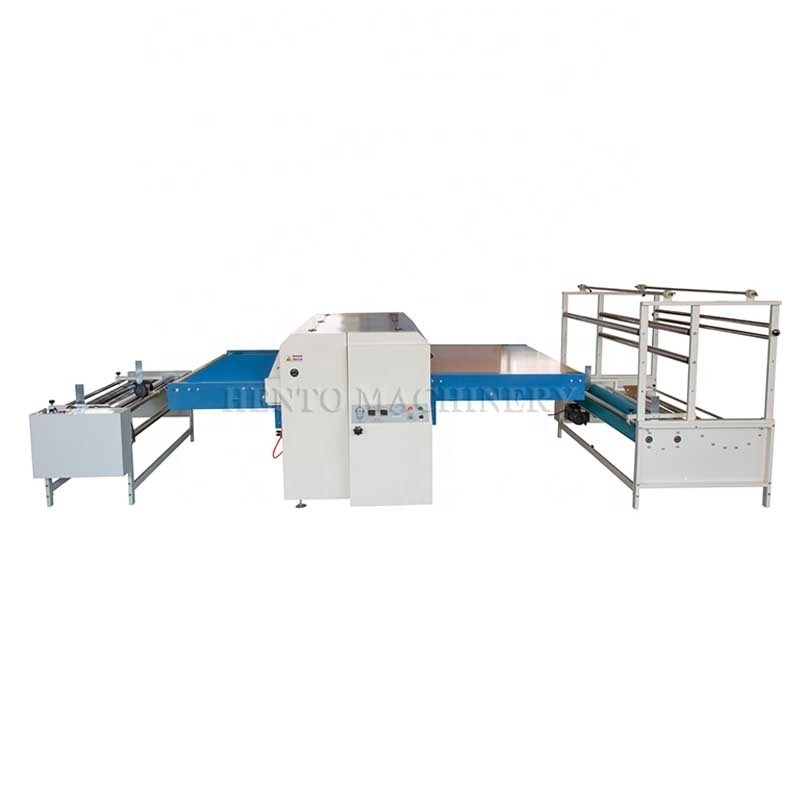

Th e whole line is composed of three equipment s , including 1 set of Unwinding Machine, 1 set of Fusing Machine and 1 set of Rolling Machine , which can complete the fully automated operation of fabrics from unwinding, fusing to rolling , saving labor.
This machine is fabric and sneakers pressure for binding processing of hot-pressing lining small desktop fusing machine,apply to all kinds of clothing brought lining,placket and sports shoes and other leather adhesive processing.
The corresponding agglutinate product flat quite washing,not easy corrugate,applicable to all kinds of resin brought lining,non-woven lining addlutinate,with simple structure,beautiful appearance generous,low noise,change with convenient.
1.Fully automatic
2 .The machine is equipped with tensioner adjustment and defle cting preventing control device;
3 .Independent electric control system,convenient to operate;
4 .Correct temperature control and small error;
5 .With stepless speed regulating function;
6 .With temperature control automatic stop device.
U nwinding Machine
|
Model |
HT-FJ600~1800 |
|
Voltage |
380v |
|
Power |
750w |
|
Dimension |
Matched to Fusing Machine |
|
Weight |
240kg |
Fusing Machine
| Model | HT-NHG1600A |
| Power | 18kw |
| Voltage | 220/380v |
| Dimension | 2280*1650*1430mm |
| Weight | 600kg |
|
HT-NHJ600 |
HT-NHJ900 |
HT-NHJ1200 |
HT-NHJ1600 |
HT-NHJ1800 |
|
|
Electric power |
6KW |
9.6kw |
12.6kw |
18KW |
22KW |
|
Motor Power |
380v/90w |
380v/90w |
380V/180W |
380V/200W |
380V/200W |
|
Fusing width |
0-600mm |
0-900mm |
0-1200mm |
0-1600mm |
0-1800mm |
|
Working speed |
1.037-10.37m/min |
||||
|
Max pressure |
0.4Mpa |
||||
|
Temperature |
0-200℃ |
||||
|
Fusing time |
6-30sec |
6-30sec |
10-34sec |
10-34sec |
10-34sec |
|
Dimension (mm) |
1650*1050*1210mm |
3350*1500*1210mm |
160*810*1290mm |
2280*1650*1430mm |
2950*2400*1200mm |
Rolling Machine
|
Model |
HT-SJ600~1800 |
|
Voltage |
380v |
|
Power |
200w |
|
Dimension |
Matched to Fusing Machine |
|
Weight |
240kg |
If you need further information, please contact us freely, we will do our best to cooperate with you.
