Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IRRIPLAST
-
Model Number:
-
1001
-
Product name:
-

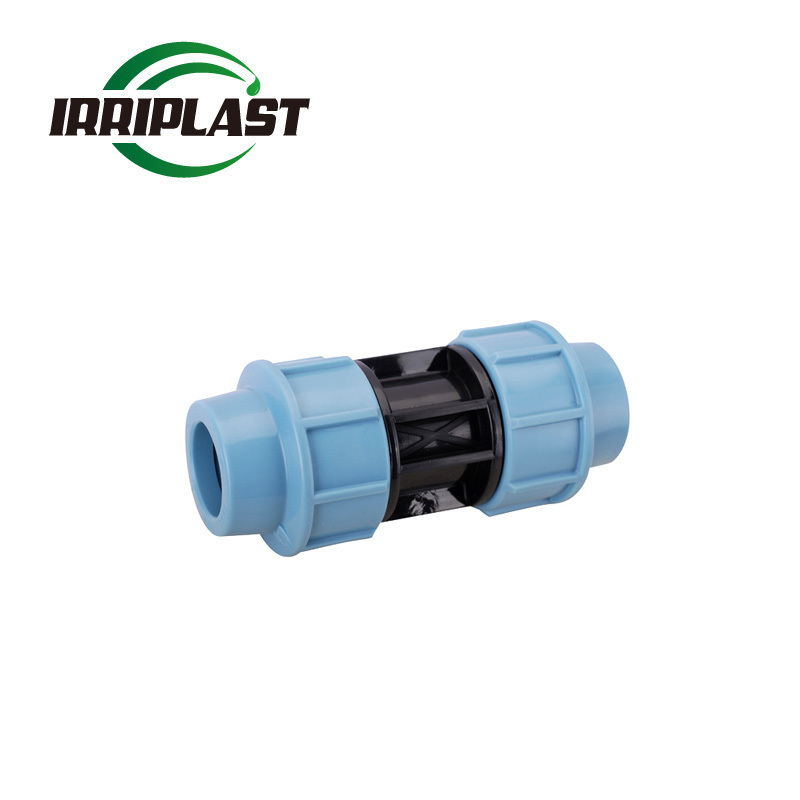

pp compression fittings for irrigation
-
Application:
-
Coupling
-
Thread:
-
bsp
-
Certificate:
-
COC ISO9001
-
Pressure:
-
PN10 PN16
-
Packing:
-
POLYBAG+ CARTON
-
Size:
-
20 25 32 40 50 63 75 90 110
-
MOQ:
-
10 pcs
-
Standard:
-
DIN Standard
-
Medium:
-
Water
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IRRIPLAST
-
Model Number:
-
1001
-
Product name:
-
pp compression fittings for irrigation
-
Application:
-
Coupling
-
Thread:
-
bsp
-
Certificate:
-
COC ISO9001
-
Pressure:
-
PN10 PN16
-
Packing:
-
POLYBAG+ CARTON
-
Size:
-
20 25 32 40 50 63 75 90 110
-
MOQ:
-
10 pcs
-
Standard:
-
DIN Standard
-
Medium:
-
Water
HDPE PE PN10 PN16 16Bar irrigation compression fittings water compression fittings PP clamp saddle PN10
PP Male Threaded Coupling Adaptor
IRRIPLAST PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
Working Pressures
IRRIPLAST PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
|
Dn |
PFA* |
PMA* |
PEA* |
|
16-63 |
16 |
20 |
24 |
|
75-110 |
10 |
12.5 |
15 |
|
Temperature( °C ) |
Da-10a25 |
Da+26a+35 |
Da+36a+45 |
|
16-63 |
16 |
20 |
24 |
|
75-110 |
10 |
12.5 |
15 |
Reference Standards
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Material:
|
Part |
Material |
|
Body(A) |
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
|
Blocking bush(D) |
Polypropylene |
|
Nut(B) |
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
|
Clinching ring(C) |
Polyacetal resin(POM)with high mechanical resistance And hardness |
|
O Ring gasket(E) |
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
|
Reinforcing ring |
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” |
1. Are you a manufacture or trading company ?
We are well-know manufacturer for irrigation system in the world with more than 20 years industry experience. The predecessor of our company is NINGBO KEXING PIPE INDUSTRIAL CO.,LTD. which is committed to pipe systems.
2. Do you offer OEM service ?
Yes. Our products based on the IRRIPLAST Brand. We offer the OEM service, with the same quality. Our R&D team will design the product according to the customer’s requirement.
3. what’s your MOQ ?
Our MOQ is 5 Cartons for one type.
4. What is your delivery time ?
The irriplast band leadtime is around 15 days.
The OEM service lead time is around 30 days.
5. What is your payment terms ?
30 T/T deposit ,70% before delivery /copy of the B/L / Letter of Credit.
6. What is the location of your company?
Located in NINGBO , ZHEJIANG, CHINA.
It takes 2.5 hours from Shanghai to our company by fast train.
It takes 2.5 hours from Guangzhou to our company by air.
7. How to get a sample ?
We would sent you the sample for free and the freight is collected.
