Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK HOWO
-
Weight (KG):
-
15000 kg
-
Color:
-
Request Customized
-
Driving Type:
-
6*4 Left Hand Drive
-
WheelBase:
-
4600+1400mm
-
Curb Weight:
-
13820kg
-
Loading capacity:
-
28ton
-
Tire specification:
-
12.00R20
-
Cab:
-
HOWO A7-W
-
Maximum speed:
-
101
-
Front Axle:
-
HF9
-
Rear Axle:
-
HC16
Quick Details
-
Engine Capacity:
-
9.726
-
Size:
-
10415x2496x3630mm
-
Gross Vehicle Weight:
-
25000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK HOWO
-
Weight (KG):
-
15000 kg
-
Color:
-
Request Customized
-
Driving Type:
-
6*4 Left Hand Drive
-
WheelBase:
-
4600+1400mm
-
Curb Weight:
-
13820kg
-
Loading capacity:
-
28ton
-
Tire specification:
-
12.00R20
-
Cab:
-
HOWO A7-W
-
Maximum speed:
-
101
-
Front Axle:
-
HF9
-
Rear Axle:
-
HC16
Product Description

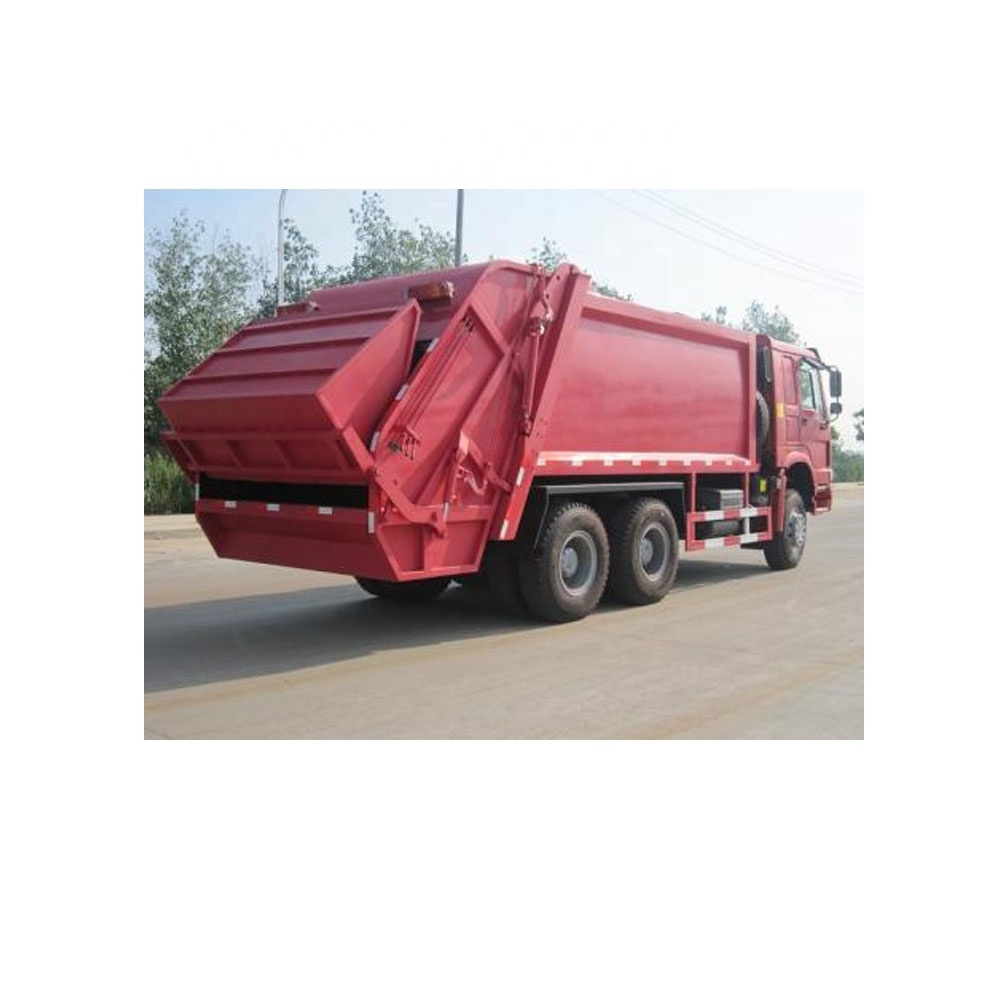

Rear compactor garbage truck
1. Equipped with double pump and double circuit hydraulic system, high efficiency and energy saving; With two-way compression function, the density of ordinary solid waste can reach 700-800kg/m3 after compression;
2. Equipped with two sets of control mode of electric control and manual control, electric control is the main and manual is the auxiliary, high attendance;
3. Equipped with electronic control automatic acceleration and fixed speed system to make the operation efficient and energy saving;
4. The sealing device adopts patent sealing tape technology, which is automatically locked by hydraulic pressure. The compression of the tape is 6-8mm, and the sealing is reliable without sewage leakage. This technology is at the leading level in China.
5. A variety of feeding mechanisms can be selected, such as square barrel manipulator, round barrel manipulator, square and round barrel mixed manipulator multi-functional manipulator, dustpan manipulator, etc., and can increase specific functions according to demand.
6. The filling mechanism has the function of obstacle avoidance when working. In case of large and hard obstacles, the scraper can be overloaded and turned on to avoid collision, so as to avoid damage to the filling mechanism;
7. The volume and loading capacity of compartment and rear hopper have obvious advantages over similar domestic products.
Specification
|
SPECIFICATION
|
|
|
|
VEHICLE SPECIFICATION
|
DESCRIPTION
|
|
|
Truck Model
|
ZZ1257N4647N1
|
|
|
Type of Vehicle
|
28M3 compactor truck
|
|
|
Truck Brand
|
SINOTRUK—HOWO
|
|
|
Driving Position
|
Left hand Driving
|
|
|
The Total Mass
|
25,000kg
|
|
|
Dead Weight
|
13820
|
|
|
Max speed(km/h)(km/h)
|
101
|
|
|
Color
|
Optional
|
|
|
Manufacture
|
China National Heavy Duty Truck Group Co., Ltd.
|
|
|
Chassis & Add Components
|
|
|
|
Frame Details
|
parallel ladder with U-profiles and riveted cross members
|
|
|
Dimension(Lx W xH)(unloaded)(mm)
|
10415x2496x3630
|
|
|
Approaching angle/Departure angle(°)
|
15/12
|
|
|
Overhang(front/rear) (mm)
|
1540/2875
|
|
|
Wheel base (mm)
|
4600+1400
|
|
|
Engine
|
|
|
|
Model
|
WD615.47
|
|
|
Brand
|
SINOTRUK
|
|
|
Power
|
371HP
|
|
|
Emission
|
EURO II
|
|
|
Displacement(L)
|
9.726
|
|
|
Type
|
water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
|
Kind of Fuel
|
Diesel
|
|
|
Clutch & Gear Box System
|
|
|
|
Clutch
|
Single-plate dry clutch, hydraulically operating with air assistance
|
|
|
Gear Box
|
HW19710
10 forwards and 2 reverse. |
|
|
Brand
|
SINOTRUK
|
|
|
Axles
|
|
|
|
Front Axle Model
|
HF9 axle. Capacity: 9000kg
|
|
|
Rear Axle
|
HC16 axle. Capacity:2*16000kg
|
|
|
Electrical System
|
|
|
|
Battery
|
2X12V/165Ah
|
|
|
Alternator
|
28V-1500w
|
|
|
Starter
|
7.5Kw/24V
|
|
|
Brake System
|
|
|
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|
Steering system
|
|
|
|
Brand
|
Germany Brand
|
|
|
Wheels & Tyres
|
|
|
|
Type
|
12.00R20
|
|
|
Material
|
Steel tire
|
|
|
Quantity
|
10+1 spare
|
|
|
Cabin
|
|
|
|
Type
|
HOWO A7-W standard cabin
|
|
|
(single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
|
|
|
|
Body
|
|
|
|
Volume of body(m3)
|
28
|
|
|
Volume of filler(m3)
|
2.5
|
|
|
Time of one filling cycle(s)
|
<25
|
|
|
Time of discharge(s)
|
<45
|
|
|
Pressure of fluid system(Mpa)
|
20
|
|
|
Hydraulic system control
|
Manual
|
|
|
Max compression force(kg)
|
>25000
|
|
|
Lifting time of filler(s)
|
8-10
|
|
|
The hydraulic oil tank volume
|
150L
|
|
|
Oil cylinder type
|
Double acting piston
|
|
|
Operating voltage
|
24V
|
|
|
Reversing valve
|
Multiple directional control valve
|
|
Packing & Delivery
Packaging Details:
All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
