Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender

Automatic 3D CNC Stainless Steel Manual Square Pipe Bending Machine CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender

FOB Reference Price: Get Latest Price
≥1 Sets
US $4000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
DLX
Power (kW):
22
Weight (KG):
7000
Marketing Type:
Hot Product
Machine Type:
CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Bending pipe diameter and pipe thickness:
≤ 114*10mm
Max. bending radius:
R520mm
Standard core length:
4500mm
Allowable elbow of pipe fittings:
16
System pressure:
14MPa
Hydraulic system control:
Solenoid valve
Fuel tank capacity:
350L
Used for:
stainless steel pipe bending machine, iron and aluminium pipe
Product name:
Hydraulic core bending machine

Quick Details

Max. Bending Angle (Deg):
180
Bending Precision (Deg):
Place of Origin:
Henan, China
Brand Name:
DLX
Power (kW):
22
Weight (KG):
7000
Marketing Type:
Hot Product
Machine Type:
CNC Square Pipe Bending Machine 5 Inch Exhaust Tube Bender
Bending pipe diameter and pipe thickness:
≤ 114*10mm
Max. bending radius:
R520mm
Standard core length:
4500mm
Allowable elbow of pipe fittings:
16
System pressure:
14MPa
Hydraulic system control:
Solenoid valve
Fuel tank capacity:
350L
Used for:
stainless steel pipe bending machine, iron and aluminium pipe
Product name:
Hydraulic core bending machine

China Manufacturer Sells DW50NC Automatic CNC Tube Bending Machine Hydraulic Pipe Bending Machine Pipe And Tube Bending Machines

Product Description
1. Fully automatic and CNC pipe bending machine.

2. Exhaust tube bending machine equipped with servo motor programmable axis,2axis 3 axis, 4 axis or 5 axis...
3. Feeding: servomotor drive; Rotation: servomotor drive
4. Bending: hydraulic and encoder control; Servomotor with reducer.
5. 2inch pipe bending machine use imported hydraulic system and PLC unit or IPC.
6. Automatic lubrication system for moving areas.
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage.
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the
hightemperature.
10. Touch screen and human/machine interface control provide user friendly operations

Maximum bending pipe diameter Φ38mm × 2mm
Bending radius R180mm
Bending angle 190 °
Control System Touch screen control
Hydraulic motor 4kw
Pressure 12Mpa
Fuel tank capacity 150L
Weight 1000kg
Dimenison 2700*700*1100mm

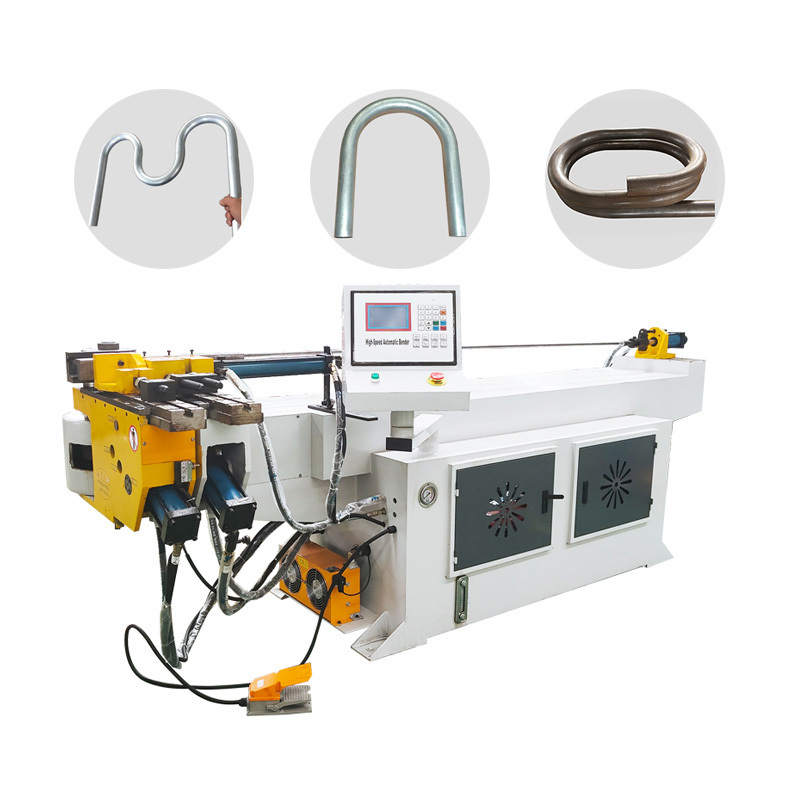

Machine photo
More pipe samples
Packing:

1. Packaging:  1)Wrapped by proctective film;

2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
