The automatic paper lid machine uses one-time molding and automatic paper feeding, creasing, embossing,punching, feeding plate to die, heating, fold, knurling, pushing, counting and other series of automatic functions.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
220V/380V50HZ
-
Power:
-
17KW, 17 KW
-
Dimension(L*W*H):
-
3250*1400*1950mm
-
Weight:
-
2900 kg
-
Marketing Type:
-
Paper Cup Lid Forming Machine
-
Name:
-
PL-145 Automatic Paper Lid Forming Machine
-
Keyword:
-
paper bowl lid machine
-
Type:
-
PL-145
-
Paper lid size:
-
height (8-15)mm, diameter (55-145)mm
-
Item:
-
paper cover making machine
-
Product Keywords:
-
paper cap machine
-
Production capacity:
-
60-90 pcs/min
-
Power source:
-
220V/380V 50HZ
-
Suitable material:
-
250-350g/m2 single and double coated paper, raruish and coated paper
Quick Details
-
Production Capacity:
-
60-90 pcs/min
-
Product Type:
-
paper lid machine
-
Processing Type:
-
paper lid cover making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
220V/380V50HZ
-
Power:
-
17KW, 17 KW
-
Dimension(L*W*H):
-
3250*1400*1950mm
-
Weight:
-
2900 kg
-
Marketing Type:
-
Paper Cup Lid Forming Machine
-
Name:
-
PL-145 Automatic Paper Lid Forming Machine
-
Keyword:
-
paper bowl lid machine
-
Type:
-
PL-145
-
Paper lid size:
-
height (8-15)mm, diameter (55-145)mm
-
Item:
-
paper cover making machine
-
Product Keywords:
-
paper cap machine
-
Production capacity:
-
60-90 pcs/min
-
Power source:
-
220V/380V 50HZ
-
Suitable material:
-
250-350g/m2 single and double coated paper, raruish and coated paper

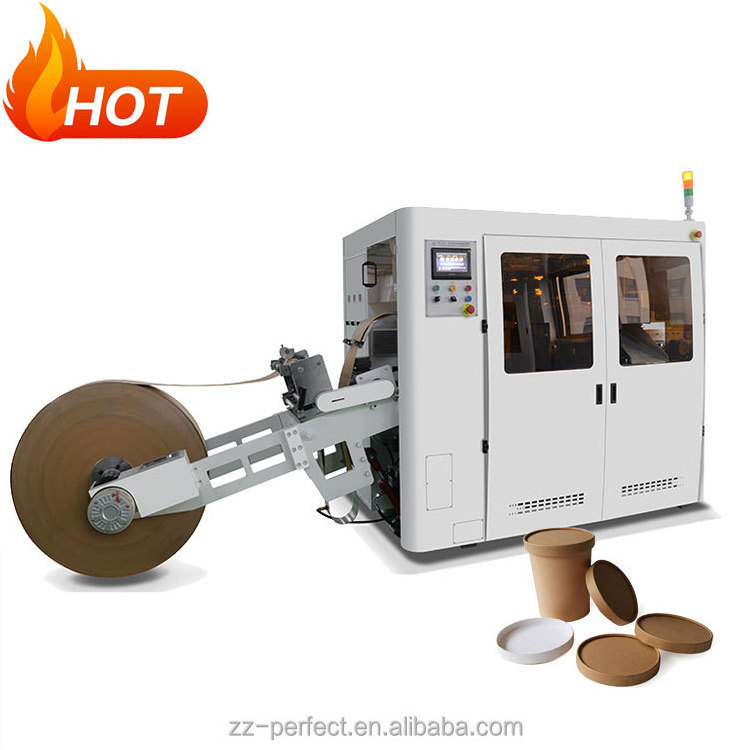

Automatic High Quality PL 145 paper bowl lid Coffee Paper Cup Lid Forming Machine
Products Description
♦Application♦
Model PL-145 Automatic paper lid/cover machine is the ideal equipment which can produce different size lids of paper soup bowl cover,coffee cup lid,ice cream lid.
♦Technical parameters♦
|
Type
|
PL-145
|
|
Paper lid size
|
height (8-15)mm, diameter (55-145)mm
|
|
Production capacity
|
60-90 pcs/min
|
|
Power source:
|
220V/380V 50HZ
|
|
Suitable material:
|
250-350g/m2
single and double coated paper
raruish and coated paper
|
|
Voltage
|
AC380V/50HZ
|
|
Power:
|
17 KW
|
|
Air source
|
Air consumption 0.02m3 / min
working pressure 0.3Mpa
|
|
Package size:
|
2900KG, 6.99CBM (3250*1400*1950m)
|
♦Features♦
1.The automatic paper lid machine uses one-time molding and automatic paper feeding, creasing, embossing, punching, feeding plate to die, heating, fold, knurling, pushing, counting and other series of automatic functions.
2.It adopts advanced PLC control, which makes the machine higher speed and much more stable.
3. Precise cutting, one-time forming, automatic fault alarm, counting, and paper detection are adopted.
4..The lid made by one disc paper,save cost,paper lid side folded and gentle lock on cup,can block little water out.
5.One person can operate the machine.
3.It can save raw material and energy consumption is low.
Product Details
Roll Paper feeding
Cam and gear
Creasing and cutting
Ten-station mold forming
Paper detection
Finished product
