Quick Details
-
Brand Name:
-
Ufine
-
Model Number:
-
UFX904560-2P
-
Battery Size:
-
18*45*63mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
110g
-
The charging ratio:
-
Typically 0.2C to 0.5C
-
The discharge rate:
-
Typically 0.2C to 0.5C
-
Capacity:
-
6000mAh
-
Nominal Voltage:
-
3.7V
-
Charging voltage:
-
4.2V
-
Dimension:
-
18*45*63mm
-
Charging Current:
-
Typically 0.2C to 0.5C
-
Discharge Current:
-
Typically 0.2C to 0.5C
-
Discharging Temperature:
-
-20°C to 60°C
-
Storage Temperature:
-
0°C to 45°C
-
Cycle Life:
-
Typically 500 to 800 cycles
-
Warranty:
-
12 months
Quick Details
-
Storage Type:
-
0-45℃
-
Anode Material:
-
NCM
-
Application:
-
Toys, Home Appliances, Consumer Electronics, Lights
-
Brand Name:
-
Ufine
-
Model Number:
-
UFX904560-2P
-
Battery Size:
-
18*45*63mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
110g
-
The charging ratio:
-
Typically 0.2C to 0.5C
-
The discharge rate:
-
Typically 0.2C to 0.5C
-
Capacity:
-
6000mAh
-
Nominal Voltage:
-
3.7V
-
Charging voltage:
-
4.2V
-
Dimension:
-
18*45*63mm
-
Charging Current:
-
Typically 0.2C to 0.5C
-
Discharge Current:
-
Typically 0.2C to 0.5C
-
Discharging Temperature:
-
-20°C to 60°C
-
Storage Temperature:
-
0°C to 45°C
-
Cycle Life:
-
Typically 500 to 800 cycles
-
Warranty:
-
12 months
Specification
|
1、Mechanical Characteristics
|
|
|
|
|||
|
Cell:
|
UFX904560-2P
|
PCM:
|
YES
|
|||
|
NTC:
|
NO
|
Weight:
|
110g
|
|||
|
Configuration:
|
1S2P
|
Demension
|
18*45*63mm
|
|||
|
2、Electrical Specification
|
|
|
|
|||
|
Capacity:
|
6000mAh
|
Nominal Voltage:
|
3.7V
|
|||
|
Energy:
|
22.2Wh
|
Internal Impedance：
|
less than 180mΩ
|
|||
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
|||
|
Max. Charge Current:
|
3000mA
|
Max. Discharge Current:
|
3000mA
|
|||
|
Standard Charge Current:
|
1200mA
|
Standard Discharge Current:
|
1200mA
|
|||
|
Charge Temp. Range:
|
Typically 0°C to 45°С
|
Discharge Temp. Range
|
-20°C to 60°С
|
|||
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life:
|
100 cycles ≥92%
|
|||
|
|
3 moths at -20℃ to +45℃
|
|
300 cycles ≥88%
|
|||
|
|
1 month at -20℃ to +60℃
|
|
500 cycles ≥80%
|
|||
|
3、Cell protection
|
|
|
|
|||
|
Overcharge Detection ：
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection：
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
|||
|
Overcurrent Detection：
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection：
|
Yes
|
|||
Products Description

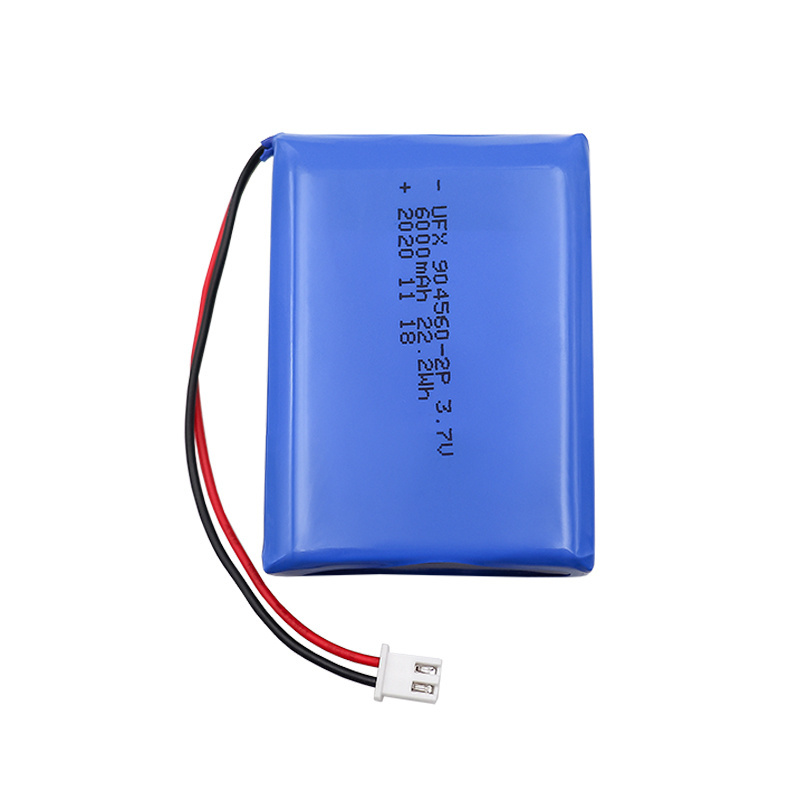

Ufine New Energy is a leading manufacturer of lithium-ion cells, specializing in the production of high-quality rechargeable batteries. Our UFX 904560-2P 6000mAh 3.7V battery is specifically designed for security equipment, offering a large capacity and reliable performance. As a wholesale supplier, we ensure that our lithium-ion batteries meet the highest quality standards.
At Ufine New Energy, we pride ourselves on our extensive experience and expertise in the field of battery manufacturing. Our state-of-the-art production facilities and advanced technology enable us to produce lithium-ion polymer battery packs that deliver exceptional performance and durability.
We understand the importance of providing our customers with reliable and safe products. Therefore, each of our batteries undergoes strict quality control processes to ensure consistent performance and long-lasting functionality. Our commitment to quality extends to our customer service as well, as we strive to meet our customers' specific requirements and provide them with the best possible solutions.
If you are looking for high-quality lithium-ion rechargeable batteries, Ufine New Energy is your reliable partner. Contact us today to learn more about our products and discuss your specific needs.
