Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
172*73*116cm
-
Machine Weight:
-
360kg
-
Bucket capacity:
-
500kg
-
Engine brand:
-
Ducar, other famous brand
-
Emission certification:
-
Euro-V stage and EPA
-
Displacement:
-
212cc
-
Pump:
-
Duplex pump
-
Pump brand:
-
Danfoss or Marzocchi
-
Wroking pressure:
-
16.5Mpa
-
Track width:
-
18cm
-
Drive type:
-
Track
-
Transmission:
-
Fullly hydraulic system
-
Load capacity:
-
500KGS
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United Kingdom, United States
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Certification:
-
TUV Rheinland CE-MD/EMC
Quick Details
-
Engine Brand:
-
Loncin
-
Power:
-
4.2kw
-
Brand Name:
-
AUSTTER
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
172*73*116cm
-
Machine Weight:
-
360kg
-
Bucket capacity:
-
500kg
-
Engine brand:
-
Ducar, other famous brand
-
Emission certification:
-
Euro-V stage and EPA
-
Displacement:
-
212cc
-
Pump:
-
Duplex pump
-
Pump brand:
-
Danfoss or Marzocchi
-
Wroking pressure:
-
16.5Mpa
-
Track width:
-
18cm
-
Drive type:
-
Track
-
Transmission:
-
Fullly hydraulic system
-
Load capacity:
-
500KGS
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United Kingdom, United States
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Certification:
-
TUV Rheinland CE-MD/EMC
Click Here >>>>> Contact Us To Get More Infomations
Item No. | T50 | Loding capacity | 500kg |
Engine | Single cylinder, four stroke, air cooling | Traveling speed | 0-3.5km/h |
Displacement | 212cc | Limited grade ability | 20 degrees |
Net power | 4.1kw/3600rpm | Min. Ground clearance | 100mm |
Transmission | Fully hydraulic system | Min. Turning radius | 850mm |
Working pressure | 16.5Mpa | Wheel base | 525mm |
Driven type | Track | Track base | 345mm |
Track width | 180mm | Overall length | 1715mm |
Track roller | 4 pcs | Overall width | 730mm |
Track tensioning | Yes | Overall height | 1160mm |
Hydraulic pump | Duplex gear pump | Gross weight | 390kgs |
Pump brand | Danfoss or Marzocchi | Packing method | Plywood case |
Hydraulic motor | 2 pcs | Package size | 175*75*120cm |
Oil Radiatior | Yes | 20GP | 9 pcs |
Hydraulic oil tank | 20.5L | 40HQ | 38 pcs |

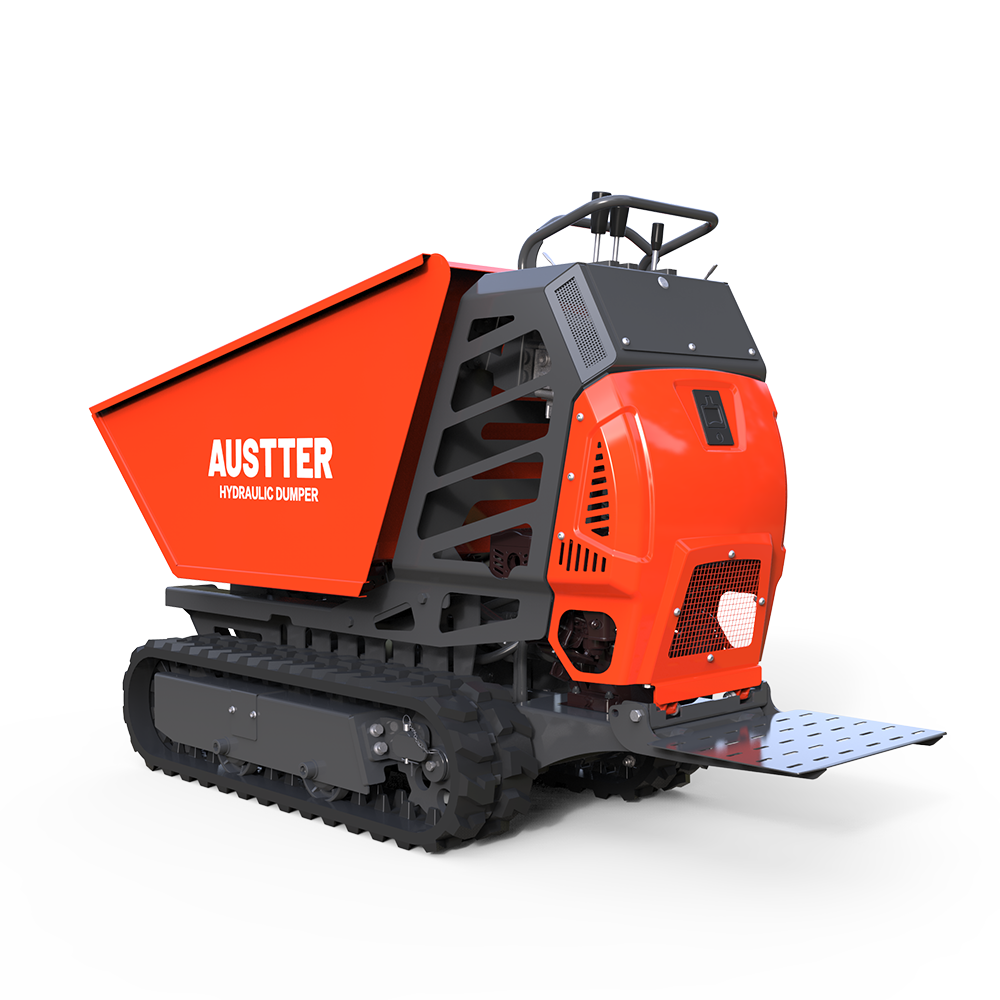

T50 is a fully hydraulic tracked dumper with 500kg loading capacity which is independently developed and designed by us. The most core components of gear pump are Danfoss from Denmark and Marzocchi from Italy. The Hydraulic motor is well-known domestic brands to ensure the reliability of the hydraulic system. We added a radiator to lower the temperature of the hydraulic oil, so that the T50 can continue working.This hydraulic dumper can reach 3.5km/h when fully loaded and is equipped with two 180mm wide tracks to adapt all terrain.Besides, there is a pedal at the end that operators can stand on during complicated road conditions.
|
Click Here >>>>> Contact Us To Get More Infomations
1 | 2000W and 6000W Laser cutting machine can meet the cutting capacity 5000 pcs per month. |
2 | We have manual spot welding and 4 units YASKAWA welding robots, which can meet the welding capacity 5000 pcs per month |
3 | Electrostatic spraying line can meet the spraying capacity of more than 10,000 units a month |
4 |
We have an assembly workshop of 8000 square meters, which can meet the assembly capacity of 5000 units a month. |
5 | 2 pcs CNC Press brake has better precision and higher efficiency. |
6 | 3 pcs CNC Lathe are more standard and more efficient. |
Click Here >>>>> Contact Us To Get More Infomations
Click Here >>>>> Contact Us To Get More Infomations
Q | What is the minimum order quantity? |
A |
Minimum order quantity: 1 unit.
|
Q | How long is the delivery time? |
A |
We have enough spare parts inventory to guarantee the delivery time, the general delivery time is 30 days, if it is a urgent order, we can deliver it in 20 days.
|
Q | What payment methods do you accept? |
A |
We support various payment methods, we can accept 20% or 30% as deposit. If it is a return order, we can receive 100% payment by copy B/L. If it is an e-commerce or supermarket customer, we can even receive 60 or 90days billing period. We will adjust the payment method flexibly.
|
Q | Can I mix different models in one container? |
A |
Yes, different models can be loaded in one container. We have the loading software to calculate the best loading plan.
|
Q | Where is the market for the product and what is the market advantage? |
A |
Our market covers the entire European and American countries, and exports to more than 45 countries. In 2019, the export volume reached 10 million US dollars. Moreover, sales have been increasing for three consecutive years, which is entirely dependent on AUSTTER's own product quality, new product development capabilities, complete TUV-CE certificates and reliable pre-sales and after-sales services.
|
Q | Can you explain the warranty? |
A |
Usually our warranty is one year. We will send you replacement part by airplane way which is free if that is not damaged for human reasons within one year. In addition, except commercial engines are three years warranty, other engines are one year warranty.
|
Q | How to visit AUSTTER? |
A |
We warmly welcome all distributors, agents and brand owners to visit. Our factory is located in Weifang city, Shandong Province. The following is the route to the factory for your reference. 1). Beijing-High-speed rail (airplane)-Weifang (Qingdao Liuting Airport/Jinan Yaoqiang Airport), we will have someone to pick you up and drop off from Qingdao or Jinan. 2). From Shanghai-High Speed Rail (Airplane)-Weifang (Qingdao Liuting Airport/Jinan Yaoqiang Airport), we will have someone to pick you up and drop off from Qingdao or Jinan. 3). Ningbo/Yiwu-High Speed Rail (Aircraft)-Weifang (Qingdao Liuting Airport/Jinan Yaoqiang Airport), we will have someone to pick you up and drop off from Qingdao or Jinan. If it is not convenient to buy high-speed rail or plane tickets, please let us know, and we will assist you in buying tickets and checking in to the hotel.
|
