Embedded
ultra-thin
rim design
More suitable for
embedding.
- Product Details
- {{item.text}}
Quick Details
-
LCD Screen Size:
-
7"/8"/10.1"/13.3"/10.4"/12.1"/15"/15.6"/17"/19"/21.5"
-
Resolution:
-
1024*600/1024*768/1920*1080
-
Brightness:
-
300 nits (1000 nits optional)
-
Contrast Ratio:
-
1000:1
-
Touch Screen:
-
Capacitive Touch/ Resistive Touch
-
Touch Point:
-
10-point touch/ Single Touch Screen
-
Respond time:
-
<5ms
-
Interface:
-
1*USB-B+1*VGA+1*DC+1*HDM1
-
Installation type:
-
Embedded,Wall-Mounted,Desktop,VESA
-
Key Words:
-
industrial touch monitor
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
Zhichun
-
Place of Origin:
-
Guangdong, China
-
LCD Screen Size:
-
7"/8"/10.1"/13.3"/10.4"/12.1"/15"/15.6"/17"/19"/21.5"
-
Resolution:
-
1024*600/1024*768/1920*1080
-
Brightness:
-
300 nits (1000 nits optional)
-
Contrast Ratio:
-
1000:1
-
Touch Screen:
-
Capacitive Touch/ Resistive Touch
-
Touch Point:
-
10-point touch/ Single Touch Screen
-
Respond time:
-
<5ms
-
Interface:
-
1*USB-B+1*VGA+1*DC+1*HDM1
-
Installation type:
-
Embedded,Wall-Mounted,Desktop,VESA
-
Key Words:
-
industrial touch monitor
Products Description

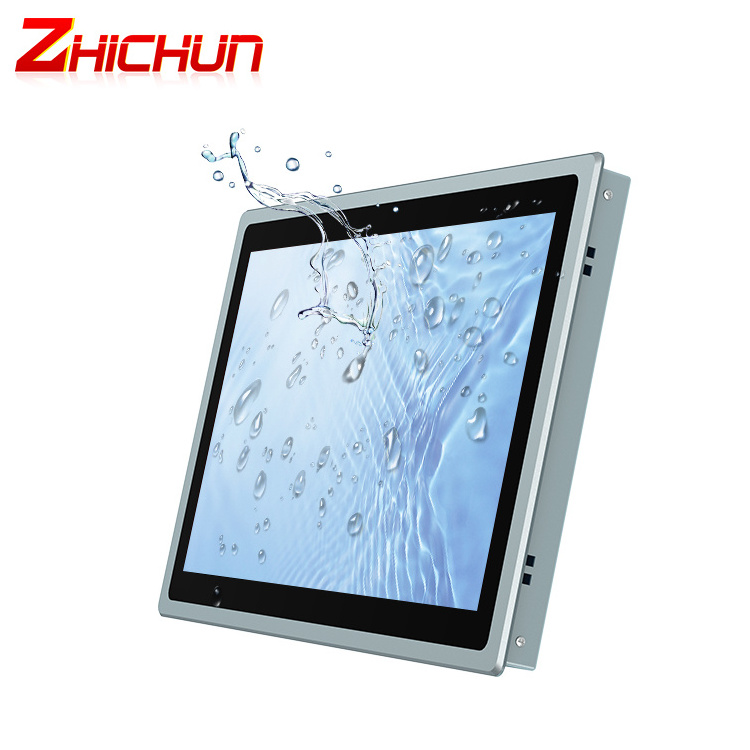

7" 8" 10.1" 13.3" 10.4" 12.1" 15" 15.6" 17" 19" 21.5" IP65 Waterproof Embedded Capacitive Touch Screen Industrial Monitor
Fanless
Industrial PC/ Monitor/Mini Pc
*Aluminum alloy fanless heat dissipation plate, no fear of dust invasion,
*Heat dissipation port can achieve fast heat dissipation effect.
*Even under high-intensity work, it can achieve real-time stable performance and extend the service life of the machine.
Exquisite
Design Straight Rim
As a manufacturer of industrial computers, we not only focus on the effectiveness of product use, but also on product innovation.
We will regularly optimize and update our touch screen monitor and pc products based on customer feedback
When you receive our product, you find that it is smoother to use and easier to install compared to other suppliers.
That's because we have made the updates.
Product Paramenters
|
Model:ZPC070-Z121
|
|
|
|
|
|||
|
Industrial Display
|
|
|
|
|
|||
|
LCD panel
|
|
|
|
|
|||
|
Panel size
|
7"
|
|
|
|
|||
|
Resolution
|
1024*600
|
|
|
|
|||
|
aspect ratio
|
16:9
|
|
|
|
|||
|
Brightness (cd/m²)
|
300
|
|
|
|
|||
|
Response time
|
5ms
|
|
|
|
|||
|
Contrast Ratio
|
1000:1
|
|
|
|
|||
|
view
|
85°/85°/85°/85° (R/L/U/D)
|
|
|
|
|||
|
touch panel
|
|
|
|
|
|||
|
Touch screen type
|
capacitive touch
|
|
|
|
|||
|
touch interface
|
USB
|
|
|
|
|||
|
touch response time
|
5 ms
|
|
|
|
|||
|
Profession
|
>50 million times
|
|
|
|
|||
|
touch option
|
(Capacitive touch optional)
|
|
|
|
|||
|
power supply
|
|
|
|
|
|||
|
External power supply
|
12V-5A
|
|
|
|
|||
|
Operating Voltage
|
12V-5A
|
|
|
|
|||
|
Energy consumption
|
≤35W
|
|
|
|
|||
|
shell
|
|
|
|
|
|||
|
Material
|
sheet metal
|
|
|
|
|||
|
color
|
Black
|
|
|
|
|||
|
VESA installation
|
75x75mm
|
|
|
|
|||
|
Operating environment
|
|
|
|
|
|||
|
temperature range
|
Operation: -20 to 60°C, Storage: -30 to 70°C
|
|
|
|
|||
|
Relative humidity
|
10%~90% @ 30° C, non-condensing
|
|
|
|
|||
|
Packaging Details
|
|
|
|
|
|||
|
net weight
|
2KG
|
|
|
|
|||
|
total weight
|
3.2KG
|
|
|
|
|||
|
Product Size
|
23.6x19x5.2cm
|
|
|
|
|||
|
Package Size
|
34x29x19cm
|
|
|
|
|||
|
Accessories
|
Monitor, Recessed Clip, Wall Mount Bracket, Power Adapter, Power Cord, Service Card, Instruction Manual
|
|
|
|
|||
|
other
|
|
|
|
|
|||
|
install (option)
|
Flush Mounting Screws
|
|
|
|
|||
|
|
Wall mount bracket (optional)
|
|
|
|
|||
|
|
Desk Stand (Upgrade)
|
|
|
|
|||
|
Warranty
|
1 year warranty
|
|
|
|
|||
|
Certificate
|
CE, FCC, 3c
|
|
|
|
|||
Installation Instructions
Touch Screen
Screen brightness can custom up to 1500CD/m '.
Under sunlight, the screen interface remains clear and visible, bidding farewell to the
troubles of outdoor environments and ensuring user use
Resistive Touch Screen
Support
finger-tip touch
,
glove touchpressure touch
Not affected by liquid
Capacitive Touch Screen
support
10-point touch
high luminousness
long touch life
Applicable Industry
*Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
*Public Places: subway, airports, stations, gas stations, electric vehicle charging station, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
* Business Organizations: hospitality industrial, supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
*Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
*Non-profit Organizations: Telecommunications, post offices, hospital, schools.
*Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers.
* Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Quality Inspection
Our factory will finish quality inspection before shipping. Make sure that you
receive
the product well. Screen detection, withstand pressure test, touch test, aging detection, vibration detection, electrostatic test. Dropping test. And even we will do s
imulated transportation vibration detection. Please check video for more information.
Certifications
Product packaging
