Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
230
-
Lamp Luminous Flux(lm):
-
600
-
Model Number:
-
AF201P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUOHUI
-
Item Type:
-
Downlights
-
Certification:
-
ce Rohs
-
Large termination block with cable clamp:
-
easy for the cables loop in and loop out
-
Shallow depthof 100mm:
-
Suitable for installation into very small ceilling voids
-
Material:
-
Steel
-
IP:
-
IP20
-
Load:
-
50w halogen or 5w LED GU10 lamp
-
Fire rated:
-
30, 60, 90min.
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Iron
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
230
-
Lamp Luminous Flux(lm):
-
600
-
Model Number:
-
AF201P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUOHUI
-
Item Type:
-
Downlights
-
Certification:
-
ce Rohs
-
Large termination block with cable clamp:
-
easy for the cables loop in and loop out
-
Shallow depthof 100mm:
-
Suitable for installation into very small ceilling voids
-
Material:
-
Steel
-
IP:
-
IP20
-
Load:
-
50w halogen or 5w LED GU10 lamp
-
Fire rated:
-
30, 60, 90min.

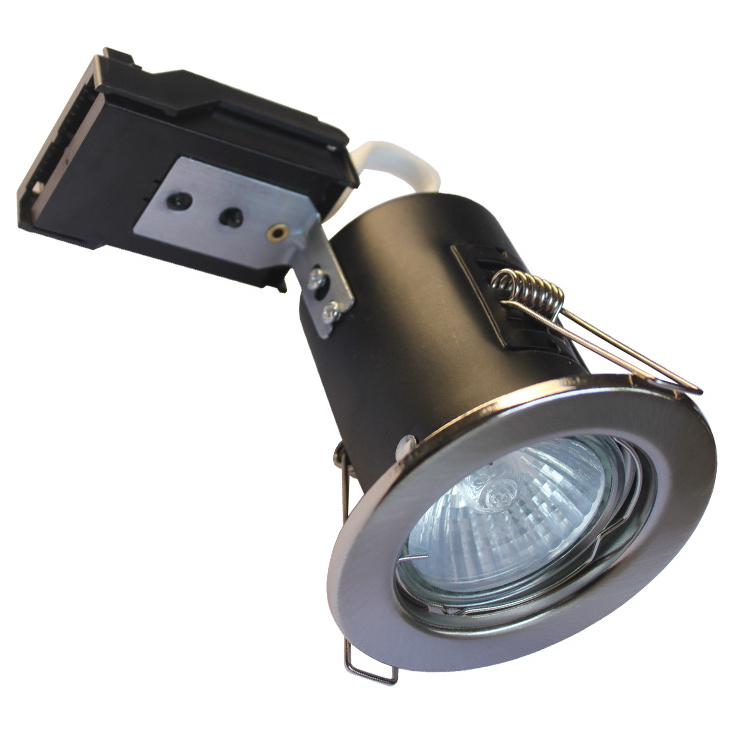

GU10 led lamp Recessed Steel stright Fire rated downlights
Specifications
| Model | Version | Material | Max Watt | Cap Type | Size | Cutout | IP | Class | Finish |
| AF201P | Fixed | Steel | 50 | GU10/MR16 | 80mm*100mm | 65 | 20 | II | White/chrome/satin nicek/gold/antique/matt chrome |
| AF202P | Tilted | Steel | 50 | GU10/MR16 | 83mm*108mm | 65 | 20 | II | |
| AF203PIP65 | IP65 | Steel | 50 | GU10/MR16 | 85mm*108mm | 70 | 65 | I | |
| AF201D | Fixed | Die-casting | 50 | GU10/MR16 | 92mm*108mm | 75 | 20 | I | |
| AF202D | Tilted | Die-casting | 50 | GU10/MR16 | 103mm*108mm | 85 | 20 | I | |
| AF203DIP65 | IP65 | Die-casting | 50 | GU10/MR16 | 85mm*108mm | 70 | 65 | I |
Complies with BS EN60598,BS5250 BS476 PART20, 21,23
Suitable for mounting on normally flammable.
Minimum distance from illminated object is 0.5 meter.
Mounting: Recessed
Main Material: Steel or Die-casting
Installation Accessories: Single action spring
