Quick Details
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
2500 - 5000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
580 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WLF powder making grinding crushing milling grinder machine
-
Function:
-
Spice Herb Food Chemical Powder Grinding
-
Color:
-
Clients' Requirement
-
Key words:
-
sugar chilli spice grinding crusher pulverizer machine
-
Application scope:
-
Chemical Cosmetic Food
-
Package:
-
Wooden Case
-
Certificate:
-
CE ISO
Quick Details
-
Output (kg/h):
-
20 - 500 kg/h
-
Feeding Size (mm):
-
1 - 15 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
2500 - 5000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
580 KG
-
Marketing Type:
-
New Product
-
Product name:
-
WLF powder making grinding crushing milling grinder machine
-
Function:
-
Spice Herb Food Chemical Powder Grinding
-
Color:
-
Clients' Requirement
-
Key words:
-
sugar chilli spice grinding crusher pulverizer machine
-
Application scope:
-
Chemical Cosmetic Food
-
Package:
-
Wooden Case
-
Certificate:
-
CE ISO
WLF cheap price arabic gum salt root powder making crushing grinding moringa leaves crusher machine
Application
WF pin cyclone deusting & grinding machine is a new generation of grinding machine, which is carefully designed and developed by our company based on our crushing experience and actual conditions. This machine is mainly applied to crush material with low hardness in chemicals, dyes, additives, feed, food, non-metalic mineral, fineness adjusted between 20-120 mesh. It has advantages such as high production capacity, fine grain, low noise, low energy consumption, easy maintenance and easy installation, especially for crushing oily, viscous, heat-sensitive and fibrous material with low hardness (example: ginger, chili, pepper, naked oats, soybean, star anise and cinnamon).
Feature
1.Powerful grinding ability, low energy consumption, relatively fine grain
2.Crush in a large space, high-strength wind pressure is generated when the turbine operates, not only to increase production capacity and reduce phenomenon of over-crushing, but also to effectively avoid the deposition and clogging of material in the screen during the production.
3.Crushing ability of fibrous materials is stronger than common equipment because of the strengthening of the cut,.
4.Easy screen installation, reliable positioning, adopting plug-in type; Service life is relatively longer than the ring-screen.
5.Interal-mounted motor lows the center of gravity and noise.
Technical Parameters
|
TYPE |
20B |
30B |
40B |
50 B |
6 0 B |
|
Capacity ( kg/h ) |
20-80 |
5 0- 3 00 |
100- 4 00 |
2 00-500 |
300- 8 00 |
|
Main Speed (r/min) |
4500 |
3500 |
3400 |
2900 |
2900 |
|
Feed Size (mm) |
6 |
10 |
12 |
12 |
12 |
|
Discharge Size ( mesh ) |
20-150 |
20-150 |
20-150 |
20-150 |
20-150 |
|
Crush Power (kw) |
4 |
5.5 |
7.5 |
11 |
22 |
|
Fan Power(kw) |
2.2 |
2.2 |
2.2 |
3 |
3 |
|
D is charge motor (kw) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Weight(kg) |
350 |
500 |
600 |
750 |
100 0 |
|
Overall Dimensions(mm) |
1000* 800*1600 |
1200* 850*1780 |
1480* 900* 1890 |
1580* 1000* 2000 |
1800* 1200*2250 |

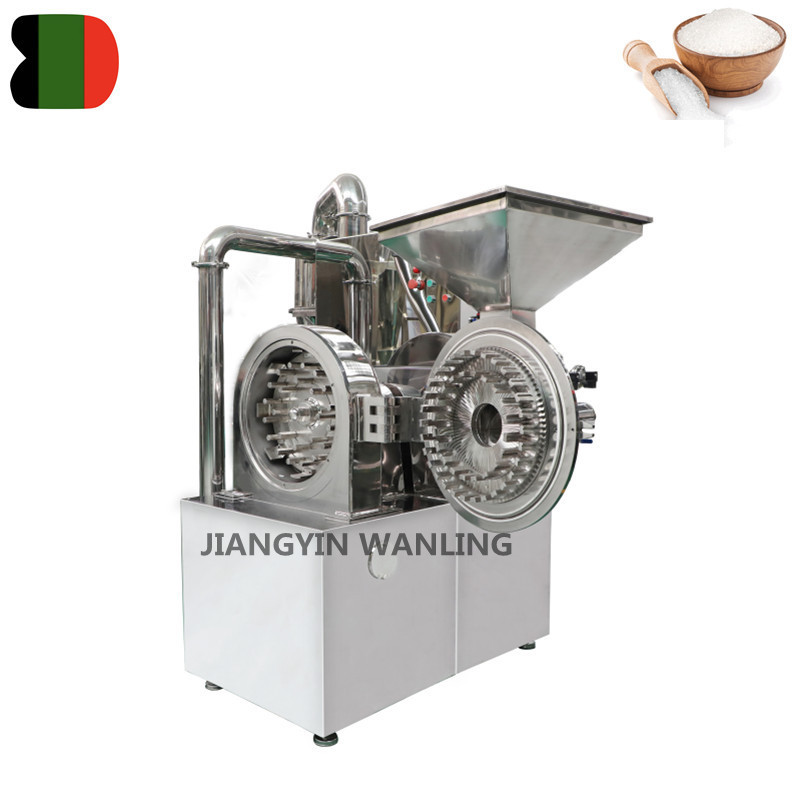

Machine Pics
