Quick Details
-
Voltage:
-
24V (customizable)
-
Dimension(L*W*H):
-
4600*1950*2850mm
-
Weight:
-
4850kg
-
Marketing Type:
-
Other
-
Product name:
-
diesel mobile screw air compressor
-
Driven method:
-
direct driven
-
Cooling method:
-
Air Cooled
-
Quality:
-
Excellent
-
Air end:
-
Baosi Airend
-
Color:
-
Customized Color
-
OEM:
-
Avaliable
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Tuowei
-
Model Number:
-
SYC-26/20
-
Voltage:
-
24V (customizable)
-
Dimension(L*W*H):
-
4600*1950*2850mm
-
Weight:
-
4850kg
-
Marketing Type:
-
Other
-
Product name:
-
diesel mobile screw air compressor
-
Driven method:
-
direct driven
-
Cooling method:
-
Air Cooled
-
Quality:
-
Excellent
-
Air end:
-
Baosi Airend
-
Color:
-
Customized Color
-
OEM:
-
Avaliable
Product Overview

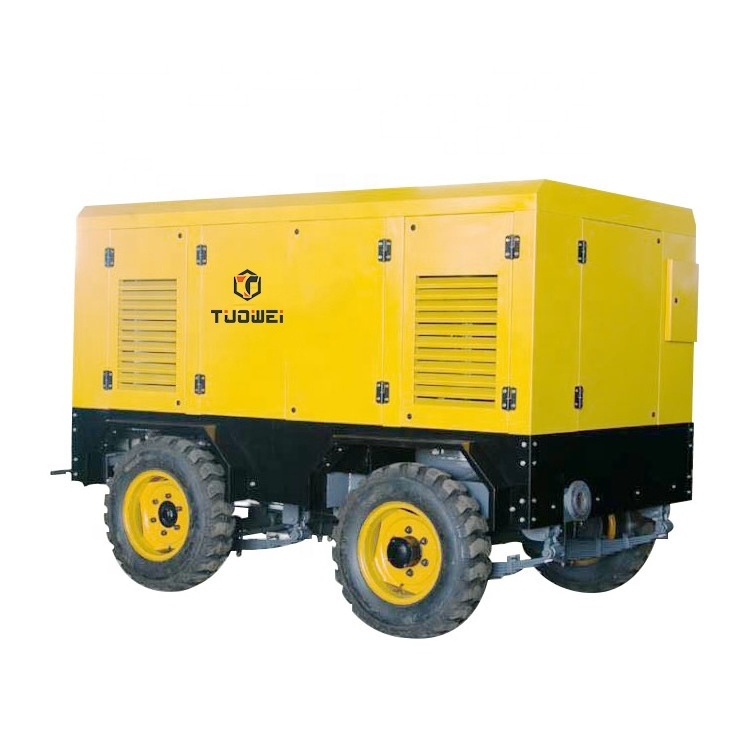

High Pressure 920 Cfm 20 Bar 265kW Diesel Engine Portable Mining Screw Air Compressor For Water Well Drilling Rig
Diesel Mobile Air Compressor
Diesel Portable screw air compressors are widely used in mines, highways, tunnels, geology, water conservancy, shipbuilding, military industry, high-speed railway and other tunnel or open-air operation fields.
With the increasing demand for humanization of mobile operation, based on the concepts of ergonomics and design aesthetics,Tuowei introduces a mobile screw air compressor with "convenient use,intelligent" as its function.
Portable Air Compressor
Portable air compressor has carried out overall consideration and conception from the use, operation, safety, reliability, psychological feeling and close connection between man and machine, the unit is equipped with multi exhaust expansion air hose, which can meet the connections of variety air-using equipment, save the tedious process of on-site operation, and greatly improve the production efficiency.
Portable Compressor Airend
By optimizing the rotor profile which greatly improves the effective volume, sealing and gas production efficiency. Equipped with heavy-duty high-quality bearings and three special shaft seals to ensure the highest gas production efficiency and service life, it is stable and durable.
High Efficiency Oil and Gas Separation Device and Lubricating Medium
Double-layer pleated oil-air separation element and rough oil & gas separation tank, ensuring the best oil and gas separation effect and the lowest system pressure difference.
Adopt advanced intelligent control system with complete functions of automatic protection & alarm, remote control, multiple joint control, history records.
(1) Real-time running data.
(2) Monitor loading/unloading characteristics.
(3) Preset various parameter values.
(4) History records checking and display maintenance warning.
Product Paramenters
|
Single Stage Compression Portable Diesel Screw Air Compressor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity
|
|
Pressure
|
|
Diesel Brand
|
Diesel engine type
|
Weight
|
Dimensions
|
||||||||
|
|
m3/min
|
cfm
|
bar
|
psi
|
|
|
KGS
|
L*W*H mm
|
||||||||
|
SYC-5/7
|
5
|
176.6
|
7
|
102.0
|
YUNNEI
|
42KW
|
1100
|
2821*1470*1361
|
||||||||
|
SYC-6/8
|
6
|
211.9
|
8
|
116.6
|
YUNNEI
|
55kW
|
1400
|
3750*1920*1700
|
||||||||
|
SYC-7/8
|
7
|
247.2
|
8
|
116.6
|
YUCHAI
|
4D80-K20,58kW
|
1400
|
3750*1920*1700
|
||||||||
|
SYC-8/7
|
8
|
282.5
|
7
|
102.0
|
YUCHAI
|
65kw
|
1400
|
3750*1920*1700
|
||||||||
|
SYC-8/8
|
8
|
282.5
|
8
|
116.6
|
YUCHAI
|
65kw
|
1400
|
3750*1920*1700
|
||||||||
|
SYC-9/8
|
9
|
318.0
|
8
|
116.6
|
YUCHAI
|
75kW
|
1600
|
3750*1920*1700
|
||||||||
|
SYC-10/7
|
10
|
353.1
|
7
|
102.0
|
YUCHAI
|
YC4D95Z-K20,70kW
|
1900
|
3900*1920*1700
|
||||||||
|
SYC-9/14
|
8.5
|
300.1
|
14
|
204.0
|
CUMMINS
|
4BTA3.9-C125,93kW
|
1900
|
3900*1920*1900
|
||||||||
|
SYC-10/10
|
10
|
353.1
|
10
|
145.7
|
CUMMINS
|
4BTA3.9-C125,93kW
|
1900
|
3900*1920*1900
|
||||||||
|
SYC-10/13
|
10
|
353.1
|
13
|
189.4
|
CUMMINS
|
4BTA3.9-C125,93kW
|
2050
|
4080*1980*2350
|
||||||||
|
SYC-13/10
|
13
|
459.0
|
10
|
145.7
|
CUMMINS
|
4BTA3.9-C125,93kW
|
2050
|
4080*1980*2350
|
||||||||
|
SYC-12/7
|
12
|
423.7
|
7
|
102.0
|
CUMMINS
|
4BTA3.9-C125,93kW
|
2050
|
3900*1980*1900
|
||||||||
|
SYC-12/12
|
12
|
423.7
|
12
|
174.9
|
CUMMINS
|
6BTA5.9-C180,132kW
|
2380
|
4080*1980*2350
|
||||||||
|
SYC-12/13
|
12
|
423.7
|
13
|
189.4
|
CUMMINS
|
6BTA5.9-C180,132kW
|
2750
|
4080*1980*2350
|
||||||||
|
SYC-13/13
|
13
|
459.0
|
13
|
189.4
|
CUMMINS
|
6BTA5.9-C180,132kW
|
2750
|
3450*1520*2220
|
||||||||
|
SYC-17/7
|
17
|
600.3
|
7
|
102.0
|
CUMMINS
|
6BTA5.9-C180,132kW
|
3350
|
3380*1640*2350
|
||||||||
|
SYC-15/13
|
15
|
529.7
|
13
|
189.4
|
YUCHAI
|
YC6A240-20,177kW
|
3350
|
3380*1650*2500
|
||||||||
|
SYC-16/13
|
16
|
565.0
|
13
|
189.4
|
CUMMINS
|
6CTA8.3-C215,158kW
|
3350
|
3980*1800*2450
|
||||||||
|
SYC-13/17
|
13
|
459.0
|
17
|
247.7
|
CUMMINS
|
6CTA8.3-C215,158kW
|
3400
|
3780*1980*2350
|
||||||||
|
SYC-17/15
|
17
|
600.3
|
14.5
|
211.3
|
CUMMINS
|
6CTA8.3-C260,194kW
|
3400
|
3980*1800*2450
|
||||||||
|
SYC-19/15
|
19
|
670.9
|
14.5
|
211.3
|
CUMMINS
|
6CTA8.3-C260,194kW
|
3400
|
3980*1800*2450
|
||||||||
|
SYC-18/17
|
18
|
635.6
|
17
|
247.7
|
CUMMINS
|
6CTA8.3-C260,194kW
|
3400
|
3980*1800*2450
|
||||||||
|
SYC-20/13
|
20
|
706.2
|
13
|
189.4
|
CUMMINS
|
6CTA8.3-C260,194kW
|
3400
|
3980*1800*2450
|
||||||||
|
SYC-22/8
|
22
|
776.8
|
8
|
116.6
|
CUMMINS
|
6CTA8.3-C260,194kW
|
4000
|
4580*1950*2600
|
||||||||
|
SYC-26/8
|
26
|
918.1
|
8
|
116.6
|
CUMMINS
|
6CTA8.3-C260,194kW
|
4000
|
4580*1950*2600
|
||||||||
|
SYC-22/14
|
22
|
776.8
|
14
|
204.0
|
CUMMINS
|
6CTA8.9-C325, 239kW
|
4500
|
4580*1950*2600
|
||||||||
|
SYC-27/10
|
27
|
953.4
|
10
|
145.7
|
CUMMINS
|
6CTA8.9-C325, 239kW
|
5000
|
4600*1950*2850
|
||||||||
|
SYC-30/10
|
30
|
1059.3
|
10
|
145.7
|
CUMMINS
|
6CTA8.9-C325, 240kW
|
5000
|
4600*1950*2850
|
||||||||
|
Two Stages Compression Portable Diesel Screw Air Compressor
|
|
|
|
|
|
|
|
|
||||||||
|
SYC-20/19
|
19.5
|
688.5
|
19
|
276.9
|
CUMMINS
|
6CTA8.3-C260,194KW
|
3700
|
3650*1800*2500
|
||||||||
|
SYC-22/20
|
22
|
776.8
|
20
|
291.4
|
CUMMINS
|
6LTA8.9-C360,265KW
|
4500
|
4600*1950*2850
|
||||||||
|
SYC-26/20
|
26
|
918.1
|
20
|
291.4
|
CUMMINS
|
6LTA8.9-C360,265KW
|
4850
|
4600*1950*2850
|
||||||||
|
SYC-27/22
|
27
|
953.4
|
22
|
320.6
|
CUMMINS
|
NTA855-P400 298kw
|
5000
|
4600*1950*2850
|
||||||||
|
SYC-26/25
|
26
|
918.1
|
25
|
364.3
|
CUMMINS
|
QSZ13-C500
|
5100
|
4700*2100*2500
|
||||||||
|
SYC-21/35
|
21
|
741.5
|
35
|
510.0
|
CUMMINS
|
QSZ13-C500
|
5100
|
4700*2100*2500
|
||||||||
|
SYC-33/25
|
33
|
1165.2
|
25
|
364.3
|
CUMMINS
|
QSZ13-C550 410KW
|
5200
|
4700*2100*2500
|
||||||||
|
SYC-26/35
|
26
|
918.1
|
35
|
510.0
|
CUMMINS
|
QSZ13-C550
|
5200
|
4700*2100*2500
|
||||||||
