Quick Details
-
Dimension(L*W*H):
-
125*70*92cm
-
Weight:
-
160kg
-
Working Pressure:
-
300bar, 330bar
-
Work pressure:
-
30Mpa (300bar)
-
Displacement:
-
265L/min
-
Lubrication method:
-
Splash lubrication
-
Control method:
-
Automatic shutdown
-
Safety devices:
-
Interval Safety valve
-
Clean air:
-
Primary air filtration
-
Certified product:
-
CE certification MA test report
-
Drive:
-
Electric 380V/50Hz/5.5kw
-
Cooling method:
-
Air cooling
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
HC-W265
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
125*70*92cm
-
Weight:
-
160kg
-
Working Pressure:
-
300bar, 330bar
-
Work pressure:
-
30Mpa (300bar)
-
Displacement:
-
265L/min
-
Lubrication method:
-
Splash lubrication
-
Control method:
-
Automatic shutdown
-
Safety devices:
-
Interval Safety valve
-
Clean air:
-
Primary air filtration
-
Certified product:
-
CE certification MA test report
-
Drive:
-
Electric 380V/50Hz/5.5kw
-
Cooling method:
-
Air cooling

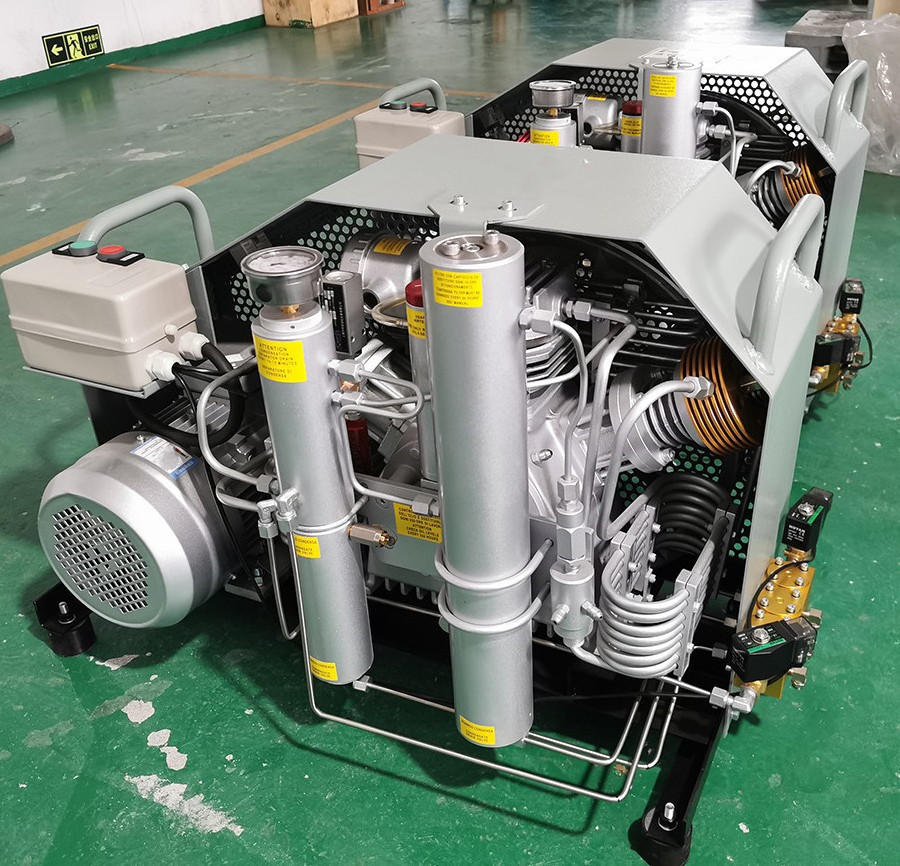

4500psi 380V 265L/Min Auto Stop High Pressure Dive Tank Air Compressor for Diving Scuba
Product Description
Manufacturing Technique
This product is mass-produced after design changes and optimizations in accordance with the Italian model. The final piston adopts a special process, and the piston ring adopts the Japanese Riken process. Unanimous praise from users. This product adopts three-cylinder three-stage compression, splash lubrication, inter-stage safety valve and filter system. HC-W265 can provide safe compressed air for any industry that needs high-pressure pure air source, and provide safe compressed air that meets the requirements of human breathing. This product is designed, produced and tested and accepted in accordance with the requirements of GB/T 12929-2008 "Marine High Pressure Piston Air Compressor"; the air quality meets the EN12021 international breathing compressor breathing standard; HC-W265 is a kind of air compression equipment, which will be free 1 kg (1bar/0.1Mpa) of the air in the state is compressed to a high pressure gas with a gauge pressure of 300 kg (300bar/30Mpa). The oil and impurities in the high-pressure air can filter the inhaled air containing fine particles (PM2.5) to a safety value of less than 10 micrograms, which meets the standards set by the World Health Organization, making the exhaust gas clean and tasteless. The personnel provide highly purified, clean, odorless, safe and reliable compressed breathing air.
|
Model
|
HC-W265
|
|
Work pressure
|
30Mpa Mpa(300bar)
|
|
Displacement (inhalation state)
|
260/min
|
|
Type
|
W-type layout-three-cylinder three-stage reciprocating piston compression
|
|
Drive
|
Electric 380V/50Hz/5.5kw or honda gasoline engine drive
|
|
Lubrication method
|
Splash lubrication (food grade lubricant 750-H2)
|
|
Cooling method
|
Air cooling
|
|
Control method
|
Automatic shutdown
|
|
Clean air
|
Primary air filtration, secondary oil-water separation, secondary classification air purification
|
|
Safety devices
|
Interval safety valve, pressure maintenance valve, automatic shutdown system, transmission part installation protective cover
|
|
Packing size (length×width×height)
|
125×70×92cm
|
|
Weight
|
190kg
|
|
Inflation speed
|
It takes about 10 minutes to fill a 6-liter bottle with 30Mpa
|
|
Certified product
|
CE certification, MA test report
|
|
Packing List
|
Manual、safety inspection report certificate, 2 sets of inflation hoses and joints, and the machine has built-in food-grade
lubrication. |
Specification
|
|
Work pressure
|
Displacement
（L/min）
|
Power
（KW）
|
Motor
（V）
|
Rotate speed
（rpm)
|
Compressor grade
|
Noise
（dB）
|
Cooling Method
|
Dimension
（cm)
|
|
|
|
|
|
|
|
|
|
|
|
|
HC-X100Q
|
30
|
100
|
5.5hp
|
Gasoline
|
2800
|
4
|
≤80
|
Air-cooling
|
50×33×52
|
|
HC-X100D
|
30
|
100
|
2.2
|
220/380
|
2800
|
4
|
≤80
|
Air-cooling
|
50×33×52
|
|
HC-W200D
|
30
|
200
|
4
|
380
|
1100
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W300D
|
30
|
300
|
5.5
|
380
|
1250
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W400D
|
30
|
400
|
7.5
|
380
|
1360
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W400DZ
|
30
|
400
|
7.5
|
380
|
1360
|
3
|
≤70
|
Air-cooling
|
130×70×108
|
Product composition and characteristics
;
The machine is equipped with an automatic shutdown device, the shutdown pressure can be set freely, and it is equipped with a time running timer to support the maintenance time;
Two gas cylinders can be filled at the same time; (1 bottle is recommended for filling faster)
High-power all-copper core wire customized motor, stable power output, light starting load;
The protective cover adopts plastic spraying process, which is not easy to scratch and rust; (some manufacturers use spray paint, which is low in cost and easy to fall off and rust) Super V-belt, strong tension, wear-resistant and high-temperature resistant; Shockproof pressure gauge 0～5800psi/400bar, accurate pressure value;
The reinforced steel plate base is equipped with anti-vibration pads, so the equipment runs more smoothly;
High-strength nylon cooling fan, better heat dissipation effect;
The low pressure adopts red copper tube, which has better heat dissipation performance, and the high pressure adopts stainless steel tube to ensure the safety of output pressure;
The rotating parts are equipped with protective cover devices, and all levels are equipped with safety valves and automatic shutdown systems to ensure the safety of operators;
Optional motor drive or gasoline engine drive to meet the gas supply needs under various conditions;
Configure precision air filter (customized wire mesh filter element);
2-stage oil-water separator (standard manual blowdown, optional automatic blowdown) final classification air purification system (standard manual blowdown, optional automatic blowdown) two-stage purification, first removes water, then removes odor;(Most manufacturers use level 1 mixed filtration to save production costs)
The last stage adopts piston ring technology, and only the piston ring needs to be replaced when worn;(Most manufacturers do not use the final stage piston ring process, and need to replace a complete set of pistons and cylinders after wear, and pay for expensive accessories)
The end adopts a pressure maintenance valve, deep air filtration, and extends the life of the filter element, and adopts an alloy aluminum permanent filter element, a replaceable filter element material, and saves later use costs;(Some manufacturers have no pressure maintenance valve and use disposable filter elements, which saves production costs and increases later use costs)
The parts in contact with gas, such as cylinders and filter cartridges, are cleaned with alcohol before leaving the factory, and tested with food-grade lubricating oil. The factory has been debugged.
