Quick Details
-
Brand Name:
-
Chengshun
-
Model Number:
-
2-400mm
-
Application:
-
Decorative buildings,aerospace,etc
-
Hardness:
-
65HB-150HB
-
Al (Min):
-
90.99%
-
Yield (≥ MPa):
-
265
-
Ultimate Strength (≥ MPa):
-
410
-
Product name:
-

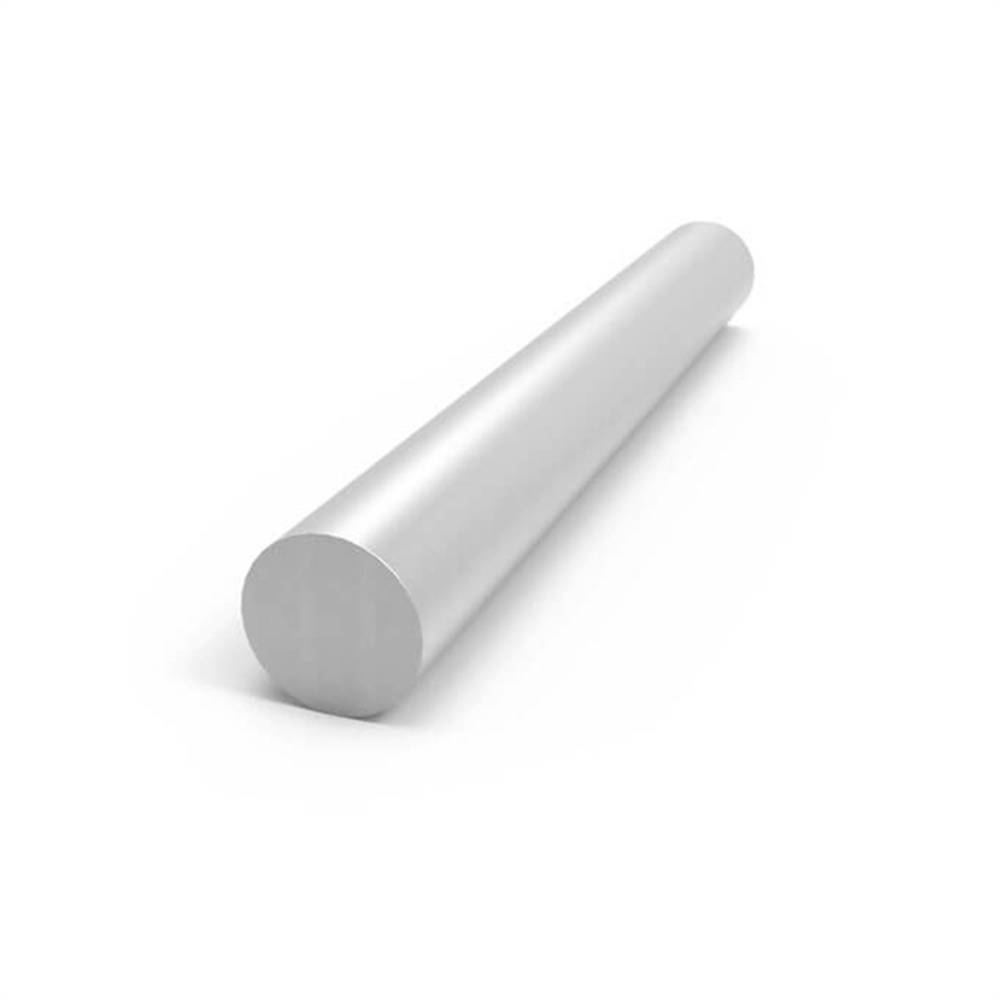

Aluminum Alloy Rod
-
Material:
-
Alloy 6063/6061/6005/6060 T5/T6
-
Type:
-
Round Straight Bar
-
Color:
-
Customized Color
-
Diameter:
-
2mm~800mm
-
Usage:
-
Standard Aluminum Profile
-
Sample:
-
Sample Freely
Quick Details
-
Grade:
-
3000 Series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chengshun
-
Model Number:
-
2-400mm
-
Application:
-
Decorative buildings,aerospace,etc
-
Hardness:
-
65HB-150HB
-
Al (Min):
-
90.99%
-
Yield (≥ MPa):
-
265
-
Ultimate Strength (≥ MPa):
-
410
-
Product name:
-
Aluminum Alloy Rod
-
Material:
-
Alloy 6063/6061/6005/6060 T5/T6
-
Type:
-
Round Straight Bar
-
Color:
-
Customized Color
-
Diameter:
-
2mm~800mm
-
Usage:
-
Standard Aluminum Profile
-
Sample:
-
Sample Freely
Product Description
|
Product Name
|
aluminium alloy round bar Manufacturer High Quality aluminium bar/billets 6061 6063 7075 T6 aluminum rod bar price
|
|
Surface Treatment
|
Pickled Bright Polished Satin Annealed
|
|
Technique
|
EXTRUDED Cold Drawn
|
|
Hardness
|
10HW-15HW
|
|
Alloy Or Not
|
Is Alloy
|
|
Al (Min)
|
Varies with the alloy grade
|
|
Yield (≥ MPa)
|
265
|
|
Temper
|
T3 - T8
|
|
Ultimate Strength (≥ MPa)
|
276
|
|
Tolerance
|
±1%
|
|
Processing Service
|
Bending, Decoiling, Welding, Punching, Cutting
|
|
Standard
|
ASTM AISI JIS DIN GB
|
|
Surface
|
Pickled Bright Polished Satin Anodizing
|
|
Technique
|
Extruded
|
|
Material
|
1000-8000 series
|
|
Length
|
2.5-6m or as required
|
|
Aluminium and Aluminium Alloy Round Bar Specification
|
|
|
|
|
|
|
|
|||||||
|
Diameter
(mm) |
Theoretical weight
(KG/M) |
Diameter
(mm) |
Theoretical weight
(KG/M) |
Diameter
(mm) |
Theoretical weight
(KG/M) |
Diameter
(mm) |
Theoretical weight
(KG/M) |
|||||||
|
5
|
0.055
|
20
|
0.88
|
58
|
7.398
|
160
|
56.3
|
|||||||
|
5.5
|
0.067
|
21
|
0.97
|
59
|
7.655
|
170
|
63.55
|
|||||||
|
6
|
0.079
|
22
|
1.064
|
60
|
7.917
|
180
|
71.25
|
|||||||
|
7
|
0.093
|
24
|
1.267
|
62
|
8.453
|
190
|
79.39
|
|||||||
|
7.5
|
0.108
|
25
|
1.374
|
65
|
9.291
|
200
|
87.96
|
|||||||
|
8
|
0.141
|
27
|
1.603
|
75
|
12.37
|
220
|
106.4
|
|||||||
|
8.5
|
0.159
|
28
|
1.724
|
80
|
14.07
|
230
|
116.3
|
|||||||
|
9
|
0.178
|
30
|
7.979
|
75
|
15.89
|
240
|
126.7
|
|||||||
|
9.5
|
0.199
|
32
|
2.252
|
90
|
17.81
|
250
|
137.4
|
|||||||
|
10
|
0.220
|
34
|
2.542
|
95
|
19.85
|
260
|
148.7
|
|||||||
|
10.5
|
0.243
|
35
|
2.694
|
100
|
21.99
|
265
|
154.4
|
|||||||
|
11
|
0.266
|
36
|
2.85
|
105
|
24.25
|
280
|
172.4
|
|||||||
|
11.5
|
0.291
|
38
|
3.176
|
110
|
26.61
|
300
|
197.9
|
|||||||
|
12
|
0.317
|
40
|
3.519
|
115
|
29.08
|
320
|
225.2
|
|||||||
|
13
|
0.372
|
42
|
3.879
|
120
|
31.67
|
340
|
254.2
|
|||||||
|
14
|
0.431
|
45
|
4.453
|
125
|
34.36
|
350
|
269.4
|
|||||||
|
15
|
0.495
|
46
|
4.653
|
130
|
37.16
|
360
|
285
|
|||||||
|
16
|
0.563
|
48
|
5.067
|
135
|
40.08
|
380
|
317.6
|
|||||||
|
17
|
0.636
|
50
|
5.498
|
140
|
43.10
|
400
|
351.9
|
|||||||
|
18
|
0.713
|
52
|
5.946
|
145
|
46.24
|
|
|
|||||||
|
19
|
0.794
|
55
|
6.652
|
150
|
49.48
|
|
|
|||||||
According to the different metal elements contained in aluminum rods, they can be roughly divided into 8 categories, which can be divided into 9 series:
1.
The 1000 series aluminum bars
represent the 1050, 1060, and 1100 series. The 1000 series belongs to the series with the highest aluminum content among all series. The purity can reach over 99.00%. Due to the absence of other technical elements, the production process is relatively simple and the price is relatively cheap, making it the most commonly used series in conventional industries. The majority of the products circulating in the market are the 1050 and 1060 series. The minimum aluminum content of 1000 series aluminum bars is determined according to the last two Arabic numerals. For example, the last two Arabic numerals of 1050 series are 50. According to the international brand naming principle, the aluminum content must be above 99.5% as qualified products. China's aluminum alloy technical standard (GB/T3880-2006) also clearly stipulates that the aluminum content of 1050 should reach 99.5%. Similarly, the aluminum content of 1060 series aluminum rods must reach above 99.6%.
2.
The 2000 series aluminum bars
represent 2A16 (LY16) and 2A02 (LY6). The characteristic of the 2000 series aluminum rod is its high hardness, with the highest content of copper element, around 3-5%. The 2000 series aluminum rods belong to aviation aluminum materials and are not commonly used in conventional industries.
2024 is a typical hard aluminum alloy in the aluminum copper magnesium system, which is a heat-treatable alloy with high strength, easy processing, easy turning, and average corrosion resistance.
After heat treatment (T3, T4, T351), the mechanical properties of 2024 aluminum rods significantly improved. The T3 state parameters are as follows: tensile strength 470MPa, 0.2% yield strength 325MPa, elongation: 10%, fatigue strength 105MPa, hardness 120HB.
The main uses of 2024 aluminum rods include aircraft structures, rivets, truck hubs, propeller components, and various other structural components
3.
The 3000 series of aluminum bars
mainly represent 3003 and 3A21. The production process of 3000 series aluminum rods in China is relatively excellent. The 3000 series aluminum rod is mainly composed of manganese element. The content is between 1.0 and 1.5, which is a series with good rust prevention function.
4.
The 4000 series aluminum rods
represent the 4A01 4000 series aluminum rods, which belong to the series with higher silicon content. Typically, the silicon content ranges from 4.5 to 6.0%. It belongs to building materials, Machine element, forging materials and welding materials; Low melting point, good corrosion resistance, product description: It has characteristics of heat resistance and wear resistance
5.
The 5000 series aluminum bars
represent the 5052, 5005, 5083, and 5A05 series. The 5000 series aluminum rod is a commonly used alloy aluminum rod series, with magnesium as the main element and a magnesium content ranging from 3% to 5%. Also known as aluminum magnesium alloy. The main characteristics are low density, high tensile strength, and high elongation. The weight of aluminum magnesium alloy is lower than that of other series under the same area, and it is also widely used in conventional industry.
6.
T
he 6000 series aluminum rod
represents 6061 and 6063, which mainly contain magnesium and silicon elements. Therefore, it combines the advantages of the 4000 series and 5000 series. 6061 is a cold treated aluminum forging product suitable for applications with high requirements for corrosion resistance and oxidation resistance. Good usability, easy coating, and good processability.
7.
The 7000 series aluminum rod
represents 7075, which mainly contains zinc element. It also belongs to the aviation series and is an aluminum magnesium zinc copper alloy that can be heat treated. It is a superhard aluminum alloy with good wear resistance Basically relying on imports, China's production technology still needs to be improved.
8.
The commonly used aluminum rod in the 8000 series
is 8011, which belongs to other series and is mostly used for aluminum foil. It is not commonly used in the production of aluminum rods.
Packing & Delivery
Standard seaworthy packing
