Quick Details
-
Roll Ratio(Front/Back):
-
1:1.27
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue/OEM
-
Voltage:
-
380v 220v
-
Dimension(L*W*H):
-
1160x920x1370
-
Year:
-
2024
-
Power (kW):
-
45
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Open Mixing Mill
-
Product name:
-
XK160 To XK660 Type Open Mixing Mill Two Roll Rubber Mixing Mill
-
front roll surface speed(m/min):
-
8.89
-
roller:
-
chilled cast iron
-
gear type:
-
single helical or double helica
-
emergency stop device:
-
push botton, rope switch, foot switch
-
stock guide:
-
steel plate
-
safety guide:
-
motor shaft, universal shaft, h
-
colour:
-
green or blue, customizable
Quick Details
-
Diameter of Roll(mm):
-
450 mm
-
Rotation Speed of Front Roll(rpm):
-
10 - 100 rpm
-
Length of Roll(mm):
-
1200 mm
-
Roll Ratio(Front/Back):
-
1:1.27
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue/OEM
-
Voltage:
-
380v 220v
-
Dimension(L*W*H):
-
1160x920x1370
-
Year:
-
2024
-
Power (kW):
-
45
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Open Mixing Mill
-
Product name:
-
XK160 To XK660 Type Open Mixing Mill Two Roll Rubber Mixing Mill
-
front roll surface speed(m/min):
-
8.89
-
roller:
-
chilled cast iron
-
gear type:
-
single helical or double helica
-
emergency stop device:
-
push botton, rope switch, foot switch
-
stock guide:
-
steel plate
-
safety guide:
-
motor shaft, universal shaft, h
-
colour:
-
green or blue, customizable

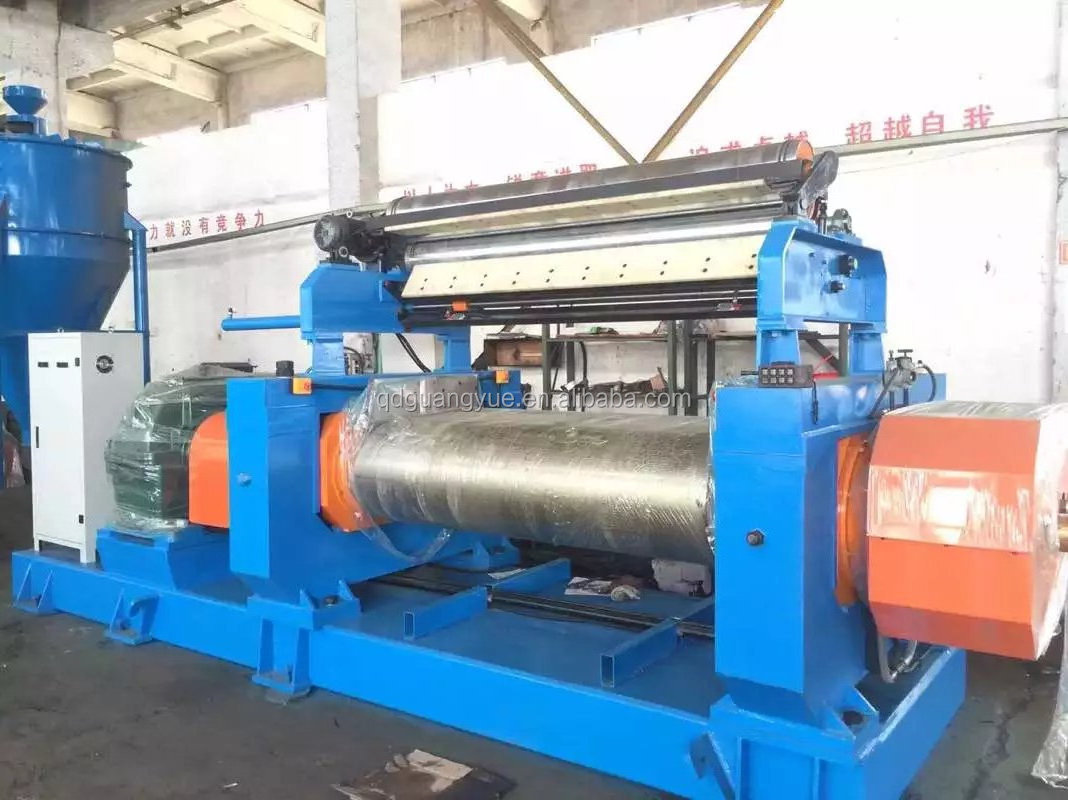

Automatic two roll open mixing mill / rubber mixing mill / open mixer
XK160 To XK660 Type Open Mixing Mill Two Roll Rubber Mixing Mill
APPLICATION
Rubber open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch.
It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
Features of Open Mixing Mill
1. Tailored structure, easy to operate.
2. There are many speeds and speed ratios available, which can satisfy most customers formula and processing requirements.
3. Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
4. Chilled cast iron roll is abrasion resistant with long service life.
5. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise
6. Perfect emergency stop device can ensure the safety of personnel and equipment.
7. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
8. Stock pan is easy to clean up with dislodging device.
9. Human nature designed operating system reduces labor intensity.
10. Modular structure offers various structures for customers option.
11. The flexible design system can satisfy customers special design requirements within the shortest time.
12. A load test running will be made to the assembled equipment in our company to save debugging time for customers.
Technical Parameter:
|
Parameters/version |
XK-160 |
XK-250 |
XK-400 |
XK-450 |
XK-560 |
|
Roll diameter(mm) |
160 |
250 |
400 |
450 |
560 |
| Roll length(mm) |
320 |
620 |
1000 |
1200 |
1530 |
|
Front roll surface speed(m/min) |
8.89 |
15.3 |
18.65 |
24.32 |
27.72 |
|
Friction ratio |
1:1.35 |
1:1.1 |
1:1.27 |
1:1.27 |
1:1.2 |
|
Max. nip(min) |
4 |
8 |
10 |
15 |
15 |
|
Feeding capacity per(kg) |
1-2 |
10-15 |
18-35 |
25-50 |
35-50 |
|
Power(kw) |
5.5 |
18.5 |
37 |
55 |
90 |
|
Size (mm) |
1160x920x1370 |
3120x1322x1500 |
4350x1850x1780 |
5670x2390x1670 |
5845x2284x1978 |
|
Weight(kg) |
1000 |
4000 |
7600 |
12000 |
49000 |
1.special manufacturer that has professional producing team and technical support
top level sale teams to communicate with clients by email,telephone,face to face.
2.professional explanation to clients about machines(techonogy,apply,using guide and so on)

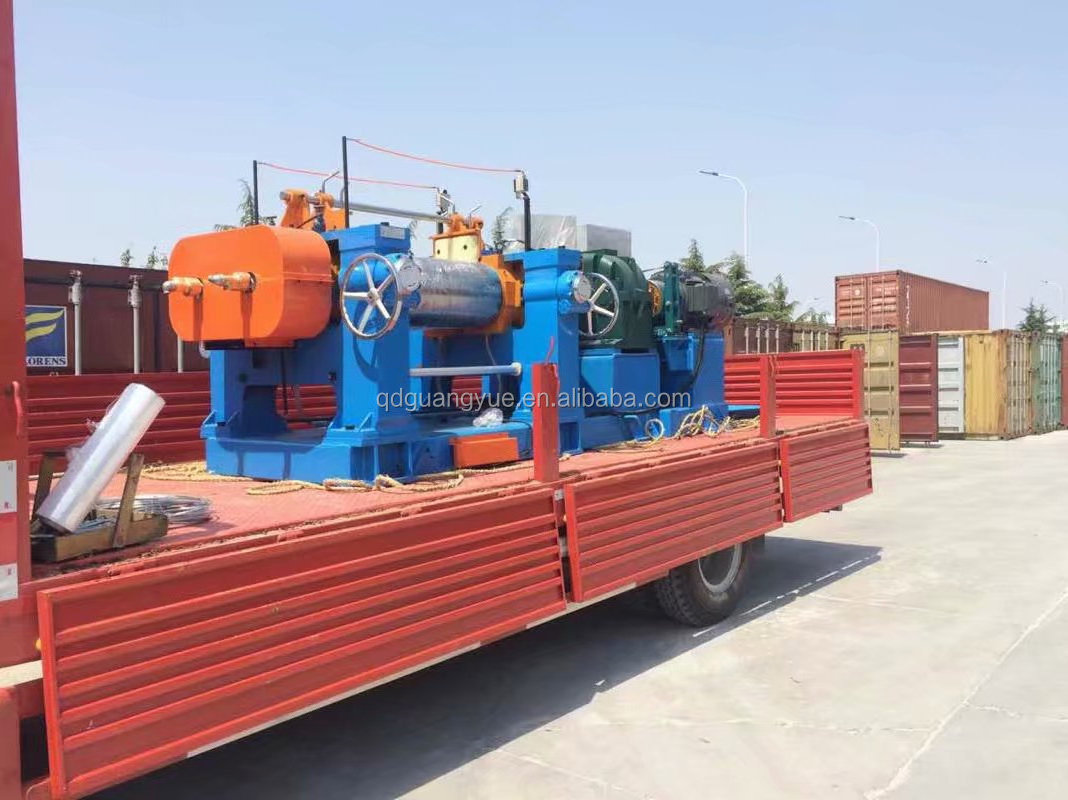

best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.
3.reasonable price
4.flexible delievery time
5.more than 30 years of experience of exporting ability
