Quick Details
-
Brand Name:
-
HONGTIN
-
Model Number:
-
ES-100V Pro
-
Product name:
-
Electrosurgical unit
-
Type:
-
General Surgery Instruments
-
Feature:
-
Reusable Surgery Instruments
-
Certificate:
-
CE ISO 13485
-
Power:
-
220V 50Hz/ 110V 60Hz
-
OEM:
-
Accept OEM
-
Usage:
-
Surgical Room
-
MOQ:
-
1 Piece
-
Application:
-
Surgical Operation Instruments
-
Keywords:
-
Electrosurgical unit
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HONGTIN
-
Model Number:
-
ES-100V Pro
-
Product name:
-
Electrosurgical unit
-
Type:
-
General Surgery Instruments
-
Feature:
-
Reusable Surgery Instruments
-
Certificate:
-
CE ISO 13485
-
Power:
-
220V 50Hz/ 110V 60Hz
-
OEM:
-
Accept OEM
-
Usage:
-
Surgical Room
-
MOQ:
-
1 Piece
-
Application:
-
Surgical Operation Instruments
-
Keywords:
-
Electrosurgical unit

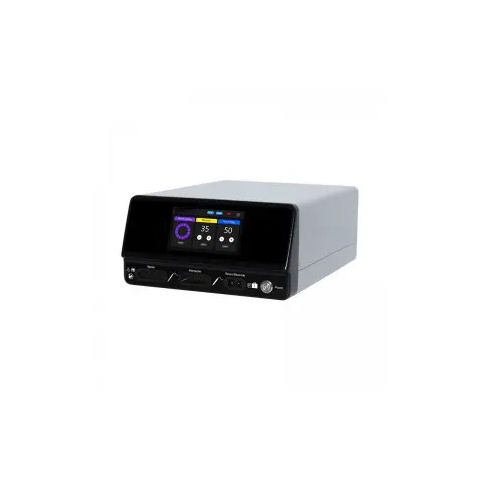

Products Description
Product Features
7 working modes-
including 5 monopolar working modes, and 2 bipolar working modes:
3 Monopolar Cut modes: Pure Cut, Blend 1/2
2 Monopolar Coag modes: Spray, Forced
2 Bipolar modes: Vessel Sealing, Standard
Large blood vessel sealing function
-it can seal 7mm of blood.
CQM Contact Quality Monitoring System
- Automatically monitors the quality of contact between the electrosurgical pad and the patient in real time. If the contact quality is lower than the set value, there will be a sound and light alarm and cut off the power output to ensure safety.
Both electrosurgical pens and foot switch control
Memory function
-can storage recently mode, power, and other parameters and can be quickly recalled
Quick adjustment of power and volume
Cut and Coag in an Intermittent Manner
- Coag is also performed during the cutting process to prevent excessive bleeding during the procedure.
Color touch screen operation panel
-flexible and easy to operate
Chord vocals
-Making the operation process more comfortable
Product Specification
|
Mode
|
|
|
Max Output Power(W)
|
Load impedance (Ω)
|
Modulation Frequency (kHz)
|
Max Output Voltage (V)
|
Crest Factor
|
||
|
Monopolar
|
Cut
|
Pure Cut
|
100
|
500
|
--
|
1300
|
1.8
|
||
|
|
|
Blend 1
|
100
|
500
|
20
|
1400
|
2
|
||
|
|
|
Blend 2
|
100
|
500
|
20
|
1300
|
2
|
||
|
|
Coag
|
Spray
|
90
|
500
|
12-14
|
4800
|
6.3
|
||
|
|
|
Forced
|
60
|
500
|
25
|
4800
|
6.2
|
||
|
Bipolar
|
Vessel Sealing
|
|
100
|
100
|
20
|
700
|
1.9
|
||
|
|
Standard
|
|
60
|
100
|
20
|
700
|
1.9
|
||
