Quick Details
-
Model Number:
-
LONN 600-4
-
Working range:
-
0 - 3g/cc 0 - 3000kg/m3
-
Explosion-proof certification:
-
Ex d IIB T6 Gb
-
Process temperature:
-
-10℃ ~ 120℃
-
Medium measure:
-
Bran Slurry and Tomato Slurry
-
Repeatability:
-
±0.0005g/cc
-
Maximum working pressure:
-
200 bar
-
Power source requirement:
-
24VDC, 100mA
-
Viscosity requirement:
-
0-2000 cP
-
Output:
-
4-wire system, 4-20mA
-
Product name:
-
Tuning Fork Density Meter
Quick Details
-
Type:
-
Tuning Fork
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LONN
-
Model Number:
-
LONN 600-4
-
Working range:
-
0 - 3g/cc 0 - 3000kg/m3
-
Explosion-proof certification:
-
Ex d IIB T6 Gb
-
Process temperature:
-
-10℃ ~ 120℃
-
Medium measure:
-
Bran Slurry and Tomato Slurry
-
Repeatability:
-
±0.0005g/cc
-
Maximum working pressure:
-
200 bar
-
Power source requirement:
-
24VDC, 100mA
-
Viscosity requirement:
-
0-2000 cP
-
Output:
-
4-wire system, 4-20mA
-
Product name:
-
Tuning Fork Density Meter

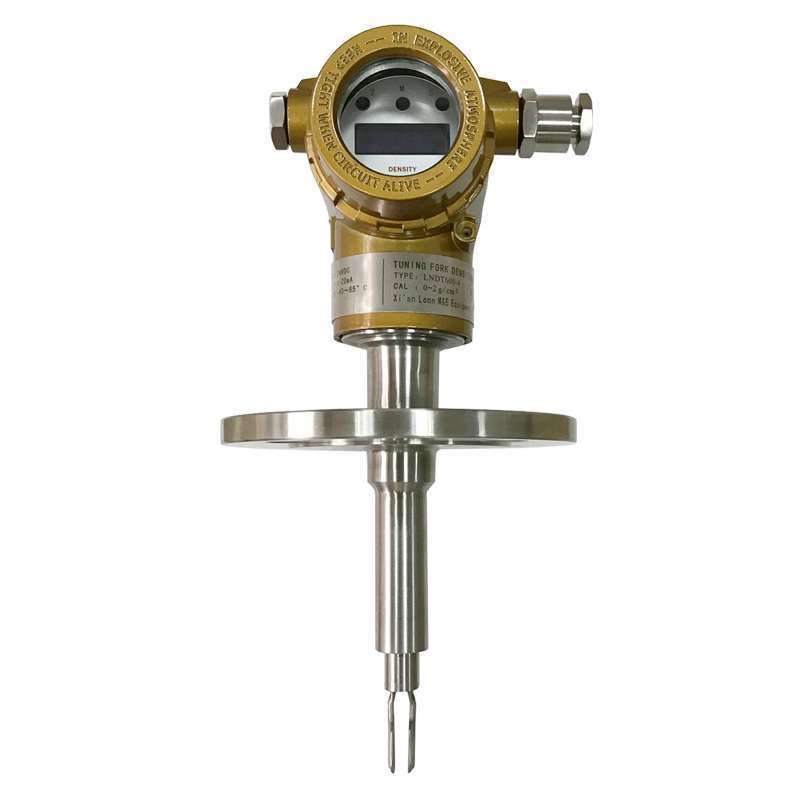

Hydrometer Densitometer Digital Slurry Tuning Fork Online Density Meter For Industry
Introduction
The Lonn 600-4 tuning fork densimeter is used to measure the density of liquid media in tanks and pipes. Density measurement is an important process control in the product manufacturing process. Tuning fork densimeter can be used as an indicator of other quality control parameters such as solids content or concentration values. It can meet a variety of measurement requirements on the density, concentration, and solid content.
Typical applications
- Interface detection in the multi-product pipeline
- Petroleum retail channels
- Combined with volume flow meter for mass flow
- Malt wort proportion (wine-making)
- Serous fluid
- Acid / alkali concentration control
- Evaporator control
- Product mixture
- End-point detection in batch reactions
- Solvent separation
Density performance
|
Accuracy |
± 0.001g/cc |
± 1.0kg/m 3 |
|
W orking range |
0 - 3g/cc |
0 - 3000kg/m 3 |
|
Repeatability |
± 0.0005g/cc |
± 0.5kg/m 3 |
|
P rocess temperature effect (calibrated) |
± 0.0001g/cc |
± 0.1kg/m 3 |
|
P rocess pressure effect (calibrated) |
Negligible |
Structure material
|
C omponent contacting liquid |
S tainless steel 316L, heusler alloy C , zirconium |
|
F ork polishing |
S tandard, PFA coating or electropolishing |
|
S hell |
IP65, aluminium alloy |
|
Process temperature |
–10℃ - 120℃ |
|
Ambient temperature |
–10℃ - 85℃ |
|
Temperature coefficient |
O.1kg/m3/℃(calibrated) |
|
Built-in temperature sensor |
PT100 |
Compatibility of liquid and material
The following table gives the instructions to the compatibility of liquid and material for Lonn 600-4 tuning fork densimeter.
