Model. No.
|

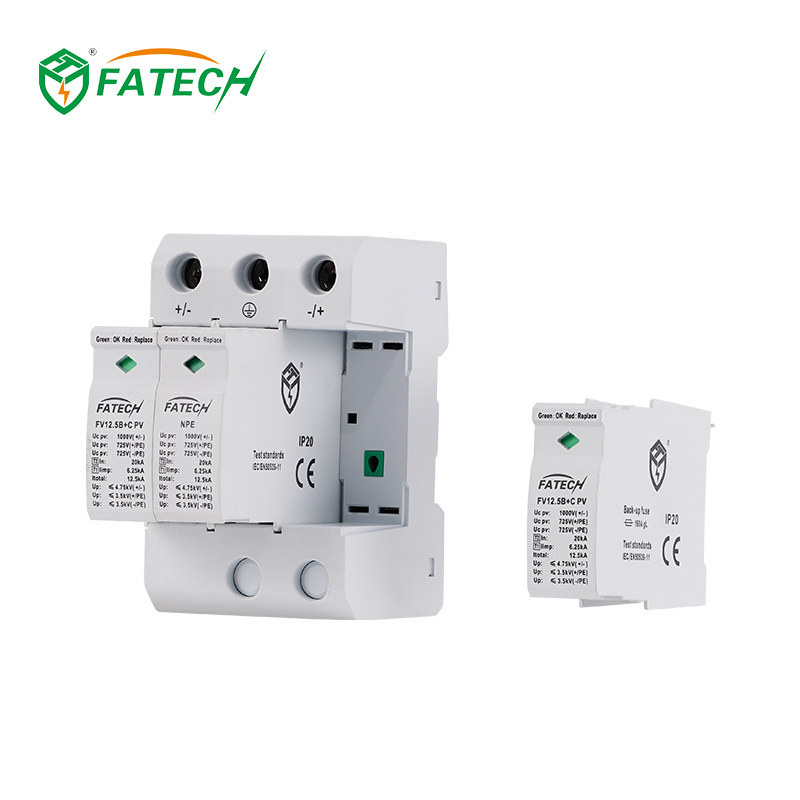

FV12.5B+C/2+NPE-1000PV
|
|
SPD protection conforms to EN50539-11/IEC61643-31
|
Type 1+2
|
|
SPD installation type conforms to EN50539-11/IEC61643-31
|
Class I+II
|
|
Protection level conforms to DIN VDE0675-6
|
B+C
|
|
Type of Network
|
Photovoltaic systems DC side
|
|
Protection mode
|
(+/-)-PE , (-/+)-PE
|
|
Nominal Voltage UN
|
1000 Vdc
|
|
Maximum continuous operating voltage for PV application UCPV
|
1000 Vdc(+/-), 725V(+/PE, -/PE)
|
|
Continuous operating current ICPV
|
<20 µA
|
|
Residual current IPE
|
≤20 µA dc
≤500 µA ac |
|
Standby power consumption PC
|
≤25 mVA
|
|
Nominal discharge current (8/20μs) In
|
20 kA
|
|
Impuse discharge current (10/350μs) Iimp
|
6.25 kA
|
|
Total Impuse discharge current (10/350μs) Itotal
|
12.5 kA
|
|
Voltage protection level Up
|
≤4.75 kV(+/-)
≤3.5 kV(+/PE, -/PE) |
|
Isolation resistance Risol
|
＞1000 MΩ
|
|
Response time tA
|
≤25 ns(+/-)
≤100 ns (+/PE, -/PE) |
|
Remote control contact
|
NO
|
|
Disconnection indicator
|
Mechanical indicator
(Green: OK, Red: Replace) |
|
Minimum area of connecting cable
|
6 mm2
|
|
Maximum area of connecting cable
|
35 mm2
|
|
Installation location
|
Inside
|
|
Mounting type
|
35mm DIN rail acc. to EN 60715
|
|
Color
|
Gray
|
|
Degree of protection
|
IP20
|
|
Housing material
|
UL94V-0
|
|
Ambient temperature
|
-40°C ~+80°C
|
|
Altitude
|
≤2000 m (amsl (above mean sea level))
|
|
Permissible humidity
|
30%~90%
|
