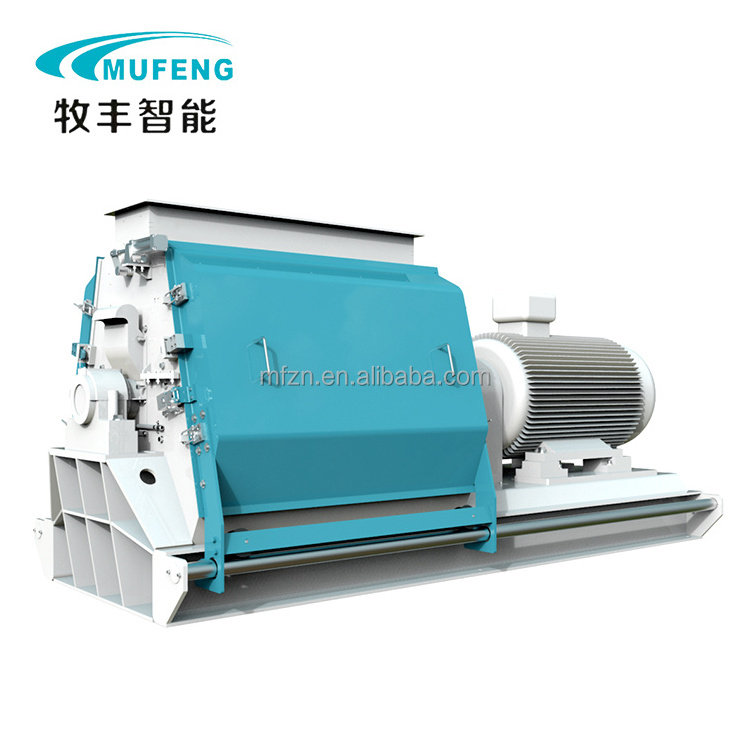

Mufeng Hot Sale New Large Capacity Crusher Grain Herbs Grinding Grinder,Buy Powder Grinding Machine Automatic Hammer Mill

Mufeng Hot Sale New Large Capacity Crusher Grain Herbs Grinding Grinder,Buy Powder Grinding Machine Automatic Hammer Mill

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥2 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 2*1.5*2m

Weight:: 4000 kg

Marketing Type:: New Product 2023

Product name:: Hammer mill

Color:: Customized Color

Application:: Feed plant

Capacity:: 3-40t/h

Raw material:: Wheat Bran Hay Grass Straw

Motor:: Siemens Motor

Processing Types:: hammer mill

Certification:: CE ISO9001

Key words:: Crusher Mixer

Advantage:: Easy Operation High Efficiency

Quick Details

Max. Capacity:: 3-40 ton/h

Place of Origin:: Henan, China

Brand Name:: Mufeng

Voltage:: 380V

Dimension(L*W*H):: 2*1.5*2m

Weight:: 4000 kg

Marketing Type:: New Product 2023

Product name:: Hammer mill

Color:: Customized Color

Application:: Feed plant

Capacity:: 3-40t/h

Raw material:: Wheat Bran Hay Grass Straw

Motor:: Siemens Motor

Processing Types:: hammer mill

Certification:: CE ISO9001

Key words:: Crusher Mixer

Advantage:: Easy Operation High Efficiency

Product Description

Details Images

Model	SFSP70×150	SFSP70×120	SFSP70×100	SFSP70×80	SFSP70×60	SFSP56×40
Rotor diameter(mm)	700	700	700	700	700	560
Speed of mainshaft(r/min)	3000	3000	3000	3000	3000	3000
Chamber with(mm)	1500	1200	1000	800	600	400
Hammer numbers	252	180	144	120	96	60
Power (kW)	200/250	160	132	110/90	75/55	37/30
Coarse crushing of air volume	500/560	340/380	280/320	200/240	80/110	50/80
Air volume(m3/min)	560/640	380/460	320/360	240/280	100/130	60/90
Capacity（t/h）(2.0mm, corn moisture ≤ 13.5)	30-40	20-25	15-20	12-17	8-12	4-6

1. A special hammer screen gap adjustment structure that can be adjusted between 2-12mm, suitable for crushing with different sizes of coarse and fine particles;
2. The bearing adopts a hydraulic oil circulation lubrication system - the temperature rise of the bearing is low, making it more convenient to use and maintain;
3. Integrated processing of the overall base -higher accuracy and more stability;
4. High precision serpentine spring coupling -easy to maintain without the need for motor movement and lower noise;
5. Multi chamber structure of crushing chamber- uniform wear of hammer blades and low cost of replacing multiple small screens;
6. Unique hammer installation method,replacing the hammer without dismantling the spacer sleeve is more convenient;
7. Equipped with an intelligent wind selected stone removal feeder - with higher efficiency in iron and stone removal, protecting the crusher;
8. Optional air cannon blowing device, specifically designed for crushing high oil and high viscosity materials;
9. It can be widely used for crushing various granular materials, such as corn, sorghum, wheat, beans, etc.

Model	SWFL170	SWFL150	SWFL130	SWFL110
Rotor diameter (mm)	700	700	700	700
Rotate speed (r/min)	2980	2980	2980	2980
Crushing chamber diameter(mm)	1700	1500	1300	1100
Power (kw)	220/250	160/200	132/160	110/90

1. Hydraulic lifting of the top cover makes maintenance more convenient;
2. Install tooth shaped alloy near the gear ring surface to improve crushing efficiency;The lifespan of the hammer blade is
4000-5000 tons.
3. Reasonably arrange the position of alloy sheets to extend their service life; Upgrade the substrate and alloy sheet materials; Wear resistant plates have a lifespan of 4000-5000 tons.
4. Wave shaped alloy sheet, increasing the length of the cutting edge; Staggered installation, disrupting the circulation
layer,and improving strike efficiency; The service life of the gear ring is 10000-15000 tons.

Packing & Delivery

Our Project

Thailand

5-10t/h animal feed production line

The project is a full-computer automated feed production line that produces 10 tons per hour of animal feed.
MUFENG not only builds the most advanced, reasonable and energy-saving automatic production lines for customers, but also selects complete sets of mechanical equipment with excellent quality and performance, and arranges construction strictly according to the schedule.

South Africa

10-15t/h chicken feed production line

South Africa project includes the steel structure of the main workshop, a 120*2 twin screw extrusion line, a 10 ton livestock and poultry line, a 165 single screw extrusion line, a 3 ton raw material extrusion line, with 4000T*2 silos.

The customer is very satisfied with the delivery cycle and quality of this project, which represents the highest delivery standard of feed engineering in South Africa and becomes another breakthrough model project in this region.

Iran

15~20t/h animal feed production line

MUFENG customized 15~20t/h full automatic feed pellet production line for Iran customer, this line include four sets of 350T steel silos system.

The line will be completed in October 2020. The capacity is 15~20t/h, It can produce different size feed pellet for different poultry animals.

Russia

20-25t/h animal feed production line

Russian factory covering an area of 7.25 hectares, the plant consists of three high quality lines for livestock and poultry pelleted feed with a capacity of 18T/H.

The design of the steel structure of the main workshop, the technology of the complete production line and the design of the layout of the plant were provided by MUFENG.

Malaysia

60~80t/h chicken feed production line

In order to expand production scale, improve market competitiveness, increase productivity and benefits, accelerated the implementation of new poultry chicken feed production machine for 3-4mm broiler feed.
On the basis of many previous friendly cooperation, the customers reached a new cooperation consensus with MUFENG to introduce professional and efficient 60~80t/h chicken feed production factory equipments. The project started in 2018, and completed.
