Quick Details
-
Brand Name:
-
RIKA
-
Model Number:
-
RKL-02
-
Item:
-
Radar Level Transmitter
-
Range:
-
0~70m
-
Output:
-
4-20mA, RS485(MODBUS-RTU)
-
Supply:
-
12VDC,24VDC,220VAC
-
Accuracy:
-
±3mm
-
Process connection:
-
G1_1/2,support flange
-
Display:
-
128*64LCD display resolution:1mm
-
Housing material:
-
Aluminum alloy
-
Antenna material:
-
304ss
-
Ingress Protection:
-
IP67
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
RIKA
-
Model Number:
-
RKL-02
-
Item:
-
Radar Level Transmitter
-
Range:
-
0~70m
-
Output:
-
4-20mA, RS485(MODBUS-RTU)
-
Supply:
-
12VDC,24VDC,220VAC
-
Accuracy:
-
±3mm
-
Process connection:
-
G1_1/2,support flange
-
Display:
-
128*64LCD display resolution:1mm
-
Housing material:
-
Aluminum alloy
-
Antenna material:
-
304ss
-
Ingress Protection:
-
IP67

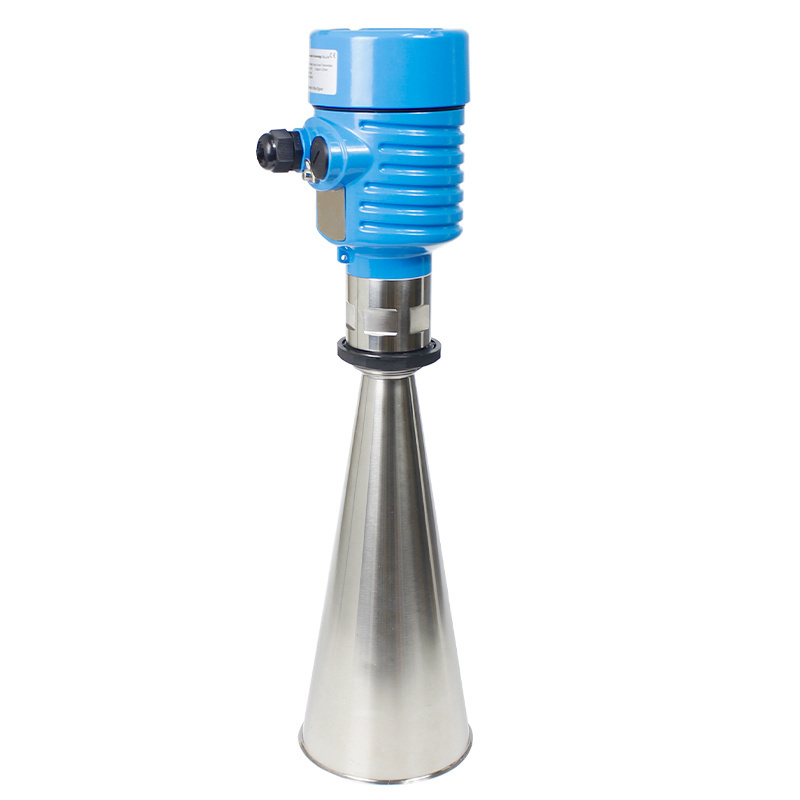

RIKA RKL-02 4-20mA RS485 Output Guided Wave Radar water pump milk tank Level Transmitter for River Lake Level Measurement
RKL-02 Radar Liquid Level Transmitter antenna emitter narrow microwave pulse, the pulse in the space at the speed of light transmission, met on the surface of measured medium, some of its energy is reflected back, by the same antenna.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium. The product can cooperate with RK600-01 data logger or general recording instrument is used .
FEATURES
- Small beam Angle, the energy concentration, strong anti-interference,high accuracy and reliability
- Range of up to 70 meters, covering large reservoir and other water level measurement
- Good stability
- Multiple output signal is optional
- Transmitted power is extremely low, no harm to human body and environment
- Easy Installation
APPLICATIONS
- River water level measurement
- Lake water level measurement
- Shallow water level measurement
- Hydrographic survey
- Environmental protection
SPECIFICATIO N
|
Item |
Technical specifications |
|
Range |
10m,30m,50m,70m |
|
Output |
4-20mA , RS485 (MODBUS-RTU) |
|
Supply Voltage |
1 2VDC , 24VDC,220 VAC |
|
Process connection |
Range <3 0m : 6.8GHz , Range >3 0m/ <7 0m :26GHz |
|
Working frequency |
26GHz |
|
Accuracy |
±3mm |
|
Display |
128*64LCD display resolution:1mm |
|
Ingress Protection |
IP67 |
|
Medium temperature |
-40~+150℃ |
|
Medium pressure |
-100~100kPa |
|
Operating Temperature |
-40℃~ +85℃ |
|
Housing material |
Aluminum alloy |
|
Antenna material |
304ss |
|
Shock |
10m/s²@10~150Hz |
RIKA RKL-02 Good Stability Range to 70M Multiple Output Level Monitoring Sensor Radar Water Liquid Level Transmitter
RIKA RKL-02 Good Stability Range to 70M Multiple Output Level Monitoring Sensor Radar Water Liquid Level Transmitter
RIKA RKL-02 Good Stability Range to 70M Multiple Output Level Monitoring Sensor Radar Water Liquid Level Transmitter
RIKA RK
RIKA RKL-02 Good Stability Range to 70M Multiple Output Level Monitoring Sensor Radar Water Liquid Level Transmitter
In order to recommend proper products to you, please tell me your information below:
1. What’s your testing medium ?
-- water, waste water, oil, alcohol or dust.
2. What’s your medium temperature ? -- The standard is -40℃~ +150℃. If special demands, please specify.
3. Is there any pressure in the testing medium ? -- If yes, please specify the estimated pressure.
4. What’s your testing range ? -- It is 30m or 70m optional with different price.
5. What’s your required output signal ? -- It is 4-20mA or RS485 optional.
6. What’s your required power supply ? -- The standard is 24V. If you have other special demands, please specify.
7. What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
8. What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
9. Do you need LCD Display ? -- optional with different price.
10. Quantity?
11. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
12. Your complete company name,address, post code,contact person, tel, fax etc.
