Quick Details
-
Warranty:
-
1000 hours or 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-P120GF
-
Speed:
-
1800RPM
-
Manufacturer:
-
Sutech Power
-
Engine:
-
With perkins engine 1106A-70TG1
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Controller:
-
Deepsea/Smartgen/etc
-
Rated Power:
-
120 KW 150 KVA
-
Noise level:
-
75dB @ 7 Meters
-
Fuel tank capacity:
-
8 Hours Working
-
Type:
-
Open/Silent/Mobile
-
Key words:
-
120 kw 150 kva perkins diesel generator set
-
Certification:
-
CE/ISO9001/ISO14001
Quick Details
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
219
-
Frequency:
-
60HZ
-
Warranty:
-
1000 hours or 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-P120GF
-
Speed:
-
1800RPM
-
Manufacturer:
-
Sutech Power
-
Engine:
-
With perkins engine 1106A-70TG1
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Controller:
-
Deepsea/Smartgen/etc
-
Rated Power:
-
120 KW 150 KVA
-
Noise level:
-
75dB @ 7 Meters
-
Fuel tank capacity:
-
8 Hours Working
-
Type:
-
Open/Silent/Mobile
-
Key words:
-
120 kw 150 kva perkins diesel generator set
-
Certification:
-
CE/ISO9001/ISO14001
Sutech Cooperated Partner

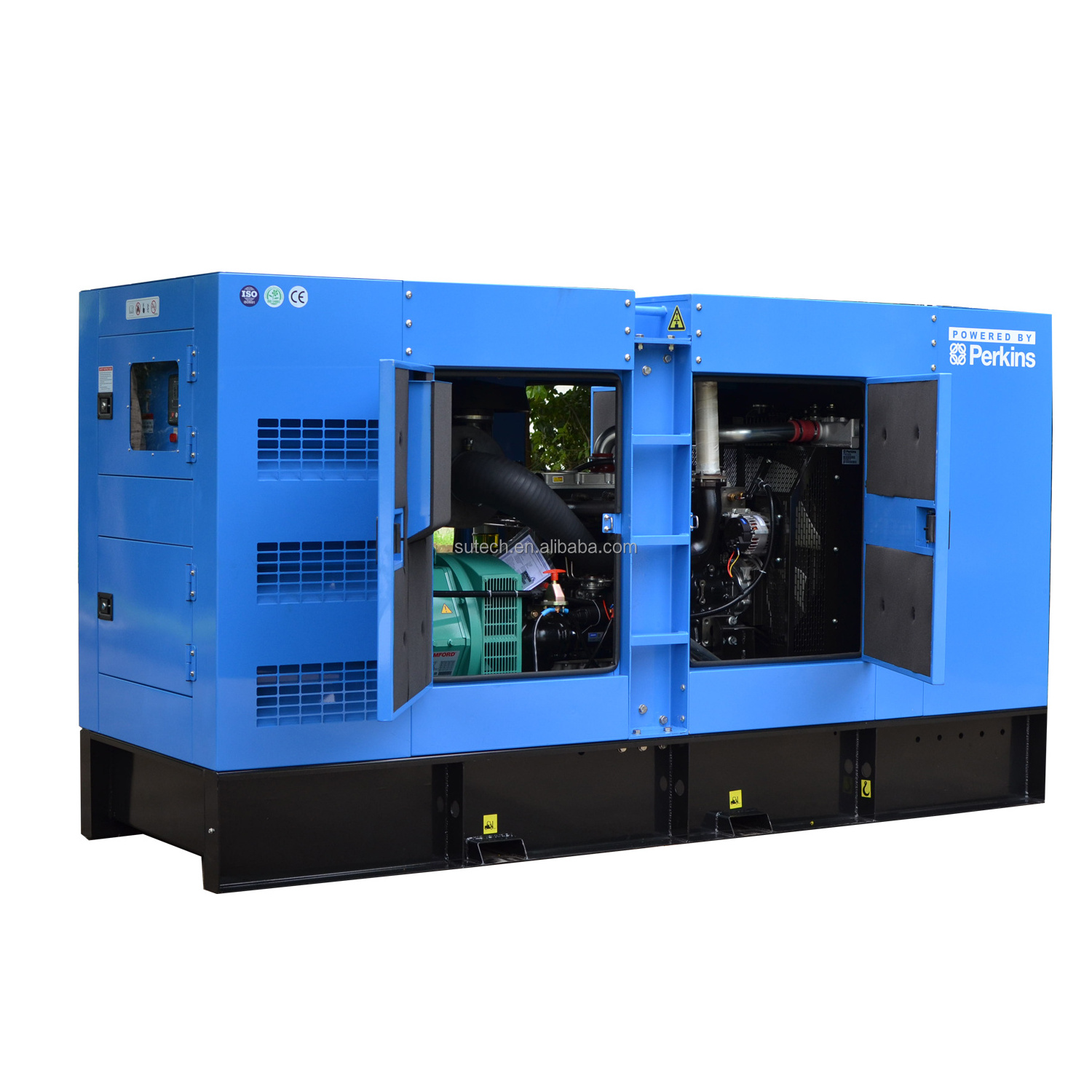

Soundproof 121.5KW 152KVA electric diesel Generator With UK engine 1106A-70TG1
Sutech Power Diesel generator sets with optional type
Below Engine brands, Alternator brands and Control pa nel for your optional F
| Rated power | Engine | Alternator | Control panel |
| 20 kw~1300kw | Cummins |
Stamford
Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea
ComAp Harsen Smartgen |
| 8kw~1640kw | Perkins | ||
| 68kw~504kw | Volvo | ||
| 20 kw~500kw | Deutz | ||
| 220 kw-2400kw | MTU | ||
| 280kw-800kw | MAN | ||
| 640kw-1800kw | Mitsubishi | ||
| 50kw-650kw | Doosan | ||
| 2kw~2500kw | Chinese engine |
Sutech power generator 120 KW 150 KVA diesel generators with Perkins engine for greenhouse
Perkins Engine Parameters
|
Engine Model |
1106A-70TG1 |
|
Number of Cylinders |
6 cylinders |
|
Cylinders arrangement |
Vertical in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged |
|
Bore×Stroke |
105mm x135mm |
|
Displacement |
7.01L |
|
Compression ratio |
18.2:1 |
|
Prime Power/Speed |
141KW/1800rpm |
|
Standby Power/Speed |
155KW/1800rpm |
|
Speed Governor |
ECM |
|
Cooling System |
Forced water cooling cycle |
|
Steady speed droop |
≤1% |
|
Fuel consumption at 100% load |
210.9g/kwh |
|
Starter Motor |
DC12V |
|
Alternator |
DC12V |
Alternator Parameters
|
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
|
Prime power |
152kva |
|
Frequency/speed |
60Hz/1800rpm |
|
Exciter type |
Single bearing, Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
Controller Panel
|
Brand |
Deepsea/ComAp/SmartGen |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater
Lube oil heater Electronic governor Engine oil temperature |
External Tank
Water Separator |
50-60 Radiator,
Remote radiator Cooling tower |
Heavy Duty air filter
Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation
Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel
Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |
Rainproof Type
Soundproof Type Containerized Type Trailer Type Spare Parts |
400/230V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
Sutech power generator 120 KW 150 KVA diesel generators with Perkins engine for greenhouse
You can Choose o pen type
You can choose soundproof silent type
You can choose trailer mobile type
Product details
Our advantages
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
