Quick Details
-
Shape:
-
cylindrical
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
f25mm, F2.8-F16, 1.1", 12MP Lens
-
Focal length:
-
25mm
-
Aperture:
-
F2.8-F16
-
Image Circle:
-
17.6mm (1.1")
-
OP-Distortion:
-
0.40%
-
M.O.D:
-
0.12m
-
Mount:
-
C-Mount
-
Key words:
-
FA lens
-
Application:
-
For industrial cameras
-
Type:
-
Fixed focus lens
Quick Details
-
Material:
-
Glass
-
Usage:
-
Optical
-
Structure:
-
Plano-convex
-
Shape:
-
cylindrical
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
f25mm, F2.8-F16, 1.1", 12MP Lens
-
Focal length:
-
25mm
-
Aperture:
-
F2.8-F16
-
Image Circle:
-
17.6mm (1.1")
-
OP-Distortion:
-
0.40%
-
M.O.D:
-
0.12m
-
Mount:
-
C-Mount
-
Key words:
-
FA lens
-
Application:
-
For industrial cameras
-
Type:
-
Fixed focus lens

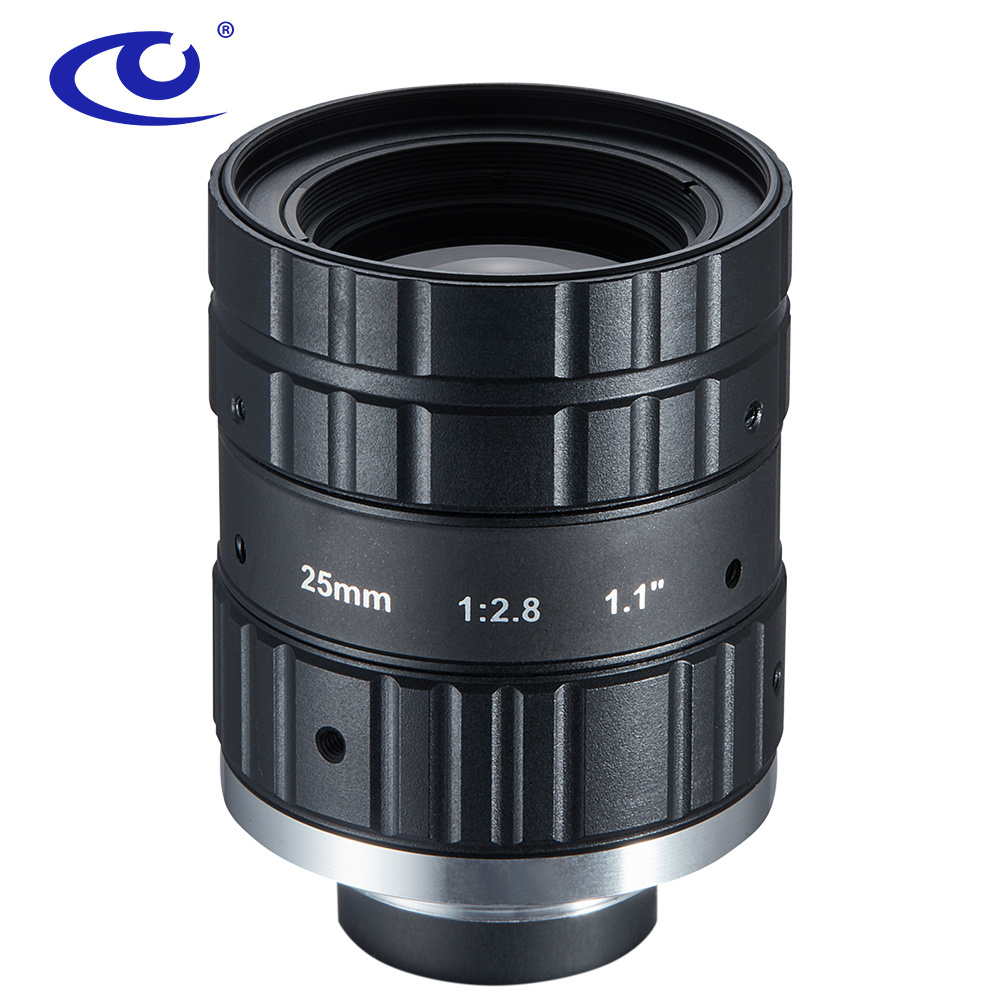

HC-C2528M-12MP 12MP high-speed intelligent c-mount high cost performance f25mm camera lens
Line-up
|
Model No . |
EFL (mm) |
F No. |
Distortion |
FOV |
M.O.D (m) |
Filter Size |
||
|
D |
H |
V |
||||||
|
HC-C1228M-12MP |
12 |
F2.8-F16 |
-1.79% |
70.5° |
59.8° |
46.2° |
0.1 |
~ |
|
HC-C1628M-12MP |
16 |
F2.8-F16 |
-1.30% |
54.8° |
44.9° |
33.9° |
0.08 |
M35.5*0.5 |
|
HC-C2528M-12MP |
25 |
F2.8-F16 |
0.40% |
36.7° |
29.6° |
22.1° |
0.12 |
M35.5*0.5 |
|
HC-C3528M-12MP |
35 |
F2.8-F16 |
-0.21% |
26.7° |
21.4° |
15.9° |
0.18 |
M35.5*0.5 |
|
HC-C5028M-12MP |
50 |
F2.8-F16 |
-0.05% |
18.9° |
15.1° |
11.2° |
0.28 |
M35.5*0.5 |
Features
- Ultra high resolution, support minimum pixel size of 3.45 μm.
- Ultra compact shape with excellent anti-vibrant ability and high and low temperature performance.
- F2.8, maximum image circle of 1.1'', support 2MP(1/1.2''), 5MP(1''), 12MP(1.1'') and 2K line scan cameras.
- Low distortion.
- Support ultra short working distance, maintain good optical performance in the whole area.
- Special optimization for machine vision light source and sensors.
- Surface multilayer coating, assure the high pass rate of visible light band and near-infrared band.
- Full range production, with focal length from 6 to 50 mm.
| Model No. | HC-C2528M-12MP |
| Type | f25mm, F2.8-F16, 1.1”, 12MP Lens |
| Focal Length | 25mm |
| Aperture | F2.8-F16 |
| Image Circle | Φ17.6mm (1.1") |
| OP-Distortion | 0.40% |
| Field of View | D: 36.7° H: 29.6° V: 22.1° |
| M.O.D | 0.12m |
| Flange Back Length | 17.526mm |
| Filter Thread | M35.5*0.5 |
| Interface | C-Mount |
| Dimension | Φ38.6*44.01mm |
Dimension
