Each charger in one carton.
Carton Size:32*16*18cm
Gross Weight:2.5kg
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
CC-CV
-
Model Number:
-
MAS-Charger-3600W
-
Input voltage and current:
-
110V/32A, 220V/16A, 380V/8A
-
output voltage and current:
-
12V/100A, 24V/100A, 36V/80A, 48V/60A,, 60V/50A, 72V/42A, 84V/35A, 96V/32A
-
Maximum Output Power:
-
3600W
-
Place of Origin:
-
guangdong
-
Waterproof:
-
IPx4
-
Max efficiency:
-
> ≥93%
-
Noise:
-
<40dB
-
Size:
-
320*176*110mm
-
Weight:
-
5.3kg
Quick Details
-
Type:
-
Electric, Power Supply Adapter, Universal Adapter, CAR CHARGER, High Power Battery Charger
-
Port:
-
DC
-
Material:
-
Aluminium Casting
-
Function:
-
CC-CV
-
Model Number:
-
MAS-Charger-3600W
-
Input voltage and current:
-
110V/32A, 220V/16A, 380V/8A
-
output voltage and current:
-
12V/100A, 24V/100A, 36V/80A, 48V/60A,, 60V/50A, 72V/42A, 84V/35A, 96V/32A
-
Maximum Output Power:
-
3600W
-
Place of Origin:
-
guangdong
-
Waterproof:
-
IPx4
-
Max efficiency:
-
> ≥93%
-
Noise:
-
<40dB
-
Size:
-
320*176*110mm
-
Weight:
-
5.3kg

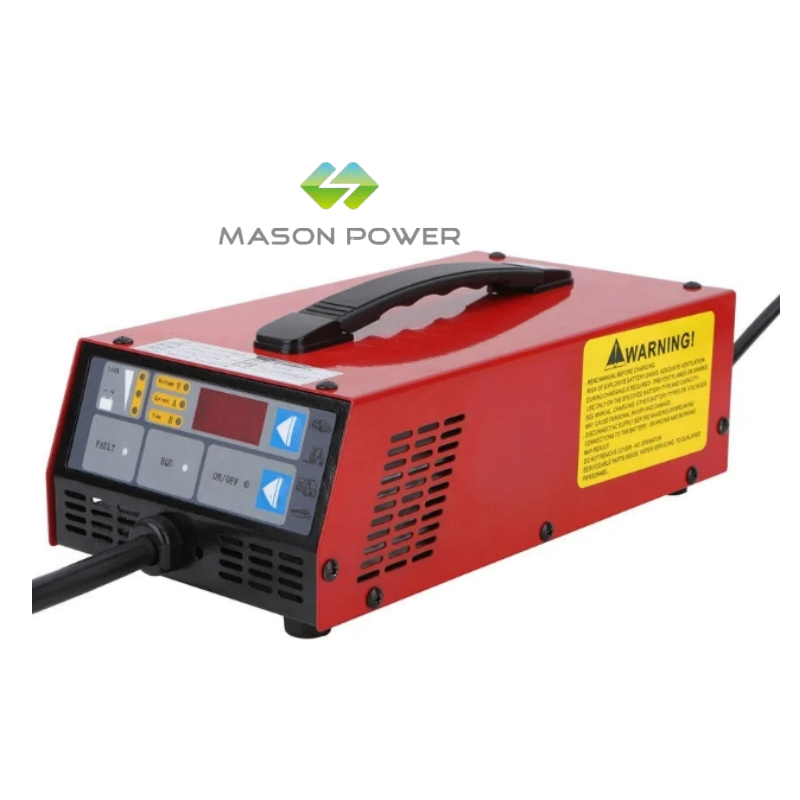

Product Description
|
Model:
|
MAS-Charger-3600W
|
Max Power:
|
3600W
|
||
|
Shell:
|
Iron
|
Size:
|
320*176*110mm
|
||
|
AC Input:
|
185V-265V, 380V/40-70Hz
|
Waterproof:
|
IPx4
|
||
|
Max Efficiency:
|
≥93%
|
Operating Temperature:
|
-30 to 65℃
|
||
|
Storage Temperature:
|
-40 to 95℃
|
Noise:
|
≤40dB
|
||
|
Communication Function:
|
CAN, 485
|
12V Supply Power:
|
Optional
|
||
|
Cooling:
|
Active cooling with fan, nature cooling
|
|
|
||
|
Protection:
|
Input low-voltage & over-voltage protection
Overheat protection Output empty-load protection Output short / reverse protection Output over-current / over-voltage protection Automatic shutdown when fully charged |
|
|
||
|
Common Output (Examples for Lead Acid Battery @220Vac)
|
|
|
|
|||
|
Example
|
Rated Output Voltage
|
Max Output Voltage
|
Max Output Current
|
|||
|
12V100A
|
12V
|
17V
|
100A
|
|||
|
24V100A
|
24V
|
34V
|
100A
|
|||
|
36V80A
|
36V
|
51V
|
80A
|
|||
|
48V60A
|
48V
|
68V
|
60A
|
|||
|
60V50A
|
60V
|
85V
|
50A
|
|||
|
72V42A
|
72V
|
102V
|
42A
|
|||
|
84V35A
|
84V
|
118V
|
35A
|
|||
|
96V32A
|
96V
|
135V
|
32A
|
|||
|
LED Indicator (Examples for Lithium Battery Charger)
|
|
|
|
1. LED is green
|
The charger is ready to charge or charging is completed
|
|
|
2. LED green light is blinking
|
The charger is charging
|
|
|
3. LED red light is blinking quickly
|
Input power failure
|
|
|
4. LED red and green light is blinking alternately
|
The output is short-circuited or connection is reversed
|
|
|
5. LED red light blinks 2 times, then blinks 2 times again after 1 second
|
The charger temperature overheating alarm
|
|
|
6. LED red light blinks 3 times, then blinks 3 times again after 1 second
|
The output over-current alarm
|
|
|
7. LED red light blinks 4 times, then blinks 4 times again after 1 second
|
The output over-voltage alarm
|
|
|
Customized Options
|
|
|
|
AC Plug:
|
Global options, e.g. US, EU, AU, UK, etc
|
|
|
AC Wire:
|
Customized length and different plugs available
|
|
|
DC Connector:
|
You can choose suitable DC connector for your device
|
|
|
DC Wire:
|
You can customize different length and gauge
|
|
|
Output:
|
Customized length and different plugs available
|
|
|
Label:
|
Label or logo acceptable
|
|
AC Cable and Connector
You can customize the AC cable.There are more options than those connectors in the picture.
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
size:3*1mm²/3*1.31mm²/3*1.5mm²....
DC Cable and Connectors
Same as AC cable, you can customize the DC cable.There are more options than those connectors in the picture.
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
