Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
CHUMPOWER
-
Model Number:
-
420
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
760*400*1370mm
-
Power (kW):
-
0.75/1.5
-
Weight (KG):
-
114 KG
-
Marketing Type:
-
Other
-
Product name:
-

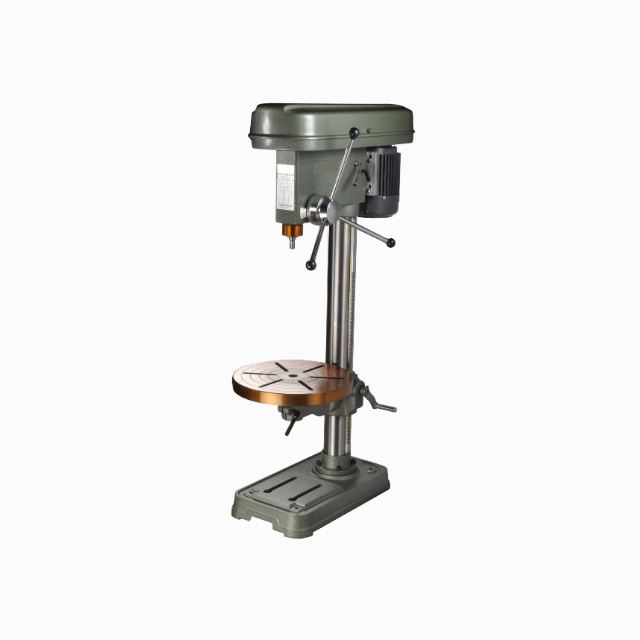

Bench Drilling Machine
-
Application:
-
Metal Processing
-
Keyword:
-
Bench Drilling Press Machine
-
Model:
-
420
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
25mm
-
Range of Spindle Speed(r.p.m):
-
550 - 3000 r.p.m
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
CHUMPOWER
-
Model Number:
-
420
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
760*400*1370mm
-
Power (kW):
-
0.75/1.5
-
Weight (KG):
-
114 KG
-
Marketing Type:
-
Other
-
Product name:
-
Bench Drilling Machine
-
Application:
-
Metal Processing
-
Keyword:
-
Bench Drilling Press Machine
-
Model:
-
420
Product Description
Specification
|
item
|
value
|
|
Center Of Spindle To Column
|
220mm
|
|
Spindle Travel - Drilling
|
125mm
|
|
Taper of Spindle Nose
|
M.T.NO.3
|
|
Max, Distance Spindle To Table-Round
|
580mm
|
|
Max, Distance Spindle To Table-Circle
|
625mm
|
|
Max, Distance Spindle To Base
|
830mm
|
|
Table Diameter-Round
|
Ψ400 mm
|
|
Table Diameter-Squard
|
315*300 mm
|
|
Dia Of Colume
|
92mm
|
|
Spindle Spaads R.P.M - 50HZ
|
150-280-295-410-570
500-1035-1140-1610
|
|
Spindle Spaads R.P.M - 60HZ
|
180-330-350-480-570
600-1250-1400-2000
|
|
Drilling Capacity
|
19mm / 25 mm
|
|
Machine Height ( L* W * H )
|
760*400*1370 mm
|
|
Machine Weight(Included Motor)
|
114 kgs
|
