Quick Details
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
140 mm
-
Dimension:
-
2500 x1600 x2400mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AMUDA
-
Year:
-
2022
-
Weight (KG):
-
6000
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2022
-
Control system::
-
DELEM DA53T
-
Model:
-
160T2500
-
Electrical Components::
-
Schneider from France
-
Color:
-
Optional
-
Usage:
-
Metal Sheet Bending
-
Control Axes:
-
4 axis + crowning
-
Certification:
-
CE ISO SONCAP
-
Main Motor:
-
Siemens from Germany
-
Lead Time:
-
15 days
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
Quick Details
-
Machine Type:
-
Hydraulic Synchronized
-
Length of Working Table (mm):
-
2500
-
Slider Stroke (mm):
-
120 mm
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
140 mm
-
Dimension:
-
2500 x1600 x2400mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AMUDA
-
Year:
-
2022
-
Weight (KG):
-
6000
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2022
-
Control system::
-
DELEM DA53T
-
Model:
-
160T2500
-
Electrical Components::
-
Schneider from France
-
Color:
-
Optional
-
Usage:
-
Metal Sheet Bending
-
Control Axes:
-
4 axis + crowning
-
Certification:
-
CE ISO SONCAP
-
Main Motor:
-
Siemens from Germany
-
Lead Time:
-
15 days
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
Products Description

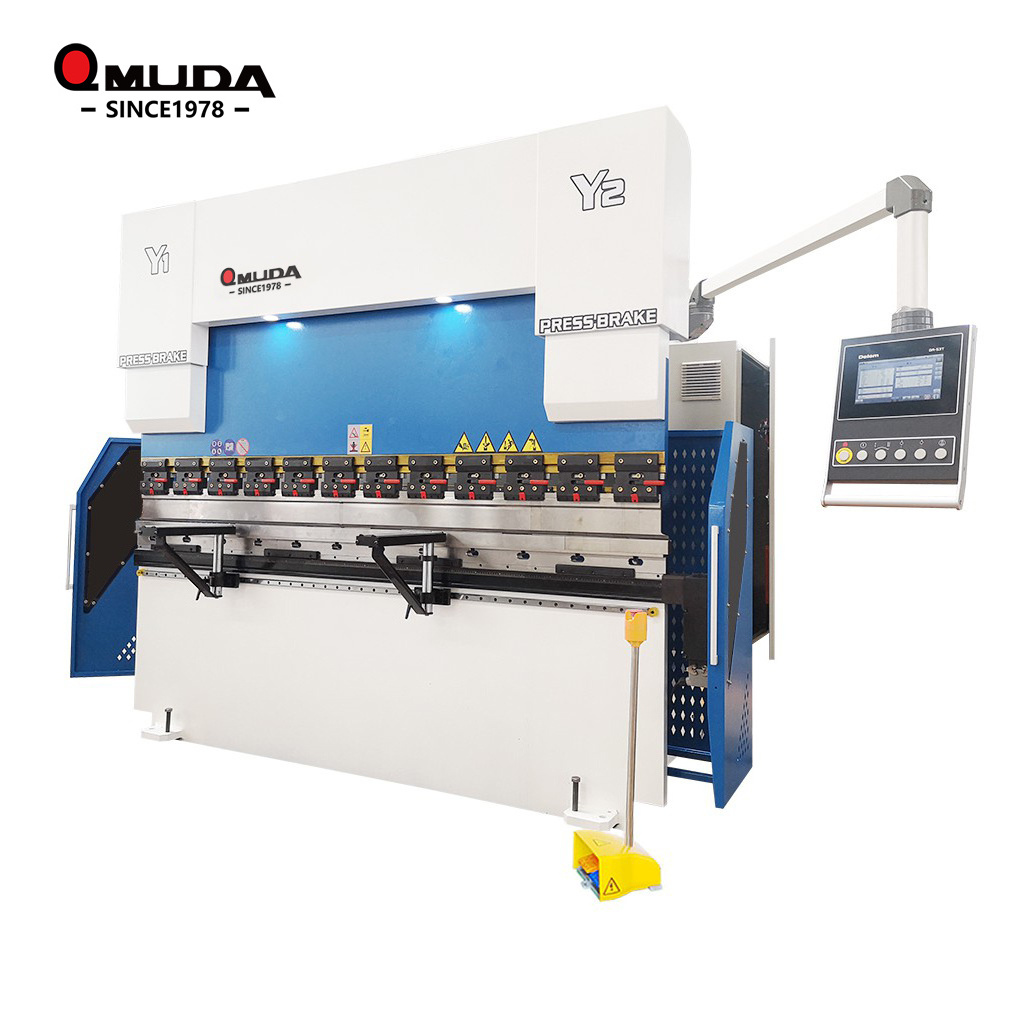

AMUDA®EH2020 Series Electric-hydarulic Synchronous CNC Press Brake
AMUDA® EH2020 Series Press Brake is a new CNC bending machine launched by AMUDA Group in 2020, and is suitable for manufacturers with high precision and cost performance requirements. AMUDA® 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.
Stable and durable performance of the machine body
1, The machine frame integrated welding.
2, The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
3, Internal stress lamination by tempering Shot blast to
remove rust and anti-rust treatment.
4,Shot blast to remove rust and anti-rust treatment.
3, Internal stress lamination by tempering Shot blast to
remove rust and anti-rust treatment.
4,Shot blast to remove rust and anti-rust treatment.
Scientific design
1, Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
2, Possibility to add options and upgrades on
the configuration, at later stage.
the configuration, at later stage.
Environmental friendly
low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
Energy consumption lower than general machine by 60% by using servo motor.
low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
Energy consumption lower than general machine by 60% by using servo motor.
Technical Parameters
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Poles distance
(mm) |
Throat depth
(mm) |
Slider stroke
(mm) |
Max height
(mm) |
Power
(kw) |
Weight
(kg) |
Demension (mm)
|
|||||||
|
63T/2500
|
1900
|
250
|
100
|
320
|
5.5
|
4000
|
2500x1300x2210
|
|||||||
|
63T/3200
|
2560
|
250
|
100
|
320
|
5.5
|
4800
|
3200x1300x2210
|
|||||||
|
80T/2500
|
1990
|
300
|
100
|
320
|
7.5
|
5000
|
2500x1400x2300
|
|||||||
|
80T/3200
|
2560
|
320
|
100
|
350
|
7.5
|
6000
|
3200x1500x2300
|
|||||||
|
80T/4000
|
3200
|
320
|
100
|
350
|
7.5
|
7000
|
4000x1500x2400
|
|||||||
|
100T/2500
|
1990
|
320
|
120
|
350
|
7.5
|
6000
|
2500x1600x2400
|
|||||||
|
100T/3200
|
2600
|
320
|
120
|
400
|
7.5
|
6800
|
3200x1600x2600
|
|||||||
|
100T/4000
|
3200
|
320
|
120
|
400
|
7.5
|
8000
|
4000x1600x2600
|
|||||||
|
125T/3200
|
2600
|
320
|
120
|
400
|
7.5
|
7000
|
3200x1600x2600
|
|||||||
|
125T/4000
|
3200
|
320
|
120
|
400
|
7.5
|
8500
|
4000x1600x2600
|
|||||||
|
160T/3200
|
2580
|
320
|
120
|
460
|
11
|
10000
|
3200x1700x2700
|
|||||||
|
160T/4000
|
2900
|
320
|
160
|
460
|
11
|
11000
|
4000x1700x2800
|
|||||||
Control System
Amuda CNC bending machine can be equipped with various control systems.
Our high-efficiency backgauge system provides our customers with different automation solutions.
2 AXIS BACK GAUGE (X,R)
4 AXIS BACK GAUGE (X,R,Z1,Z2)
6 AXIS BACK GAUGE (X1,X2,R1,R2,Z1,Z2)
Machine display
DELEM DA53T Controller System :
1. Quick, one page programming;
2. Hotkey navigation;
3. 7" widescreen colour TFT;
4. Up to 4 axis (Y1, Y2, and 2 auxiliary axes);
5. Workbench deflection compensation control;
6. USB peripheral interface;
7. Advanced Y-axis control algorithm, which can control both closed-loop and open-loop valves;
8. Panel mounting structure, optional suspension box.
9. Full touch screen.
High Efficient Working Table
1, You can use the whole bending length as there are no interference contours.
2, CNC customized mold
3, Quick clip:fast tool changes thanks to vertical set up，to reduce your set up times.
4,Supporting arms: The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
5.Hydraulic Valve (Rexroth from Germany)
6, GIVI Grating ruler(from Italy): precise positioning stroke travel
7, Automatic Crowning System: To give more accurate bending angle
8, Laser safe
High efficient and powerful back gauge
1, Servo motor drive back gauge:
Servo drive back gauge system to increase speed.and energy saving.
2, The ball screw and linear guide
Dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
3, Double linear guides and integrated support beam to improve finger movement accuracy.
International Brand Endorses
Main Configuration
|
Main motor
|
Siemens, Germany
|
|
Electrics
|
Schneider, France
|
|
Hydraulic valve
|
Rexroth, Germany
|
|
Oil Pump
|
Sunny, U.S.A
|
|
Seal ring
|
EMB, Germany
|
|
Controller
|
DELEM DA66T
|
|
Foot switch
|
Sanyuan HongKong
|
|
Cylinder
|
Jining Taifeng, Shandong
|
|
The ball screw and linear guide
|
HIWIN, Taiwan
|
|
Servo driver
|
DELTA, Taiwan
|
|
Grating ruler
|
GIVI, Italy
|
Safety & Reliability
All components are certified in accordance with European standards，mainly from Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 (+ N) is used.
Workbench protection
Laser protection: The blade stops when obstacle detected by laser.
Laser protection: The blade stops when obstacle detected by laser.
Mechanical back
Light curtain protection or Point protection or safety fence, to warn people the dangerous working areas.
Light curtain protection or Point protection or safety fence, to warn people the dangerous working areas.
Worktable sides
Safety Fence to prevent people from careless entry.
Safety Fence to prevent people from careless entry.
