Quick Details
-
Year:
-
2021
-
Brand Name:
-
Guanyu
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
50
-
Product name:
-

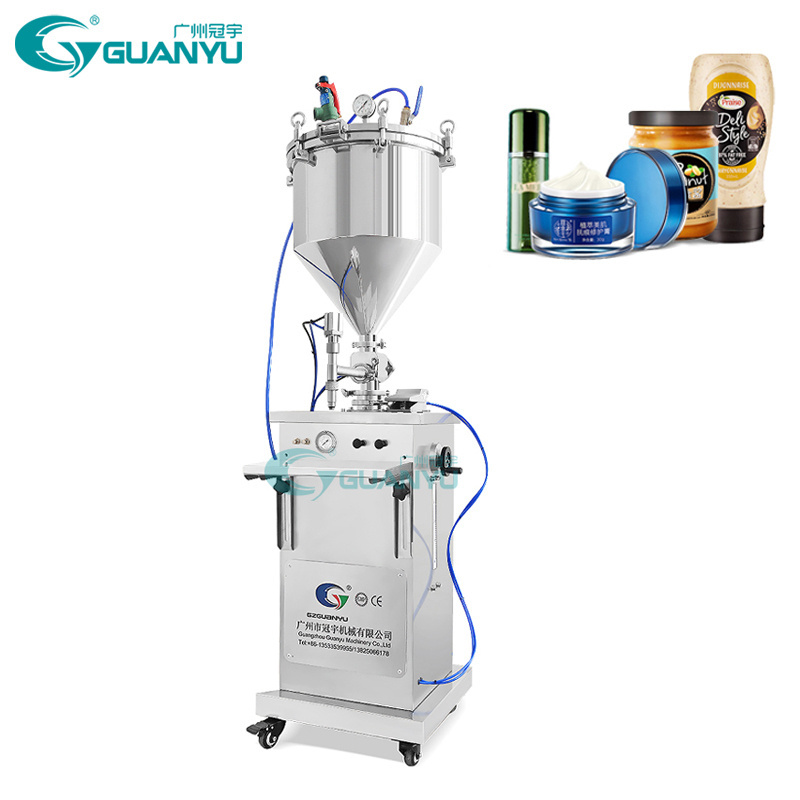

Eyelash Cream Filling Machine
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
304/316L stainless steel
-
Control system:
-
PLC/Button Control
-
Voltage:
-
220V/380V 50HZ Customized
-
Function:
-
Semi Automatic Quick Filling
-
Filling volume:
-
30-300ml
-
Type:
-
Filling Machine
Quick Details
-
Production Capacity:
-
0-60 bottles/minute
-
Application:
-
cosmetic cream/paste, chemical liquid, Chemical
-
Place of Origin:
-
Guangdong, China
-
Year:
-
2021
-
Brand Name:
-
Guanyu
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
50
-
Product name:
-
Eyelash Cream Filling Machine
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
304/316L stainless steel
-
Control system:
-
PLC/Button Control
-
Voltage:
-
220V/380V 50HZ Customized
-
Function:
-
Semi Automatic Quick Filling
-
Filling volume:
-
30-300ml
-
Type:
-
Filling Machine
* The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
* The aluminum prominent imported parts and outstanding mechanical design ensure its leading position among other similar machines in China.
* The machine is light and convenient with brand new horizontal design and automatic material drawing, removing the trouble of frequent feeding of the vertical material hopper.
* Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling. If the pedal is always stepped on without releasing, the machine will change into the automatic continuous filling status.
* The machine cylinder and tee parts adopt handcuffs type connection, which can be conveniently disassembled and assembled without the need of using any special tools. Therefore, the cleaning is very convenient.
* Leakage proof filling system. During the filling, the cylinder makes upward and downward movements to drive the closure head. When the cylinder moves downwards, the closure head will move downward, the valve will be opened and system starts to fill the materials. When the cylinder moves ipwards, the closure head will move upward, the valve will be closed and the filling will be stopped, so that leakage and wire drawing are prevented.
* The aluminum prominent imported parts and outstanding mechanical design ensure its leading position among other similar machines in China.
* The machine is light and convenient with brand new horizontal design and automatic material drawing, removing the trouble of frequent feeding of the vertical material hopper.
* Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling. If the pedal is always stepped on without releasing, the machine will change into the automatic continuous filling status.
* The machine cylinder and tee parts adopt handcuffs type connection, which can be conveniently disassembled and assembled without the need of using any special tools. Therefore, the cleaning is very convenient.
* Leakage proof filling system. During the filling, the cylinder makes upward and downward movements to drive the closure head. When the cylinder moves downwards, the closure head will move downward, the valve will be opened and system starts to fill the materials. When the cylinder moves ipwards, the closure head will move upward, the valve will be closed and the filling will be stopped, so that leakage and wire drawing are prevented.
|
Model
|
Filling Volume
|
Air Consumption
|
Net Weight
|
Dimensions(cm)
|
|
GY-15
|
5-70ml
|
23L/min
|
11Kg
|
92*28*40
|
|
GY-25
|
20-250ml
|
30L/min
|
25Kg
|
102*30*40
|
|
GY-50
|
50-500ml
|
44L/min
|
28Kg
|
108*32*41
|
|
GY-100
|
100-1000ml
|
87L/min
|
36Kg
|
128*36*41
|
|
GY-250
|
250-2500ml
|
160L/min
|
60Kg
|
130*60*51
|
|
GY-500
|
500-5000ml
|
300L/min
|
75Kg
|
130*60*51
|
