Quick Details
-
Brand Name:
-
SINOTRUK HOWO
-
Market Segement:
-
Hazardous chemicals transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support, Free spare parts
-
Gear Box Brand:
-
HW19710
-
Size:
-
6800mm*2496mm*3300mm
-
Product name:
-
Tractor head
-
Dimesion:
-
6800mm*2496mm*3300mm
-
Tire number:
-
10
-
Material:
-
Steel
-
Max. speed:
-
90 km/h
-
Steering wheel:
-
LHD
-
Fuel tank:
-
400L aluminum oil tank, diesel fuel type
-
Tire:
-
12.00 R20
-
Engine:
-
WD615.69 engine
-
Keywords:
-
Tractor head
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2(Optional)
-
Brand Name:
-
SINOTRUK HOWO
-
Market Segement:
-
Hazardous chemicals transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support, Free spare parts
-
Gear Box Brand:
-
HW19710
-
Size:
-
6800mm*2496mm*3300mm
-
Product name:
-
Tractor head
-
Dimesion:
-
6800mm*2496mm*3300mm
-
Tire number:
-
10
-
Material:
-
Steel
-
Max. speed:
-
90 km/h
-
Steering wheel:
-
LHD
-
Fuel tank:
-
400L aluminum oil tank, diesel fuel type
-
Tire:
-
12.00 R20
-
Engine:
-
WD615.69 engine
-
Keywords:
-
Tractor head
The introduction of tractor head
Sinotruk howo 6x4 truck tractor can be customized different horsepower and driving wheels according to customers ’road conditions, transportation projects and loading weight requirements. In order to provide customers more choices, we offer 4 different schemes of tractor units for customers. Although used tractor truck sinotruk howo is used one,but the engine is in good condition.Our engineer inspect the used howo tractor truck personally before purchasing them from consumer.
The parameter of the dump truck head
|
Basic information |
|
|
Announcement type: |
ZZ4256V324HE1B |
|
Driving form: |
6X4 |
|
Wheelbase: |
3400+1400mm |
|
Engine: |
Sinotruk MC13.48-50 |
|
Transmission: |
Sinotruk HW25716XACL |
|
Body length: |
6.895 meters |
|
Body width: |
2.496 meters |
|
Body height: |
3.62m |
|
Front wheel base: |
2041mm |
|
Rear wheel base: |
1830/1830mm |
|
Vehicle weight: |
8.8 tons |
|
Total mass: |
25 tons |
|
Total traction mass: |
40 tons |
|
Maximum speed: |
101km/h |
|
Market segments: |
Logistics distribution |
|
Place of origin: |
Zhangqiu, Shandong province |
|
Tonnage class: |
Heavy truck |
|
Engine type: |
Sinotruk MC13.48-50 |
|
Number of cylinders: |
6 |
|
Type of fuel: |
Diesel oil |
|
Cylinder arrangement form: |
Straight line |
|
Displacement: |
12.419 L |
|
Emission standard: |
Five kingdoms |
|
Maximum horsepower: |
480hp |
|
Maximum output power: |
353kW |
|
Maximum torque: |
2300 n. m |
|
Maximum torque speed: |
1050-1400rpm |
|
Rated speed: |
1900rpm |
|
Cab: |
High top |
|
Number of permitted passengers: |
3 people |
|
Row of seats: |
Row half |
|
Transmission model: |
Sinotruk HW25716XACL |
|
Transmission brand: |
Sinotruk |
|
Forward gear: |
16th gear |
|
Tank capacity: |
860L |
|
Description of the front bridge: |
VPD75ES |
|
Rear axle description: |
MCY13BES |
|
Allowable load of front axle: |
7000kg |
|
Rear axle allowable load: |
18000(with double axle)kg |
|
Number of spring pieces: |
2/3,2/4,3/5,2/-/- |
|
Number of tires: |
10 |
|
Tire specifications: |
12R22.5,295/80R22.5 |
The details of the truck tractor head

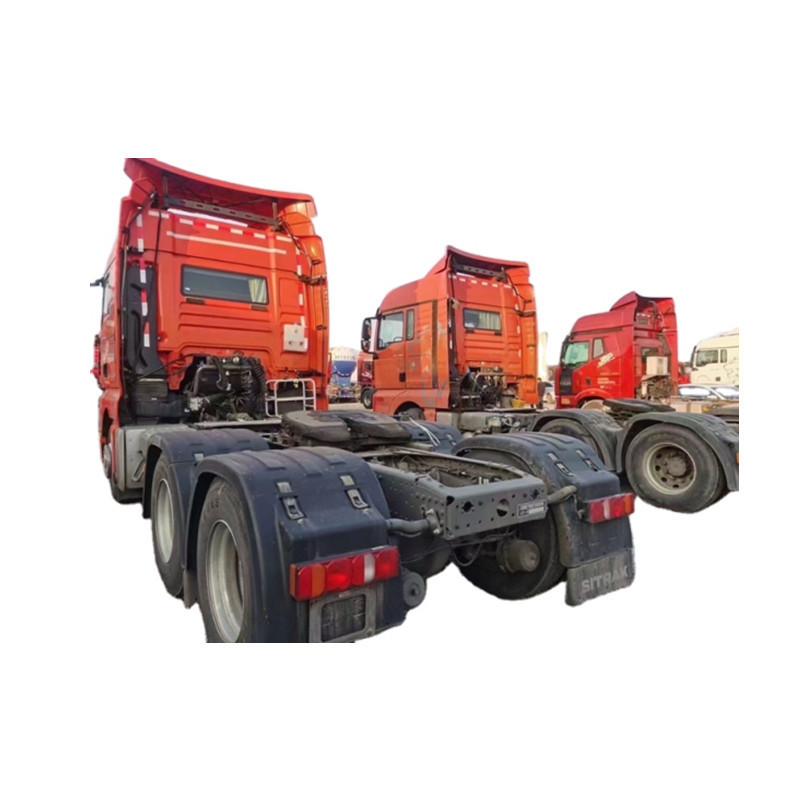

More photos of the truck head
Experienced Team choose the most suitable shipping method for different clients among the Containers, Roro and Bulk shipment, balance safety and economic cost.
Cooperate with well known shipping componies, such as MAERSK, NYK, and Wallenius, ensuring the transportation of each shipment.
