Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
1880
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Yishan
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
quanchai
-
Dimensions (L x W x H) (mm):
-
3550*2350*1700
-
Cargo Tank Dimension:
-
4.5
-
Engine:
-
Quanchai490
-
Engine type:
-
In-line, water-cooled, 4 cylinders ,Diesel Engine
-
Rated Power:
-
38KW
-
Bucket Capacity:
-
1.50 m3 /1400 L
-
Rated Loading Weight:
-
3000 kg
-
Operating Weight:
-
1880 kg
-
Tipping:
-
Hydraulic
-
Wheel base:
-
1360 mm
-
Tread:
-
1960 mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
1880
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Yishan
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
quanchai
-
Dimensions (L x W x H) (mm):
-
3550*2350*1700
-
Cargo Tank Dimension:
-
4.5
-
Engine:
-
Quanchai490
-
Engine type:
-
In-line, water-cooled, 4 cylinders ,Diesel Engine
-
Rated Power:
-
38KW
-
Bucket Capacity:
-
1.50 m3 /1400 L
-
Rated Loading Weight:
-
3000 kg
-
Operating Weight:
-
1880 kg
-
Tipping:
-
Hydraulic
-
Wheel base:
-
1360 mm
-
Tread:
-
1960 mm
|

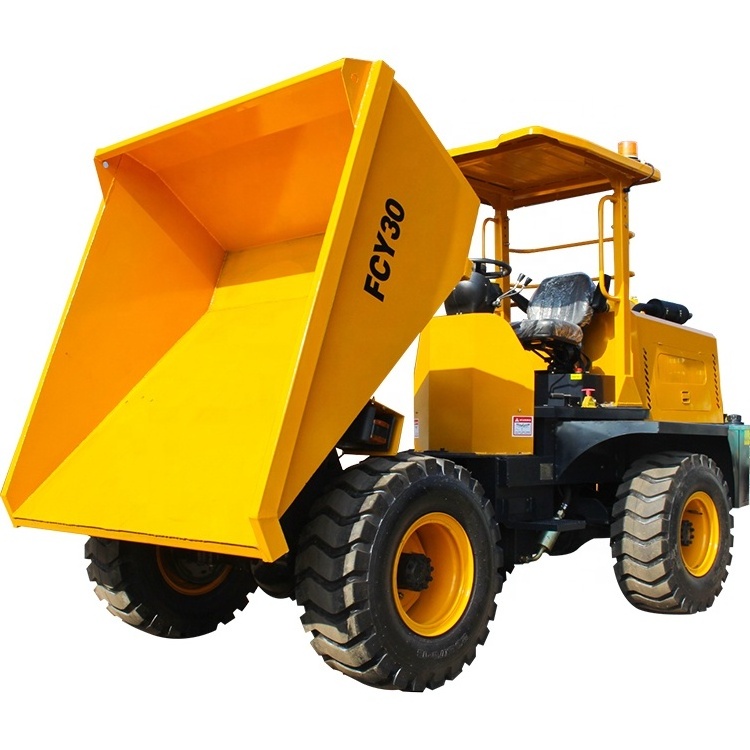

Site Dumper FCY30/S /R Technical Specifications |
||
|
Item |
Specifications |
|
|
Bucket capacity |
1.5m3 |
|
|
Rated load |
3000kg |
|
|
Operating weight |
2850kg |
|
|
Grade ability |
25º |
|
|
Min turning radius |
4000mm |
|
|
wheel tread/wheel base |
2050mm/1360mm |
|
|
Overall dimension |
"4250*1700*2650mm with canopy |
|
|
Engine |
Model |
490 |
|
|
Type |
in line\direct injection\water cooler\4 cylinders |
|
|
Rated power |
38kw |
|
|
Max torque |
2400r/min |
|
Transmission system |
Gearbox |
Gear transmission |
|
|
Clutch |
dry friction |
|
|
Nos of shifts |
move forward 2 back 2 |
|
|
Max speed |
24km/hr |
|
|
Rear and front axle |
4×4,front axle fixed, rear axle swing ( +/-11 0 ) |
|
Steering |
Type |
hydraulic steering |
|
|
Steering angle |
35 degrees on both sides |
|
Hydraulic system |
Pressure |
16MPA |
|
|
Brake type |
Drum brake |
|
Tyre |
Size |
20.5/70-16 |
|
Fuel capacity |
Fuel tank |
60L |
|
|
Hydraulic oil tank |
60L |
|
|
Optional work device |
Self-load |
|
|
Cab |
Optional |
